Flood Light Pole
High mast lights from 15 m to 30 m with fixed, ladder-access or internally lifting crowns carrying 3 to 18 floodlights, and floodlight poles with crossbar or platform mounted floodlights. Steel Q235 or Q355, hot-dip galvanised, supplied with the base plate, the anchor bolts and the foundation drawing.
20 products
Flood Light Poles
High mast and floodlight poles from 15 m to 30 m, in Q235 or Q355 steel, hot-dip galvanised and supplied with the base plate, the anchor bolts and the foundation drawing.

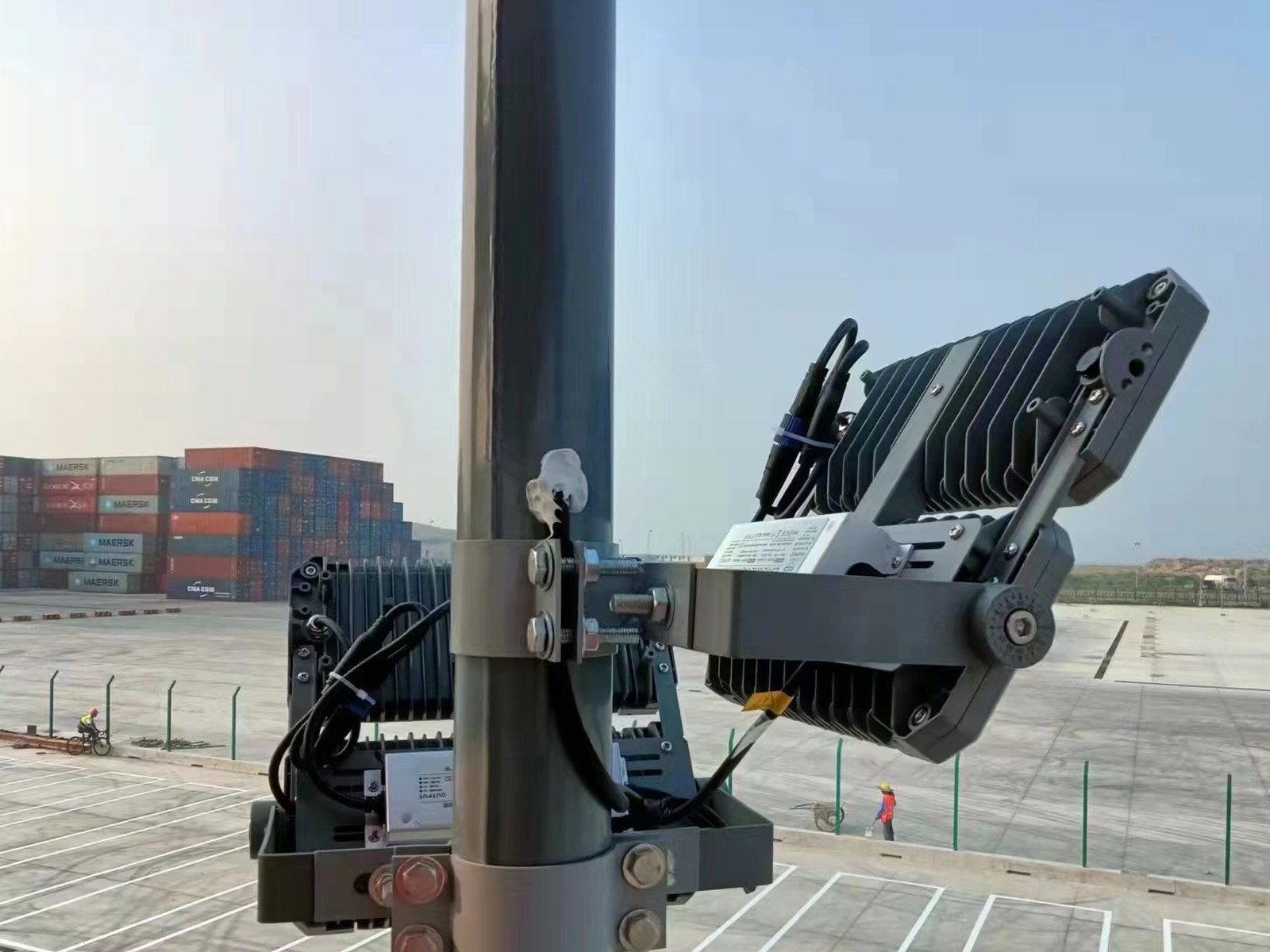

A Pole Built Around the Floodlight Bracket

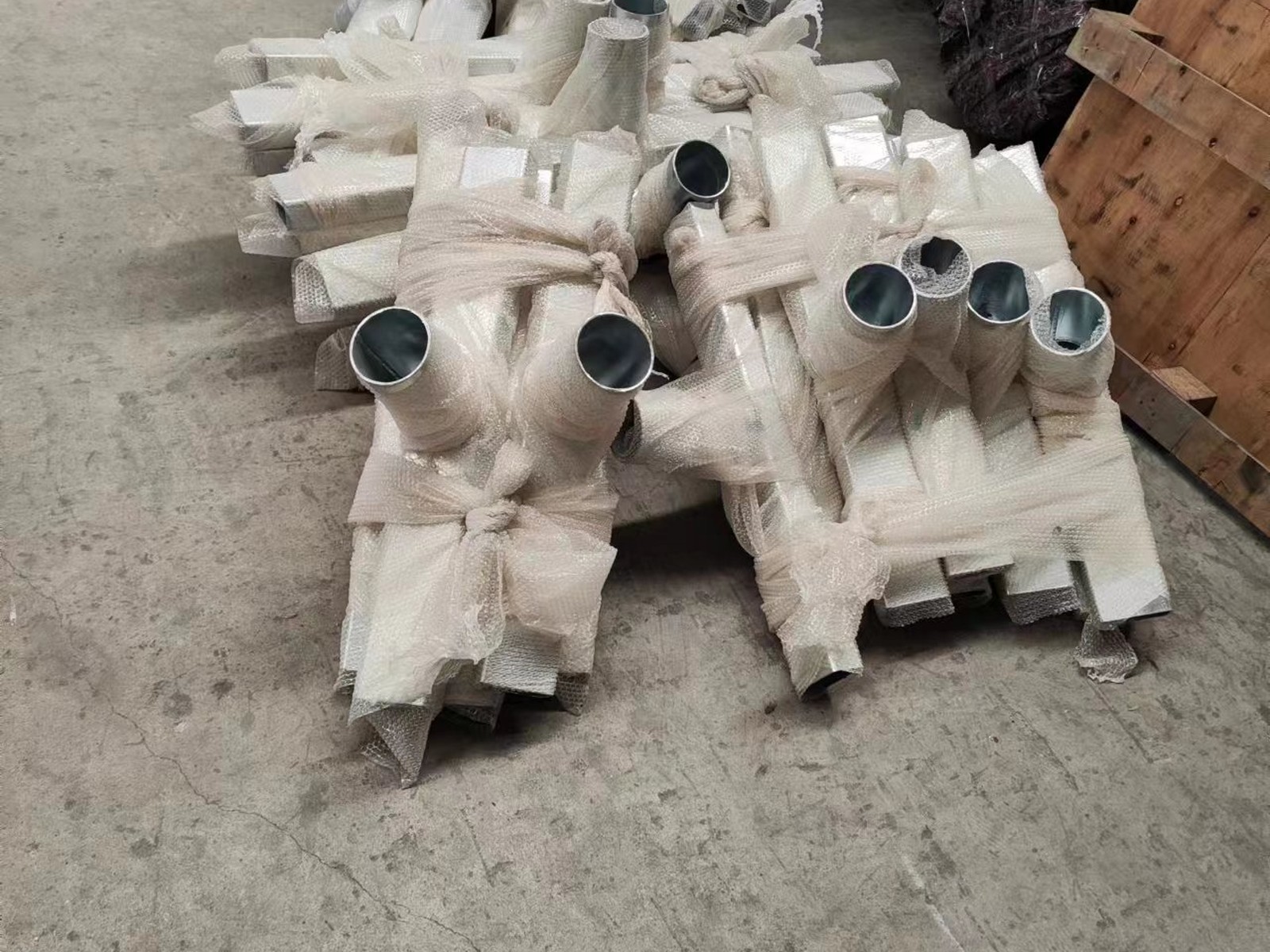

Every floodlight pole is dimensioned around the bracket it has to carry. We make the pole, the crossbar, cantilever or platform bracket, the base plate and the door as one galvanised unit, drilled ready for the floodlights and supplied with the anchor bolts and the foundation drawing.
Specifications
High Mast and Floodlight Pole Range

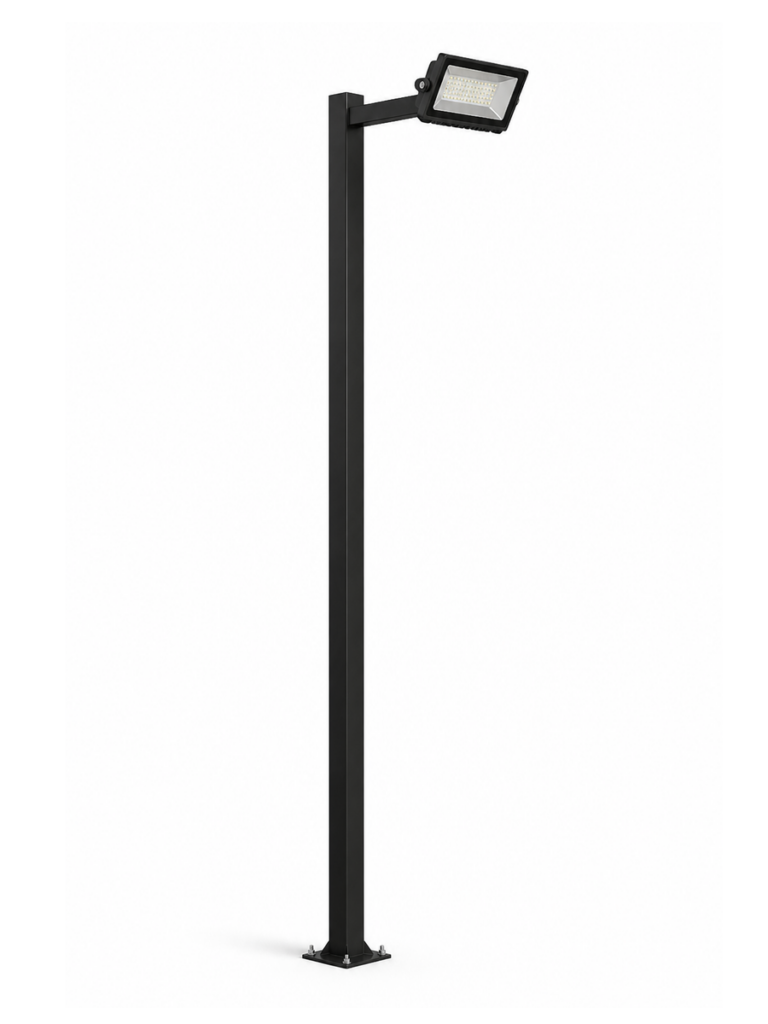

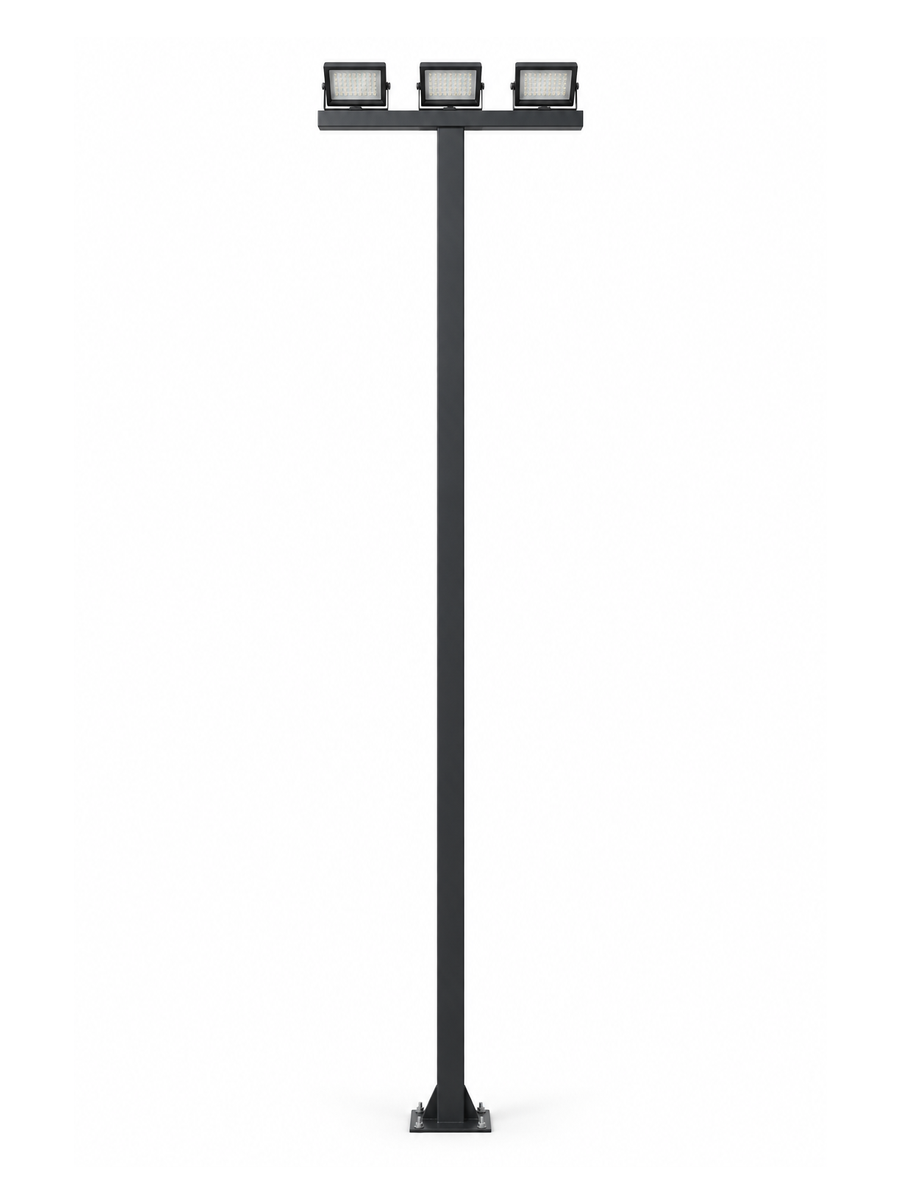

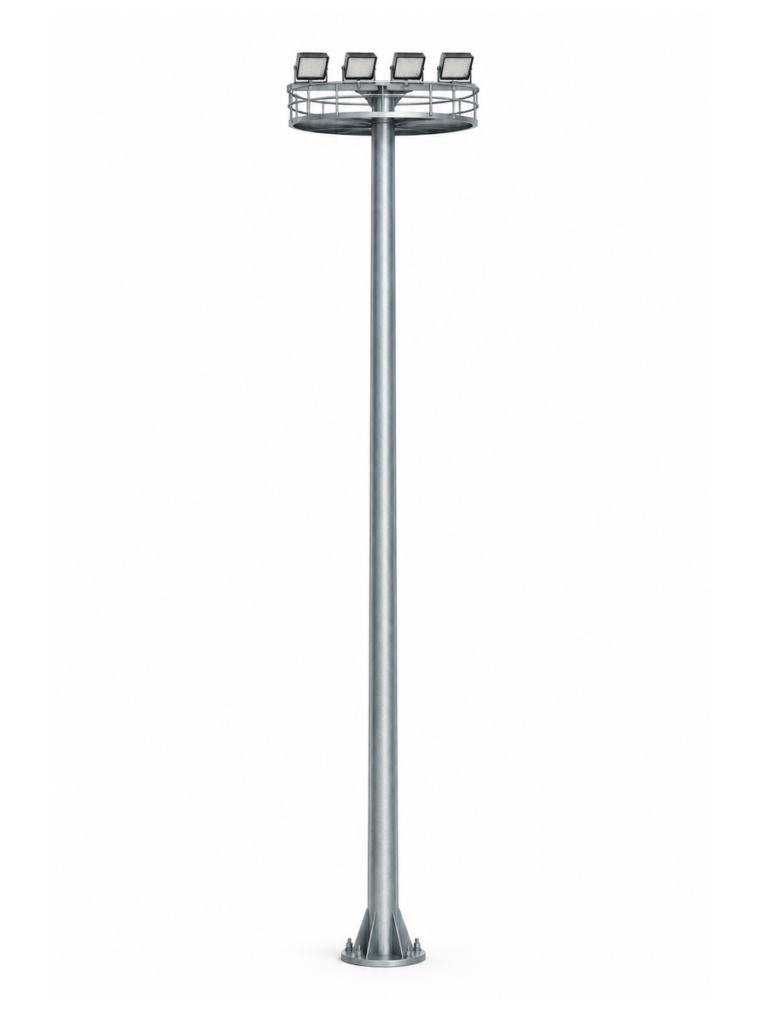

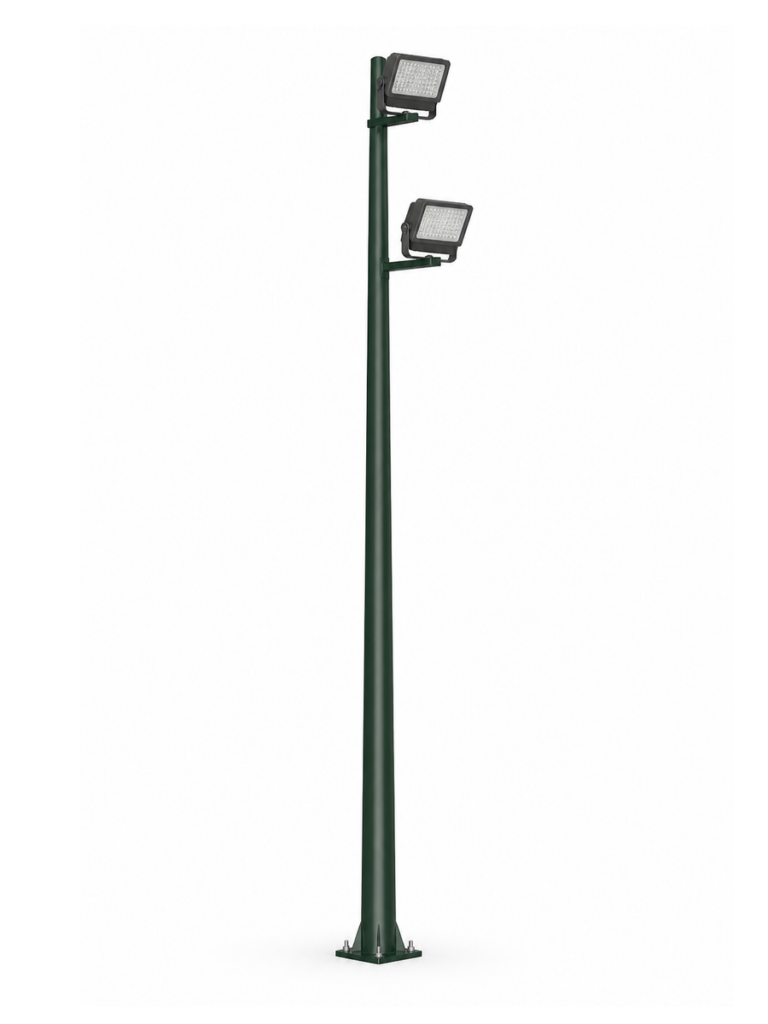

Range: high mast lights from 15 m to 30 m carrying 3 to 18 floodlights on a fixed, ladder-access or internally lifting crown; floodlight poles from 6 m to 12 m carrying 1 to 4 floodlights on a crossbar, cantilever or platform bracket.
Material: Steel Q235, Q235B or Q345, hot-dip galvanised as standard, or galvanised and powder coated to a RAL colour.
Supplied with: Base plate, anchor bolts, earthing terminal, pole door and foundation drawing. Pole diameter, wall thickness and base plate are confirmed for the wind load and the floodlight load at your site.
Material and Tolerances
Material: Steel Q235, Q235B, Q345
| Property | Tolerance |
|---|---|
| External diameter | ±1% |
| Shape | ±3% of the diameter |
| Thickness | ±10% |
| Straightening | ±0.3% of total length |
| Length | ±0.5% |
Where Floodlight Poles Are Used

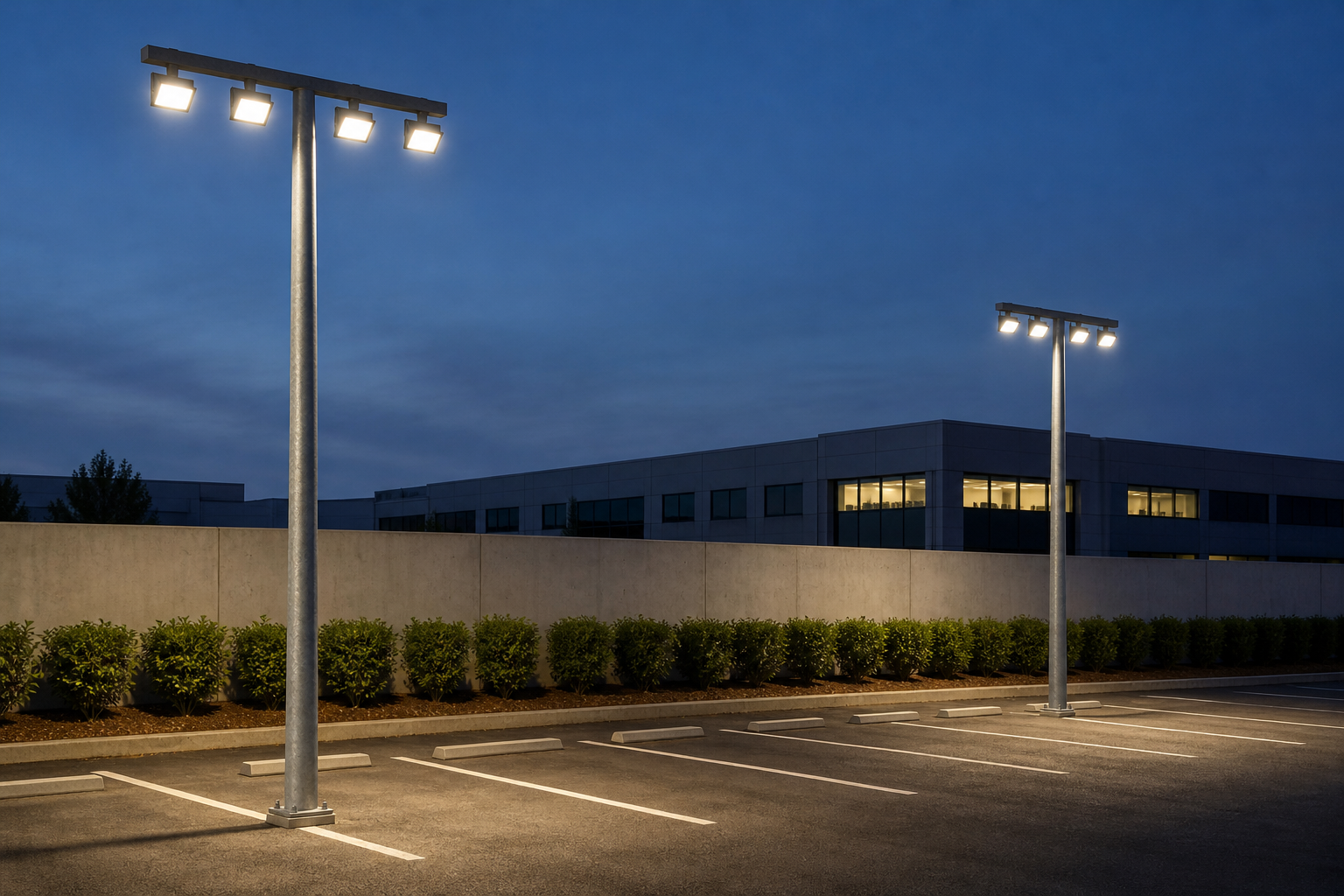

Car Parks and Forecourts

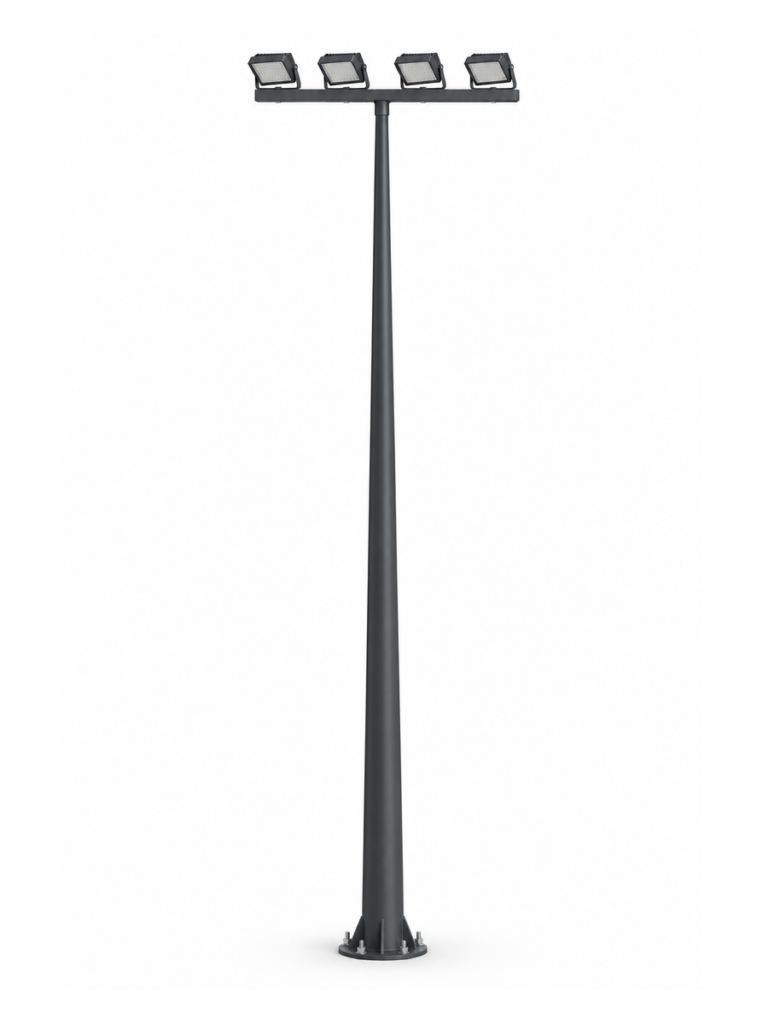

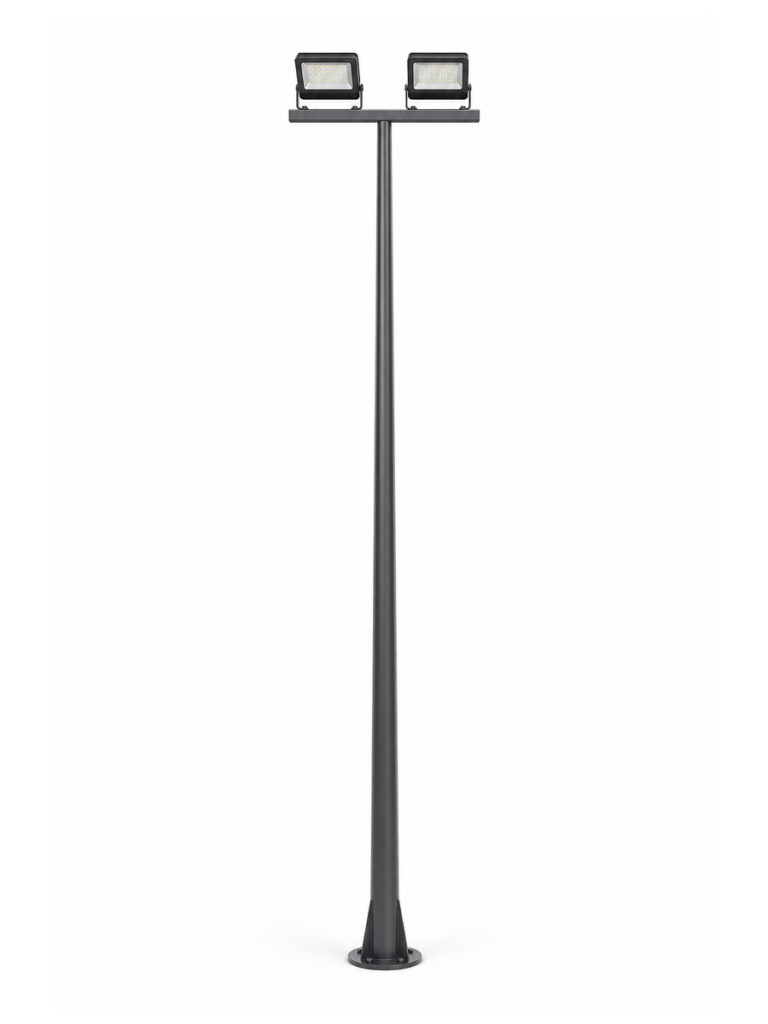

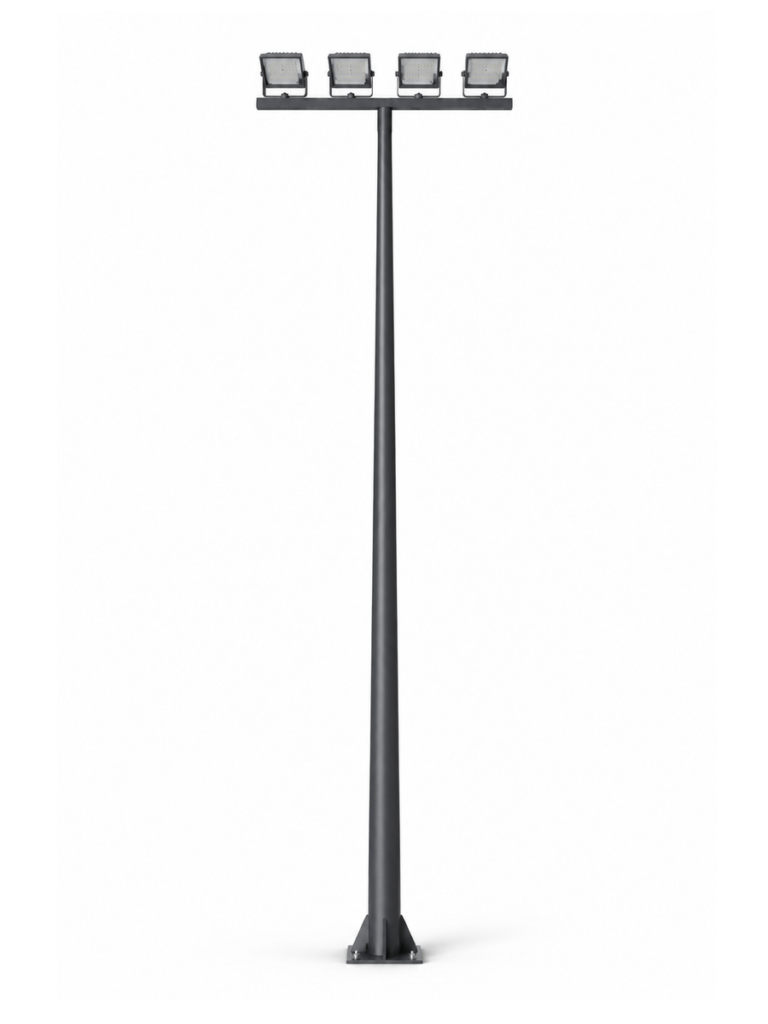

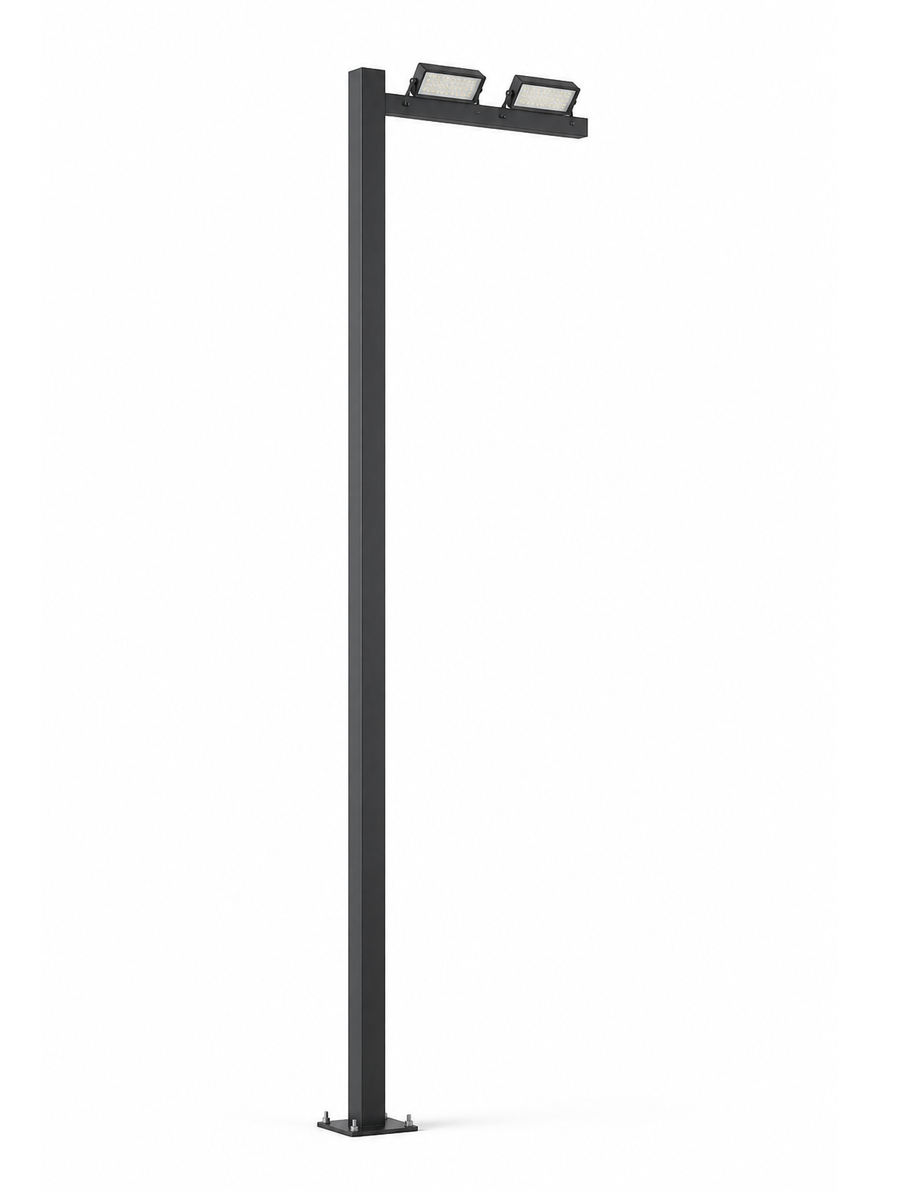

Crossbar poles from 6 m to 12 m light open parking bays evenly, with the floodlights aimed to keep the light inside the boundary.

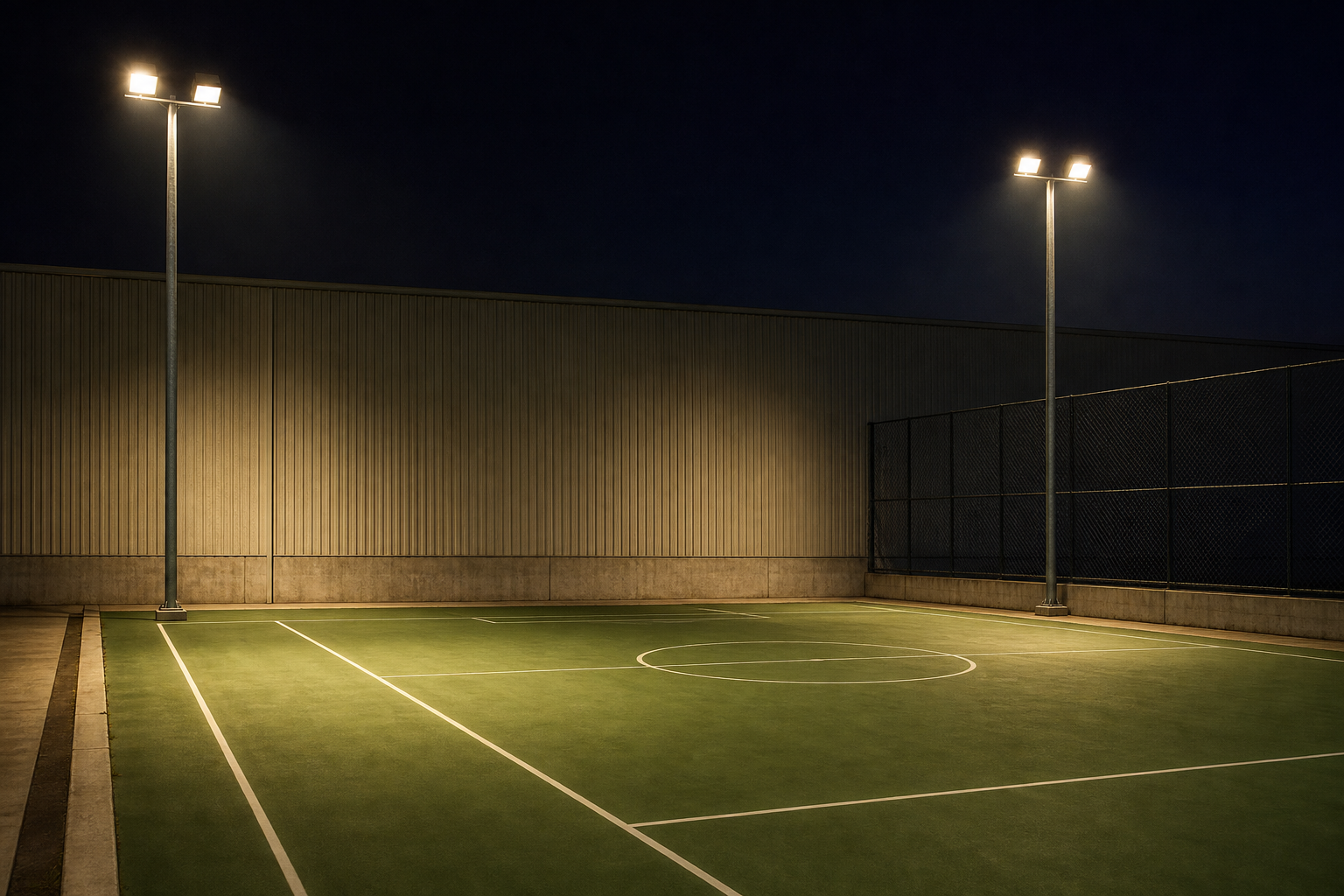

Sports Courts and Yards

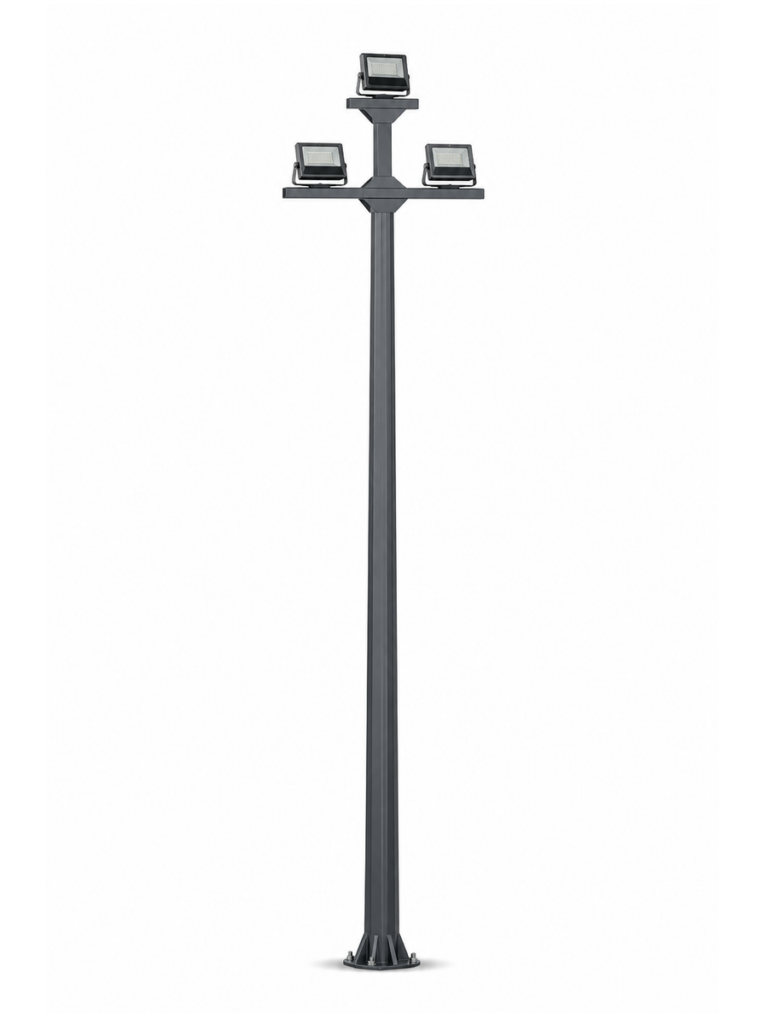

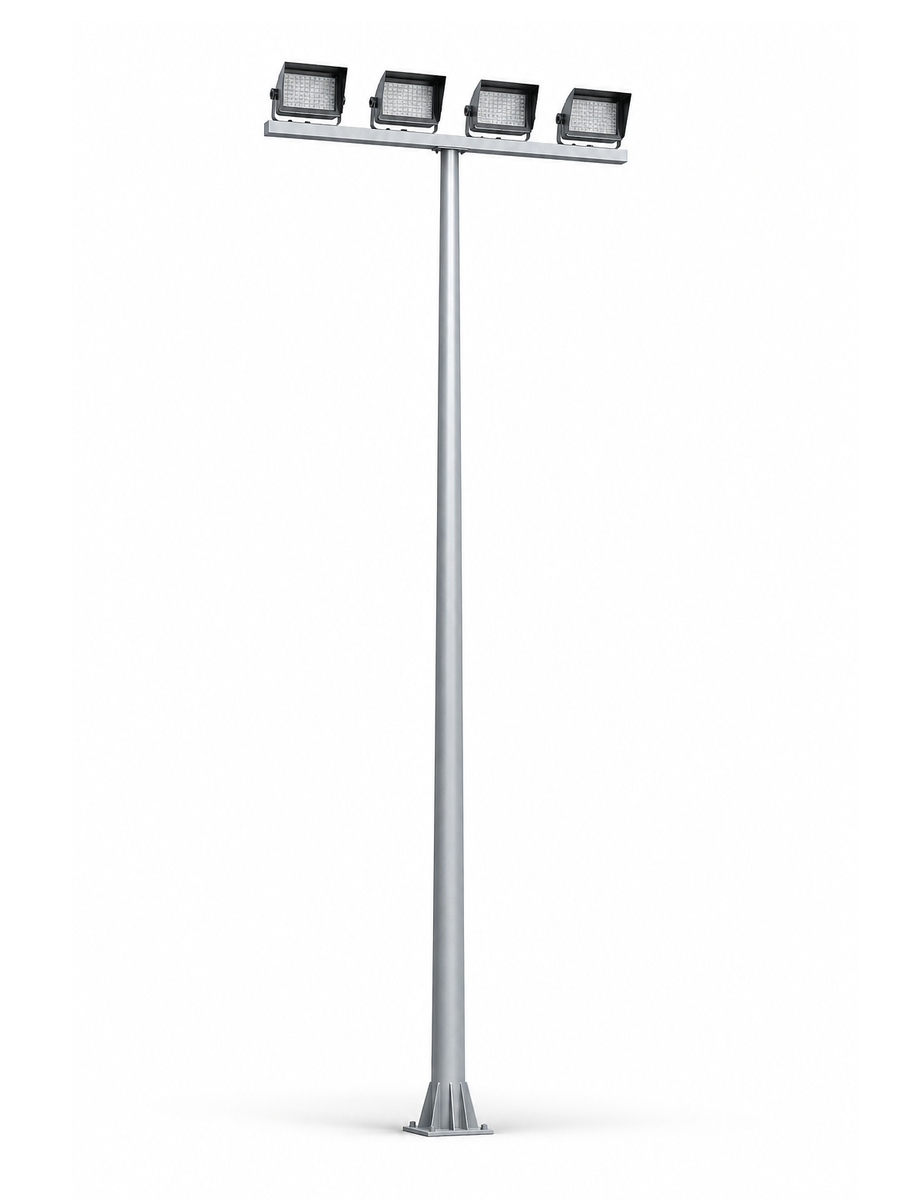

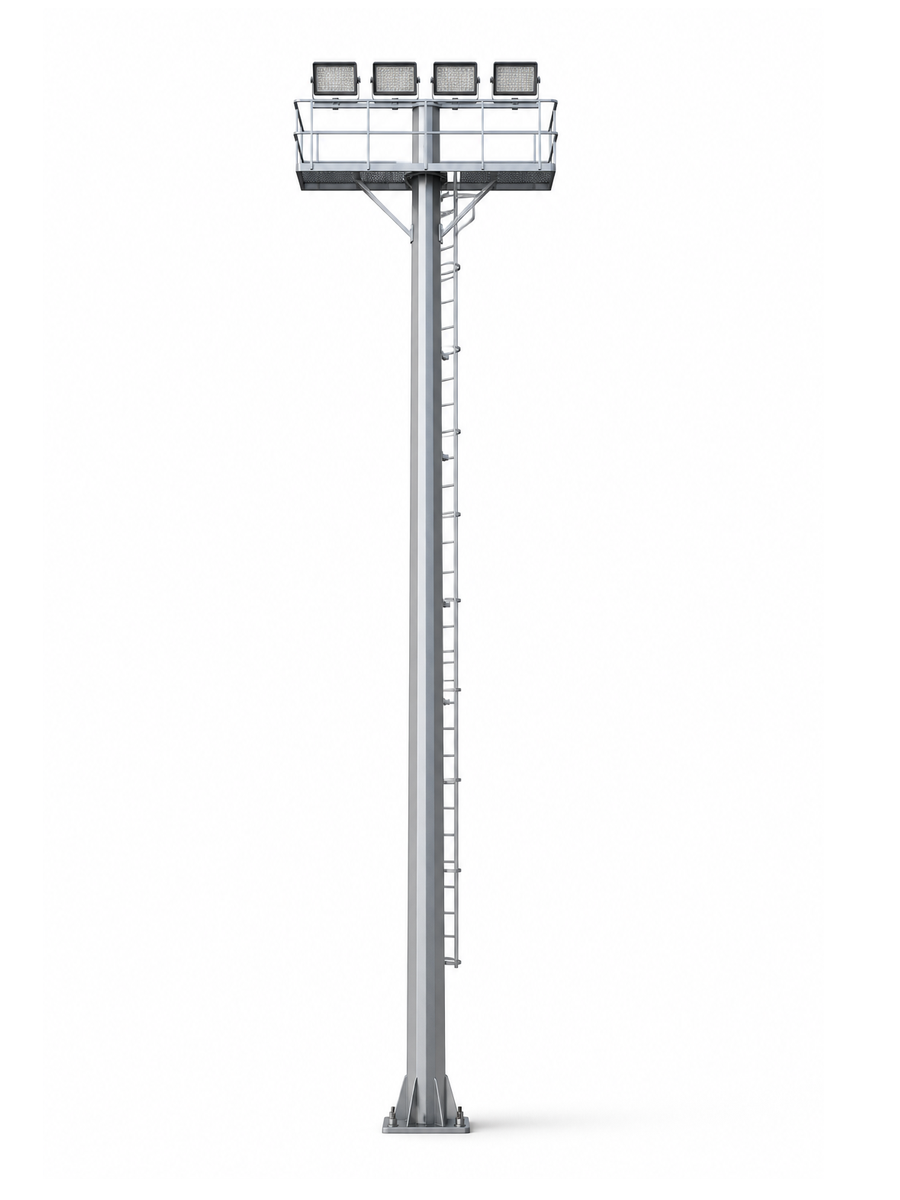

T-bracket and platform poles carry two to four floodlights for multi-use games areas, loading yards and depot aprons.
Construction Details
Base Plate & Flange
A square base plate is welded to the pole root and drilled for the anchor bolts, with the weld dressed and the whole assembly galvanised.
Finish & Galvanising
Hot-dip galvanised as standard, or galvanised and powder coated to a RAL colour when the specification calls for it.
