HC All-in-One Solar Street Light — 20 W to 60 W
Integrated panel, LiFePO4 battery, LED and controller · 3.2 V battery · IP65
- Range: HC-20W/30W to HC-60W
- Battery: 3.2 V 60–150 Ah
- Ingress protection: IP65
- Mounting: Tripod + support bar
- Mounting height: 4–10 m

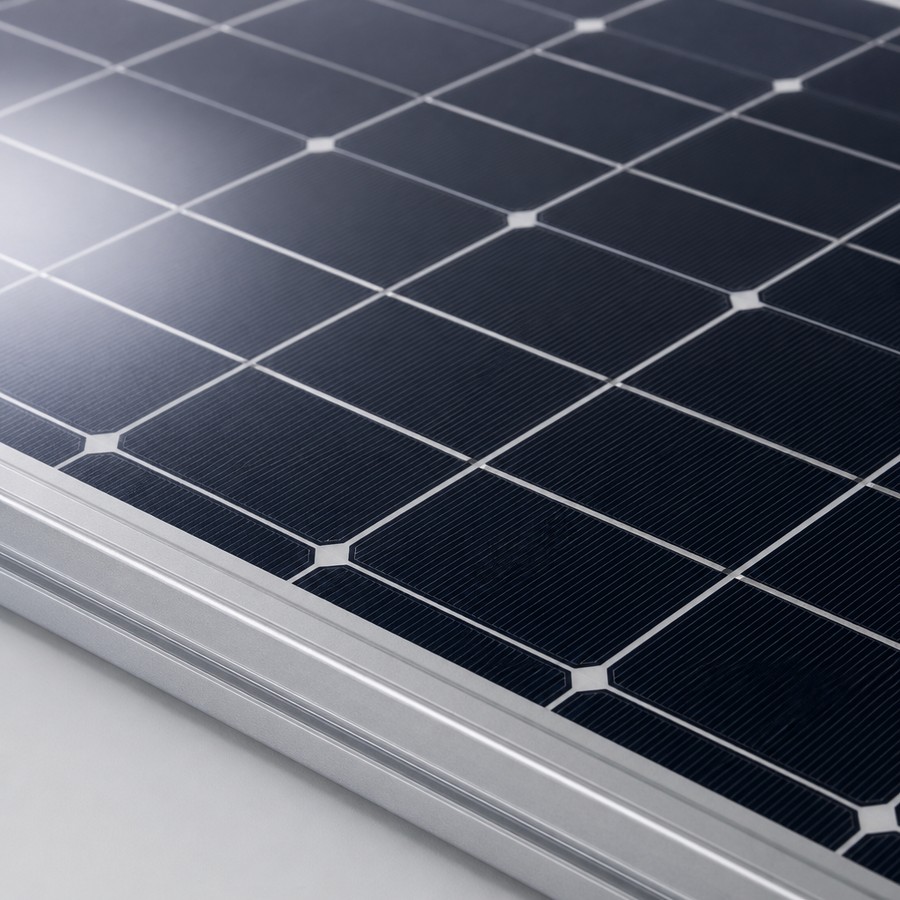

The 20 W to 60 W models in the HC range integrate the solar panel, lithium battery, LED light source and controller into one compact aluminium housing. Because every unit is pre-assembled and tested before shipment, on-site work is limited to mounting the unit on the pole — no trenching, no cable runs and no connection to the grid.

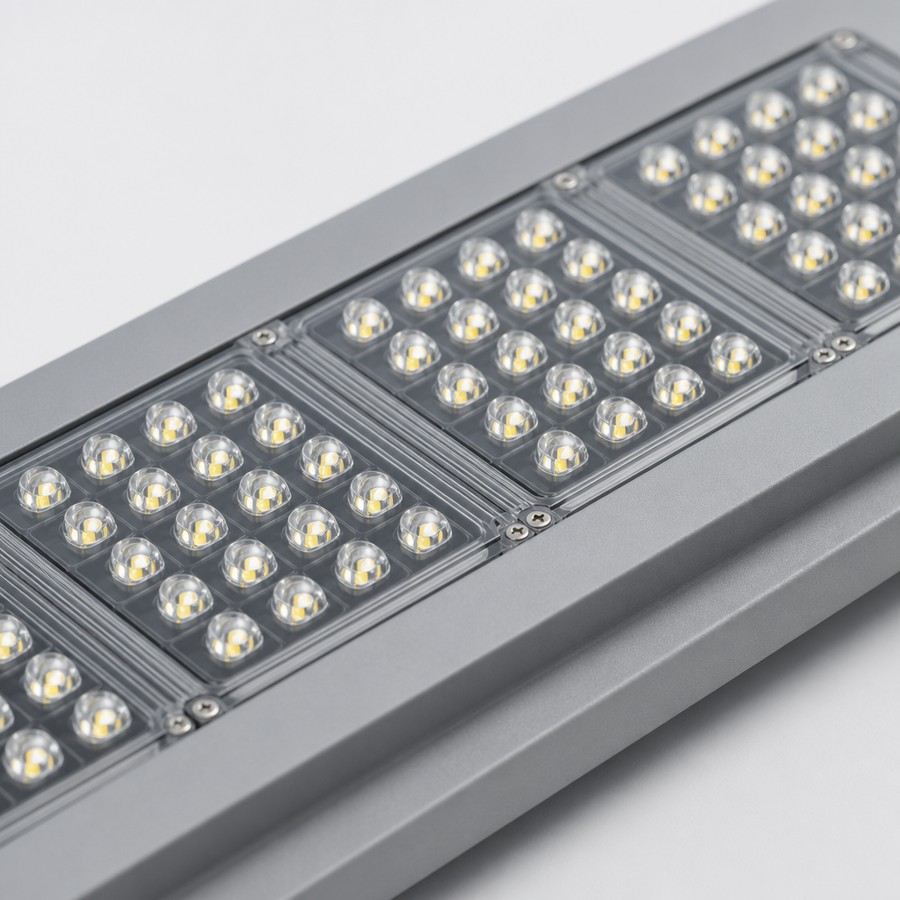

LED chip options 3030 / 5050 / 7070 are available; the luminous flux column lists the output for each, in that order. Mounting is by tripod and support bar.
At a glance
| Range | HC-20W/30W to HC-60W |
| Battery | 3.2 V 60–150 Ah |
| Ingress protection | IP65 |
| Mounting | Tripod + support bar |
| Mounting height | 4–10 m |
HC All-in-One Solar Street Light 20 W to 60 W — technical parameters
| Model | HC-20W/30W | HC-30W/40W | HC-40W | HC-50W | HC-60W |
|---|---|---|---|---|---|
| Power | 20W / 30W | 30W / 40W | 40W | 50W | 60W |
| Solar Panel | 45W | 50W | 70W | 80W | 90W |
| Battery | 3.2V 60Ah | 3.2V 75Ah | 3.2V 105Ah | 3.2V 120Ah | 3.2V 150Ah |
| Luminous Flux 3030/5050/7070 | 2800–4200 / 3400–5100 / 3800–5700 lm | 4200–5600 / 5100–6800 / 5700–7600 lm | 5600 / 6800 / 7600 lm | 7000 / 8500 / 9500 lm | 8400 / 10200 / 11400 lm |
| PV Panel Size | 820×272 mm | 1070×272 mm | 1070×340 mm | 1070×398 mm | 1170×398 mm |
| Light Size | 900×300 mm | 1130×300 mm | 1130×370 mm | 1130×425 mm | 1230×425 mm |
| Mounting | Tripod + support bar | Tripod + support bar | Tripod + support bar | Tripod + support bar | Tripod + support bar |
| Mounting Height | 4–6 m | 5–8 m | 6–8 m | 7–9 m | 7–10 m |
Parameters are the supplier's published figures for the models listed. Tell us your road width, pole height and required lighting hours and we will confirm the exact configuration for your project.
