Solar Street Light

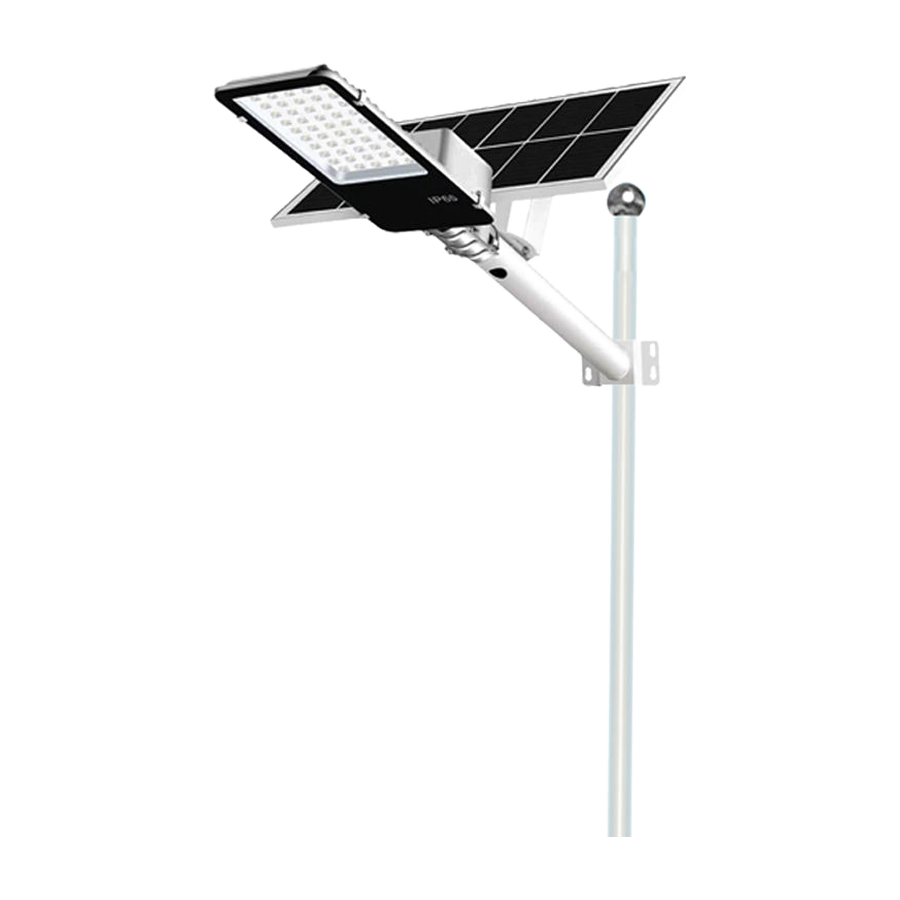

HC-DT-2 Split Solar Street Light
30 W – 120 W · 120–130 LM/W · 6000 K · IP65 · Mounting height 5–12 m
- Series: HC-DT-2
- Rated power: 30 W – 120 W
- Efficacy: 120–130 LM/W
- Ingress protection: IP65
- Colour temperature: 6000 K
The HC-DT-2 is a separate lamp head for split solar street light systems, covering 30 W to 120 W at 120–130 LM/W. The panel, battery and controller are supplied separately so each can be sized for the road rather than for a single integrated housing.
A 6000 K output and IP65 housing make it suited to residential roads, secondary roads and community streets where the pole and its foundation are the only civil work required.
At a glance
| Series | HC-DT-2 |
| Rated power | 30 W – 120 W |
| Efficacy | 120–130 LM/W |
| Ingress protection | IP65 |
| Colour temperature | 6000 K |
| Mounting height | 5–12 m |
HC-DT-2 Split Solar Street Light — technical parameters
| Model | Wattage | Light Size (mm) | Packing Size (mm) | Mounting Height |
|---|---|---|---|---|
| HC-DT-2-30W | 30 W | 408×230×106 | 420×260×150 | 5–7 m |
| HC-DT-2-50W | 50 W | 408×230×106 | 420×260×150 | 7–9 m |
| HC-DT-2-60W | 60 W | 408×230×106 | 420×260×150 | 7–9 m |
| HC-DT-2-80W | 80 W | 509×230×105 | 525×260×150 | 8–10 m |
| HC-DT-2-100W | 100 W | 509×230×105 | 525×260×150 | 8–10 m |
| HC-DT-2-120W | 120 W | 600.5×257×109 | 620×287×150 | 10–12 m |
Parameters are the supplier's published figures for the models listed. Tell us your road width, pole height and required lighting hours and we will confirm the exact configuration for your project.
