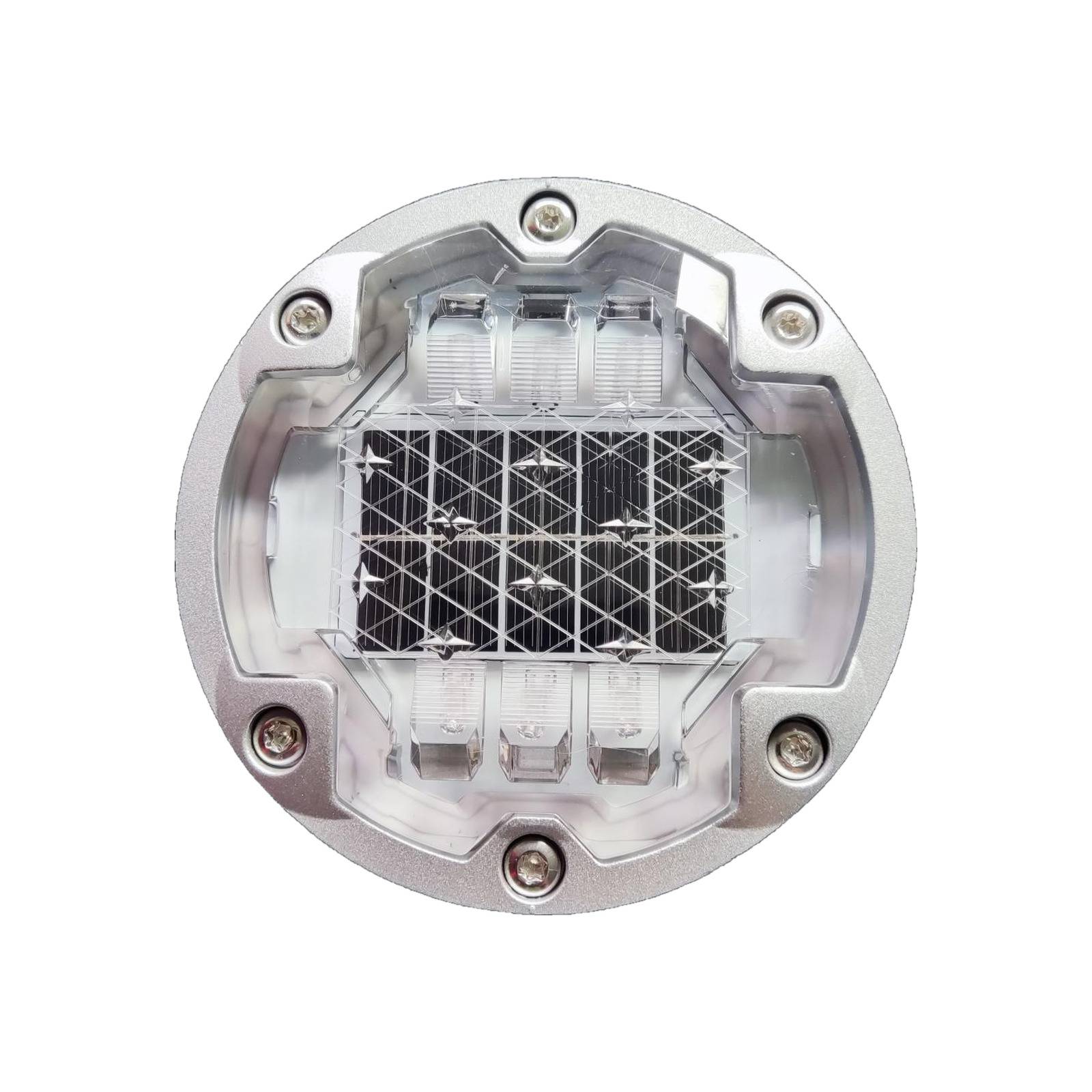

Low-Profile Solar Road Stud, 6/8-LED – HC-RS-04
2.5V/180 mA mono panel · 6 or 8 ultra-bright LEDs · core IP68 · ≈ 55 t · 610 g
- Model: HC-RS-04
- Product type: Embedded solar road stud
- LED quantity: 6 or 8 PCS ultra-bright
- Size: D123 × H39 mm or H45 mm
- Battery: 1.2V/800 mAh Ni-MH
- Working time: ≈ 150 h flashing · ≈ 80 h steady
- Ingress protection: Core IP68
- Static compression: ≈ 55 t
- Weight: 610 g
- Security lock: Six stainless steel screws
HC-RS-04 is the low-profile member of the family, 39 mm or 45 mm high rather than the 47–51 mm of the larger markers, which keeps the stud closer to the road surface. The outer diameter is D123 mm and the unit weighs 610 g.
The marker takes a monocrystalline 2.5V/180 mA panel and a 1.2V/800 mAh Ni-MH battery, and can be specified with six or eight ultra-bright LEDs. A full charge gives about 80 hours of steady light or about 150 hours of flashing at 120 flashes per minute. The core is rated IP68 and the published static compression figure is about 55 t, with the inner assembly held by six stainless steel screws.
The lower height suits carriageways where the stud has to sit as flat as possible, and the stainless fixings let the core be removed and replaced without disturbing the body. Tell us the application, the quantity and the target market and we will confirm the configuration and a quotation.
At a glance
| Model | HC-RS-04 |
| Product type | Embedded solar road stud |
| Solar panel | Mono 2.5V/180 mA |
| Battery | Ni-MH 1.2V/800 mAh |
| LED colour | Yellow / white / red / blue / green |
| LED quantity | 6 or 8 PCS ultra-bright |
| Work mode | 120 flashes per minute or steady |
| Working time | Steady ≈ 80 h · flashing ≈ 150 h |
| Life span | 3–5 years |
| Security lock | Secured with six stainless steel screws |
| Operating temperature | −20 °C to 65 °C |
| Ingress protection | Core IP68 |
| Compression test | Static ≈ 55 t |
| Material | Die-cast aluminium + polycarbonate PC |
| Size | D123 × H39 mm or H45 mm |
| Weight | 610 g |
| Carton | 52.2 × 26 × 23 cm, 32 pcs / 22 kg per ctn |
Low-Profile Solar Road Stud, 6/8-LED – HC-RS-04 — technical parameters
| Item | HC-RS-04 |
|---|---|
| Model | HC-RS-04 |
| Product type | Embedded solar road stud |
| Solar panel | Mono 2.5V/180 mA |
| Power storage | Ni-MH 1.2V/800 mAh |
| LED colour | Yellow / white / red / blue / green |
| LED quantity | 6 or 8 PCS ultra-bright |
| Work mode | 120 flashes per minute or steady |
| Working time | Steady ≈ 80 h · flashing ≈ 150 h |
| Life span | 3–5 years |
| Security lock | Secured with six stainless steel screws |
| Operating temperature | −20 °C to 65 °C |
| Water resistance | Core IP68 |
| Compression test | Static ≈ 55 t |
| Material | Die-cast aluminium + polycarbonate PC |
| Size | D123 × H39 mm or H45 mm |
| Weight | 610 g |
| Carton size | 52.2 × 26 × 23 cm, 32 pcs / 22 kg per ctn |
Parameters are the supplier's published figures for the model listed. Tell us the application (lane marking, hazard warning, unlit road edge), the quantity and the target market and we will confirm the exact configuration and a quotation.
