Solar Garden Light – Ribbed Round – ZC-GGD001
5V/20 W solar panel · 3.2V/20000 mAh · 80 LED chips · Ø480 × H440 mm · 3000–6500 K · IP65
- Model: ZC-GGD001
- Product type: Post-top solar garden light
- Material: Die-cast aluminium + PC
- Solar panel: 5V/20 W
- Battery: 3.2V/20000 mAh
- LED chips: 80 PCS
- Colour temperature: 3000–6500 K
- Luminaire size: Ø480 × H440 mm

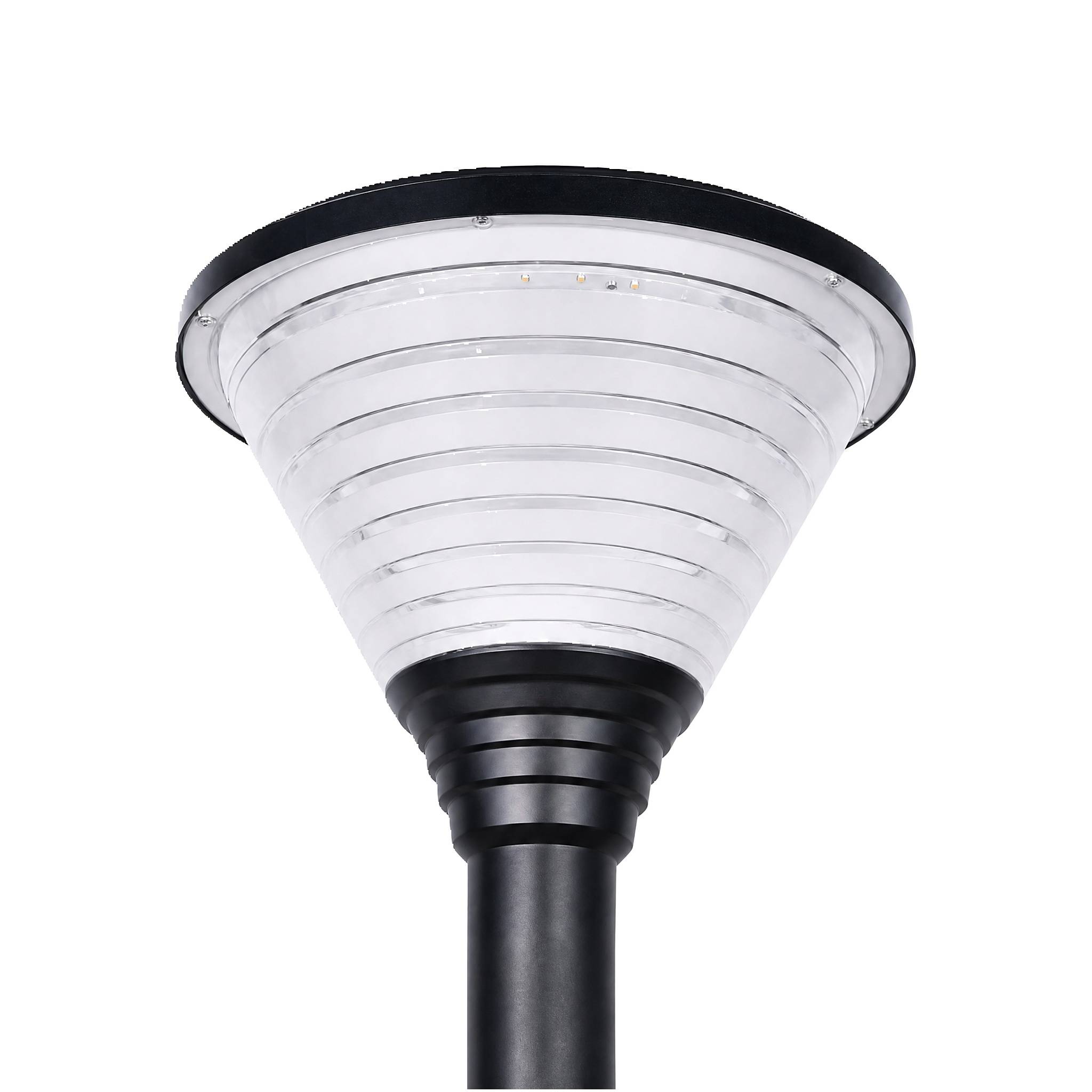

The ZC-GGD001 is a round post-top solar garden light with a ribbed, flared diffuser. The solar panel is built into the crown and the battery and controller sit inside the die-cast aluminium body, so once the head is on its post the fitting is complete — nothing else has to be mounted, wired or trenched.

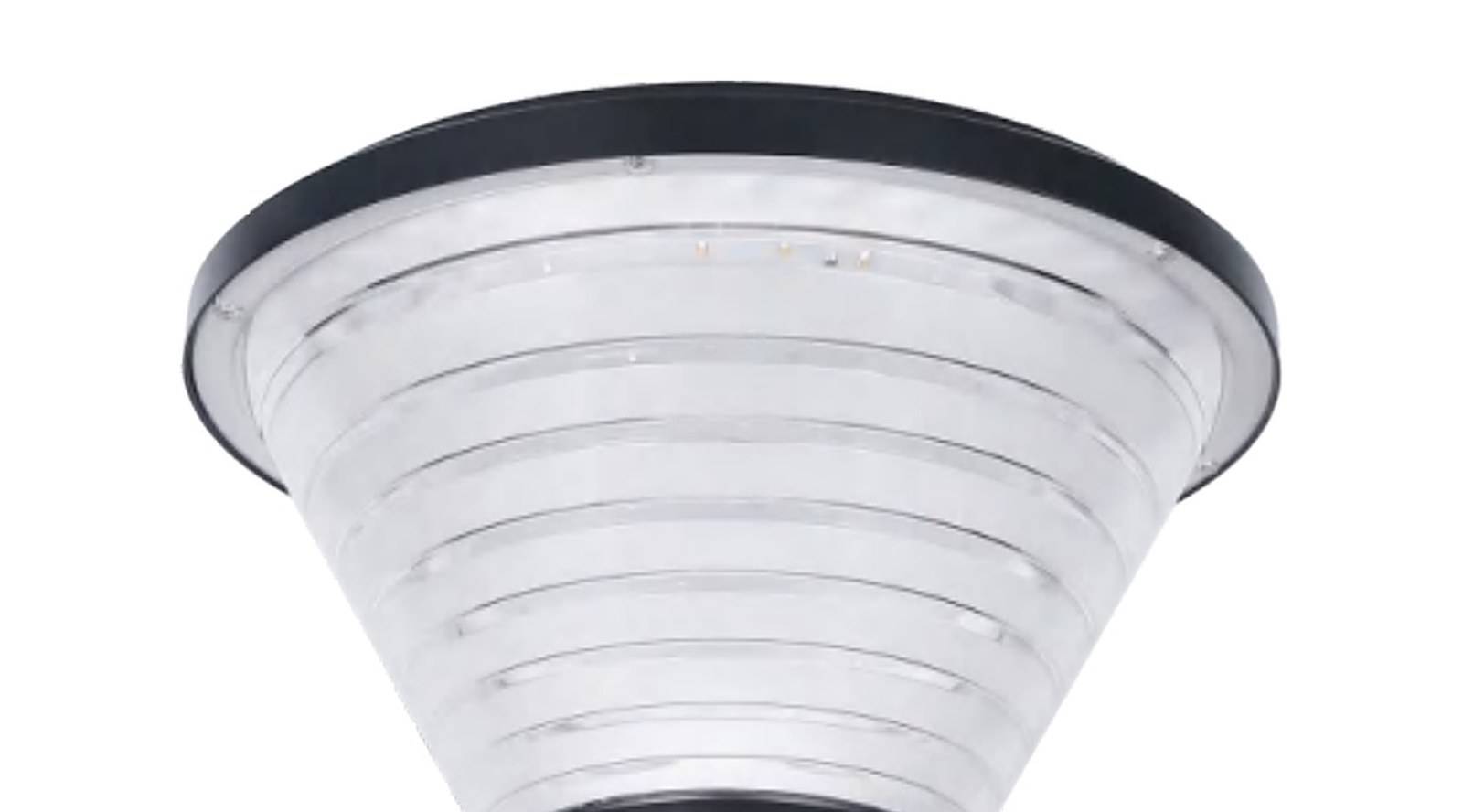

The ring of ribs around the diffuser spreads the output of the 80 LED chips over a wide circle instead of concentrating it. Combined with a 5V/20 W panel and a 3.2V/20000 mAh battery, that makes the fitting well suited to lighting a garden path, a courtyard perimeter or the planting around a residential block where even, low-glare light matters more than a single bright pool. Charging takes three to five hours in good sun, the built-in optical sensor switches the luminaire on at dusk, and the colour temperature is selectable between 3000 K warm white and 6500 K daylight.
The head takes a standard Ø76 mm post, normally set 2600 mm to 4000 mm above ground. Send us the site layout and we will confirm how many units you need and at what spacing.
At a glance
| Model | ZC-GGD001 |
| Product type | Post-top solar garden light |
| Material | Die-cast aluminium + PC |
| Solar panel | 5V/20 W |
| Battery | 3.2V/20000 mAh |
| LED chips | 80 PCS |
| Charge time | 3–5 H |
| Colour temperature | 3000–6500 K |
| Luminaire size | Ø480 × H440 mm |
| Recommended post | Ø76 mm, 2600–4000 mm |
| Ingress protection | IP65 |
| Typical application | Garden path, courtyard perimeter, planting beds |
Solar Garden Light – Ribbed Round – ZC-GGD001 — technical parameters
| Item | ZC-GGD001 |
|---|---|
| Model | ZC-GGD001 |
| Product type | Post-top solar garden light |
| Material | Die-cast aluminium + PC |
| Solar panel | 5V/20 W |
| Battery | 3.2V/20000 mAh |
| Quantity of LED chips | 80 PCS |
| Charge time | 3–5 H |
| Colour temperature | 3000–6500 K |
| Size | Ø480 × H440 mm |
| Recommended post | Ø76 mm, 2600–4000 mm |
| Ingress protection | IP65 |
Parameters are the supplier's published figures for the models listed. Tell us the area to be lit, the pole height and the lighting hours you require and we will confirm the exact configuration for your project.
