Solar Garden Light – Faceted Lantern – ZC-GGD002
5V/20 W or 5V/12 W solar panel · 3.2V/20000 or 12000 mAh · 80 or 64 LED chips · 1000 mm post · IP65
- Model: ZC-GGD002-1 / ZC-GGD002-2
- Product type: Post-top solar garden light
- Material: Die-cast aluminium + PC
- Solar panel: 5V/20 W · 5V/12 W
- Battery: 3.2V/20000 mAh · 3.2V/12000 mAh
- LED chips: 80 PCS · 64 PCS
- Colour temperature: 3000–6500 K
- Luminaire size: 400×400×H410 mm · 320×320×H320 mm

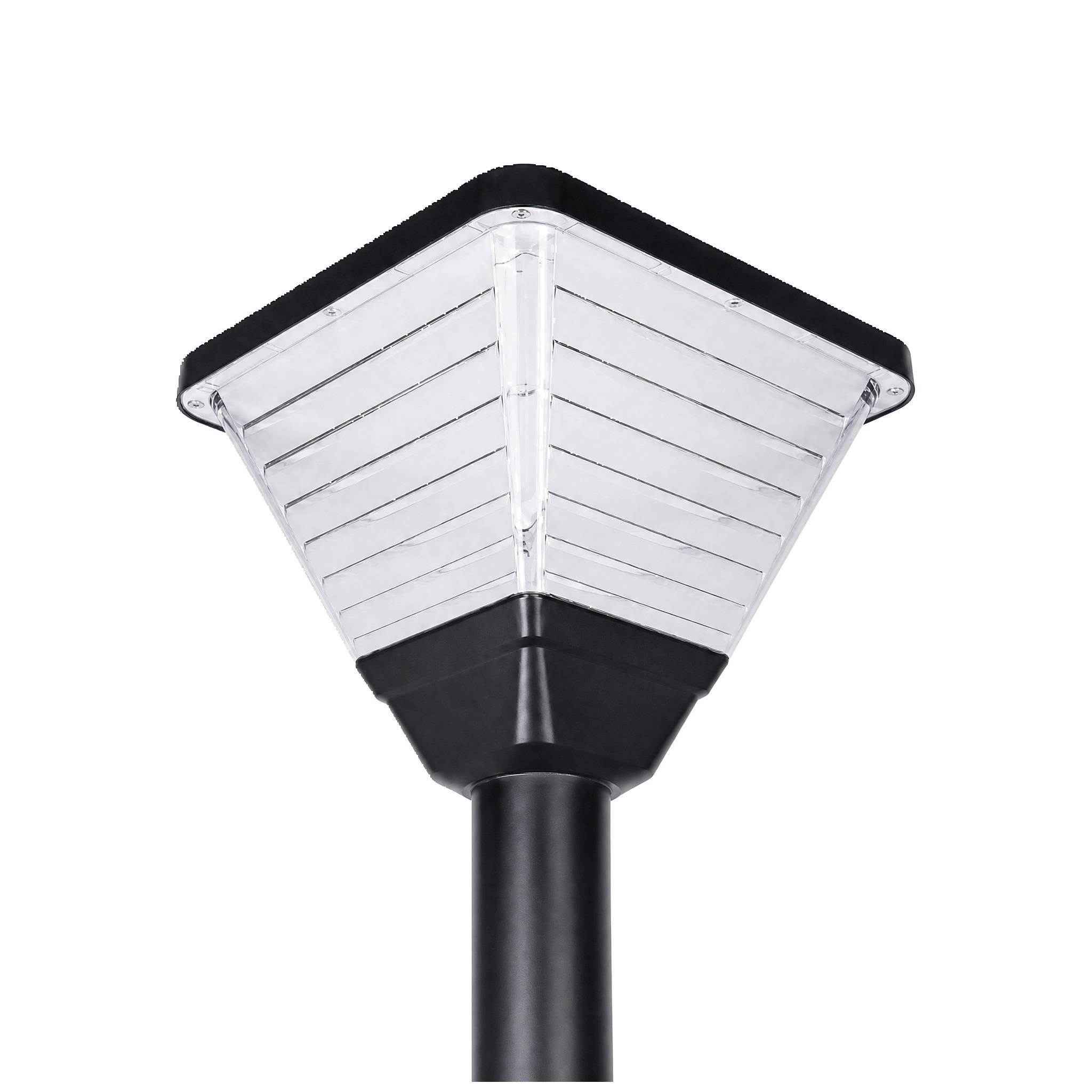

The ZC-GGD002 is a square, faceted post-top solar garden light supplied in two sizes. Both use the same die-cast aluminium and polycarbonate construction with the solar panel set into the crown of the head and the battery and controller housed inside the body, so each luminaire is completely self-contained once it is on its post.

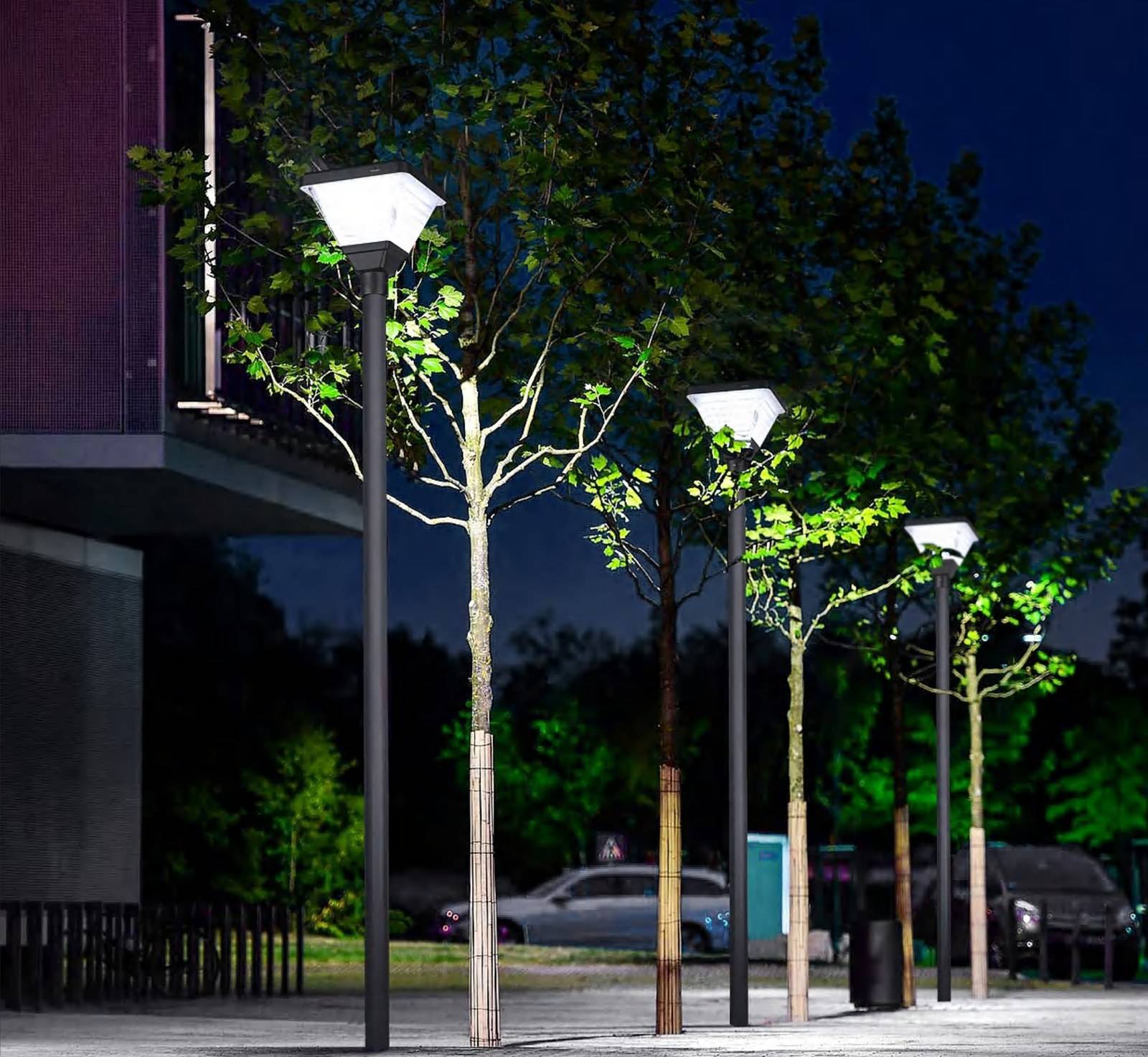

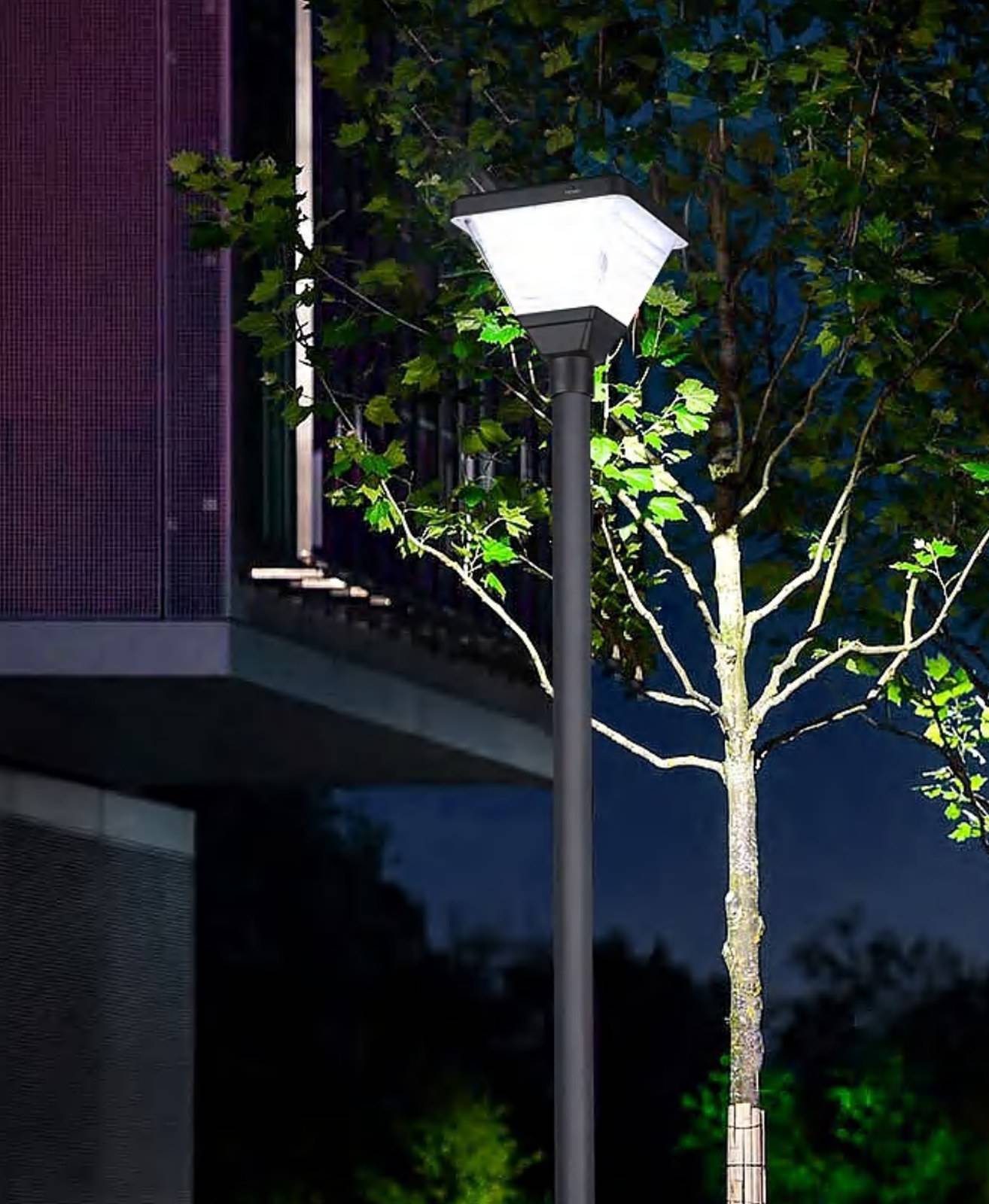

The larger ZC-GGD002-1 has a 5V/20 W panel, a 3.2V/20000 mAh battery and 80 LED chips in a 400 × 400 × H410 mm body; the compact ZC-GGD002-2 runs a 5V/12 W panel, a 3.2V/12000 mAh battery and 64 LED chips in a 320 × 320 × H320 mm body. The panelled faces diffuse the light so the pool on the ground stays even and low in glare, which suits garden paths, low planting schemes and the entrances of residential compounds. Charge time is three to five hours in good sun and the colour temperature is selectable between 3000 K and 6500 K.
Both sizes are made for a 1000 mm post — the larger ZC-GGD002-1 on a Ø76 mm pole and the compact ZC-GGD002-2 on a Ø60 mm pole. Tell us the area to be lit and we will say which of the two sizes fits and how many units the layout needs.
At a glance
| Model | ZC-GGD002-1 |
| Model | ZC-GGD002-2 |
| Product type | Post-top solar garden light |
| Material | Die-cast aluminium + PC |
| Solar panel | 5V/20 W |
| Solar panel | 5V/12 W |
| Battery | 3.2V/20000 mAh |
| Battery | 3.2V/12000 mAh |
| LED chips | 80 PCS |
| LED chips | 64 PCS |
| Charge time | 3–5 H |
| Colour temperature | 3000–6500 K |
| Size | 400 × 400 × H410 mm |
| Size | 320 × 320 × H320 mm |
| Post | Ø76 mm, 1000 mm |
| Post | Ø60 mm, 1000 mm |
| Ingress protection | IP65 |
Solar Garden Light – Faceted Lantern – ZC-GGD002 — technical parameters
| Item | ZC-GGD002-1 | ZC-GGD002-2 |
|---|---|---|
| Model | ZC-GGD002-1 | ZC-GGD002-2 |
| Product type | Post-top solar garden light | Post-top solar garden light |
| Material | Die-cast aluminium + PC | Die-cast aluminium + PC |
| Solar panel | 5V/20 W | 5V/12 W |
| Battery | 3.2V/20000 mAh | 3.2V/12000 mAh |
| Quantity of LED chips | 80 PCS | 64 PCS |
| Charge time | 3–5 H | 3–5 H |
| Colour temperature | 3000–6500 K | 3000–6500 K |
| Size | 400 × 400 × H410 mm | 320 × 320 × H320 mm |
| Recommended post | Ø76 mm, 1000 mm | Ø60 mm, 1000 mm |
| Ingress protection | IP65 | IP65 |
Parameters are the supplier's published figures for the models listed. Tell us the area to be lit, the pole height and the lighting hours you require and we will confirm the exact configuration for your project.
