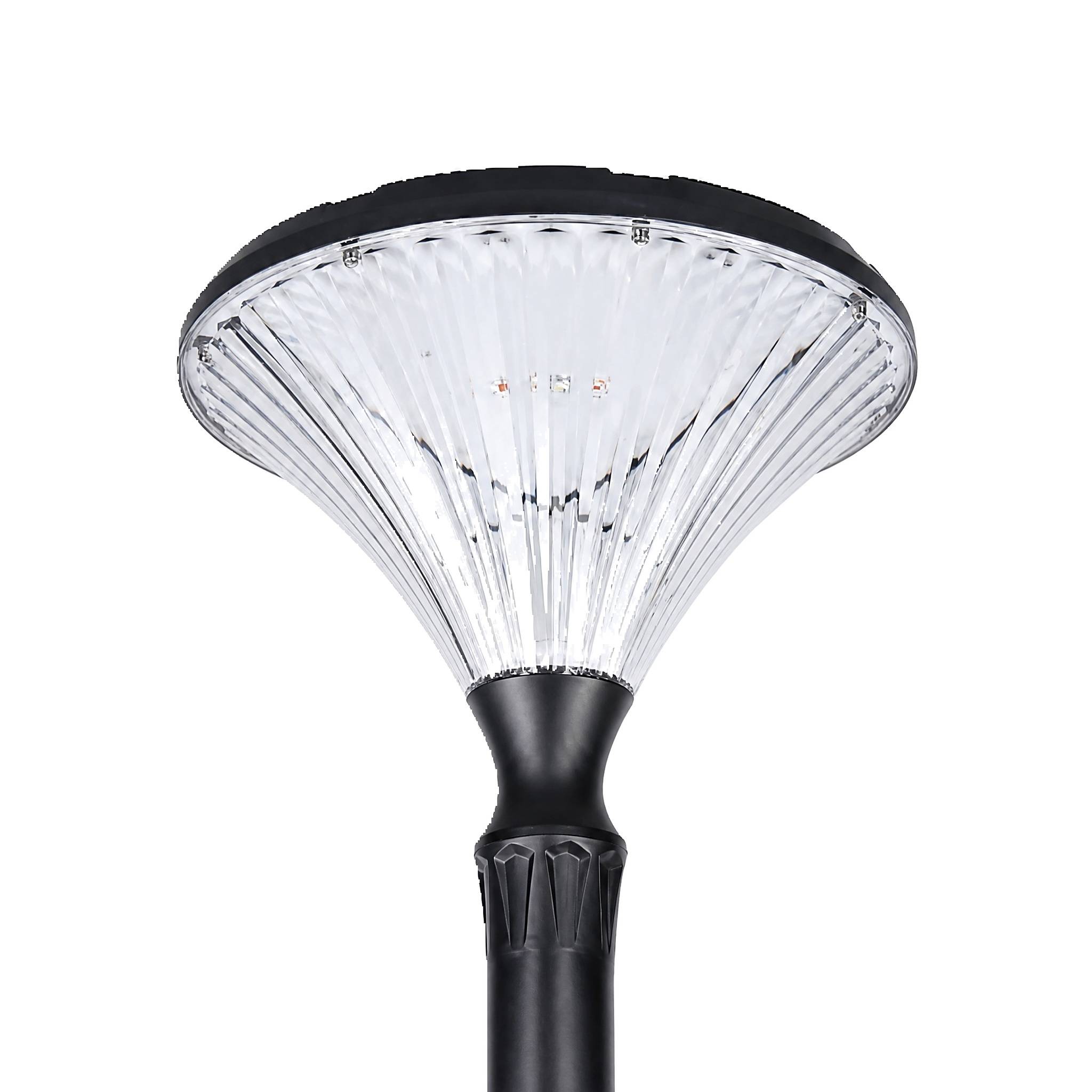

Solar Garden Light – Flared Ribbed – ZC-GGD003
5V/16–25 W solar panel · 3.2V/16000–30000 mAh · 80–160 LED chips · Ø410–530 × H383–490 mm
- Model: ZC-GGD003-1 / -2
- Product type: Post-top solar garden light
- Material: Die-casting aluminum + PC
- Solar panel: 5V/25 W and 5V/16 W
- Battery: 3.2V/30000 mAh and 3.2V/16000 mAh
- LED chips: 160 / 80 PCS
- Colour temperature: 3000–6500 K
- Luminaire size: Ø530 × H490 mm and Ø410 × H383 mm

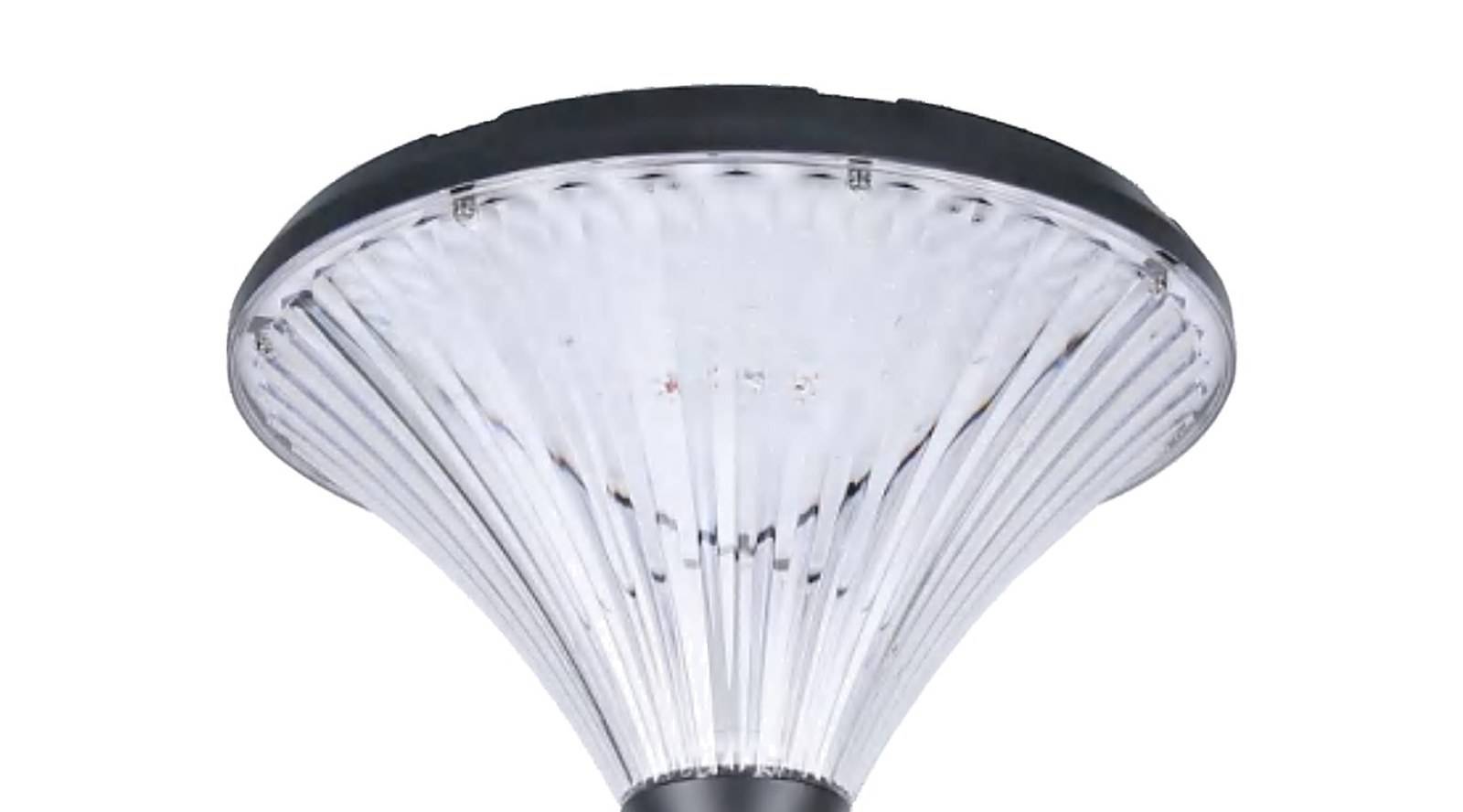

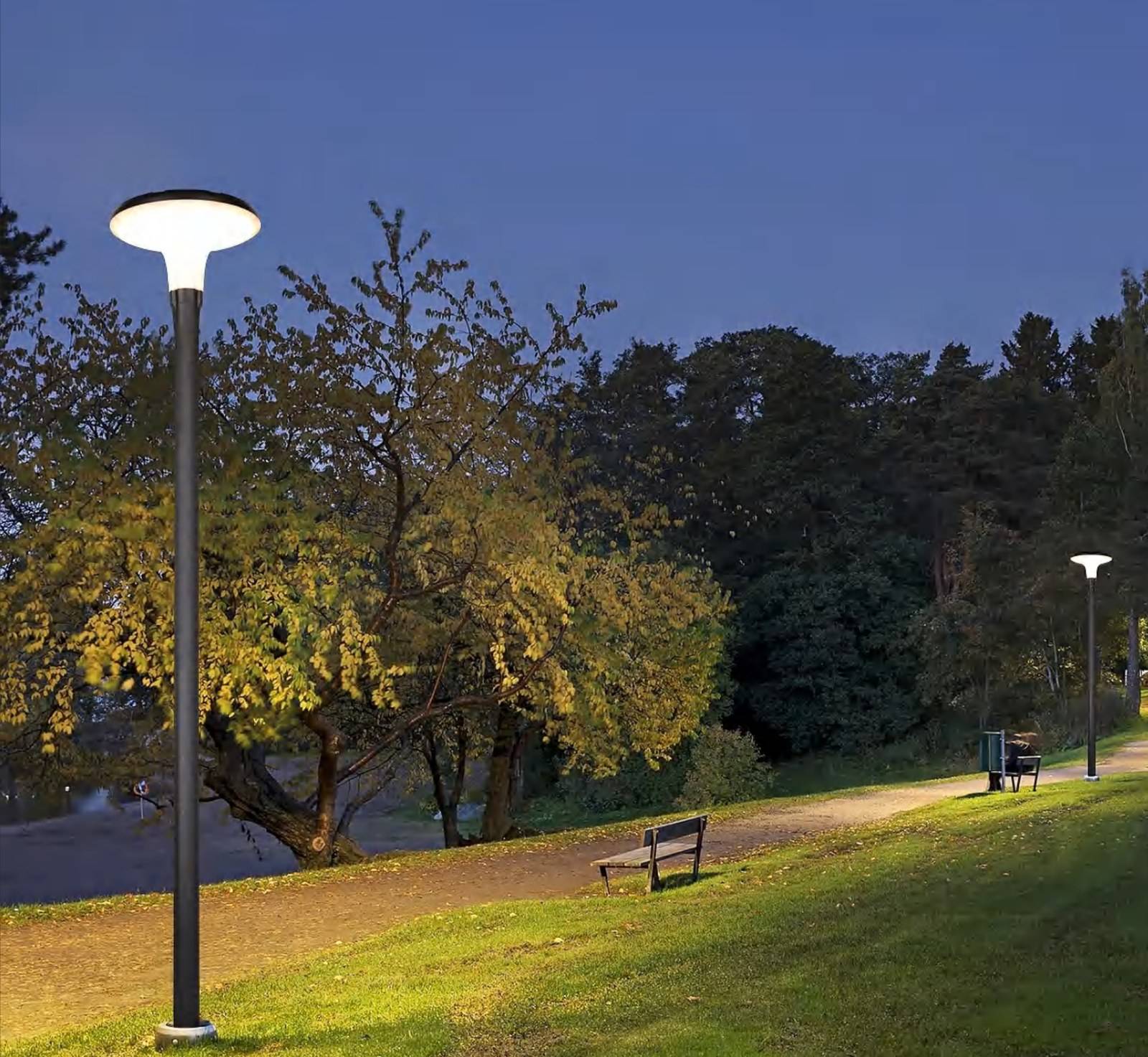

The ZC-GGD003 is a post-top solar garden light with a flared, finely ribbed diffuser that opens outwards like a shallow cone. The spread of the ribs gives a wide distribution of light close to the fitting, which is exactly what is wanted along garden borders, low-level walkways and planting beds where the lamp is not far above the ground.
It is offered in two sizes of the same shape. The -1 has a Ø530 mm head with a 5V/25 W panel, a 3.2V/30000 mAh battery and 160 LED chips; the -2 is the smaller Ø410 mm version with 5V/16 W, 3.2V/16000 mAh and 80 chips. Both use the same die-cast aluminium and PC construction, both charge in three to five hours and both offer light colour selectable between 3000 K and 6500 K.
Either size fits a Ø76 mm post, usually set between 2600 mm and 4000 mm high. If you tell us the length of the path or the area of the bed and how high you want the heads, we will suggest which of the two sizes to use and how many of them the scheme needs.
At a glance
| Model | ZC-GGD003-1 / -2 |
| Product type | Post-top solar garden light |
| Material | Die-casting aluminum + PC |
| Solar panel | 5V/25 W / 5V/16 W |
| Battery | 3.2V/30000 mAh / 3.2V/16000 mAh |
| LED chips | 160 PCS / 80 PCS |
| Charge time | 3–5 H |
| Colour temperature | 3000–6500 K |
| Luminaire size | Ø530 × H490 mm / Ø410 × H383 mm |
| Post | Ø76 mm, 2600–4000 mm |
| Ingress protection | IP65 |
| Typical application | Garden border, low walkway, planting bed |
Solar Garden Light – Flared Ribbed – ZC-GGD003 — technical parameters
| Item | ZC-GGD003-1 | ZC-GGD003-2 |
|---|---|---|
| Material | Die-casting aluminum + PC | Die-casting aluminum + PC |
| Solar panel | 5V/25 W | 5V/16 W |
| Battery | 3.2V/30000 mAh | 3.2V/16000 mAh |
| Quantity of LED chips | 160 PCS | 80 PCS |
| Charge time | 3–5 H | 3–5 H |
| Colour temperature | 3000–6500 K | 3000–6500 K |
| Size | Ø530 × H490 mm | Ø410 × H383 mm |
| Recommended post | Ø76 mm, 2600–4000 mm | Ø76 mm, 2600–4000 mm |
| Ingress protection | IP65 | IP65 |
Parameters are the supplier's published figures for the models listed. Tell us the area to be lit, the pole height and the lighting hours you require and we will confirm the exact configuration for your project.
