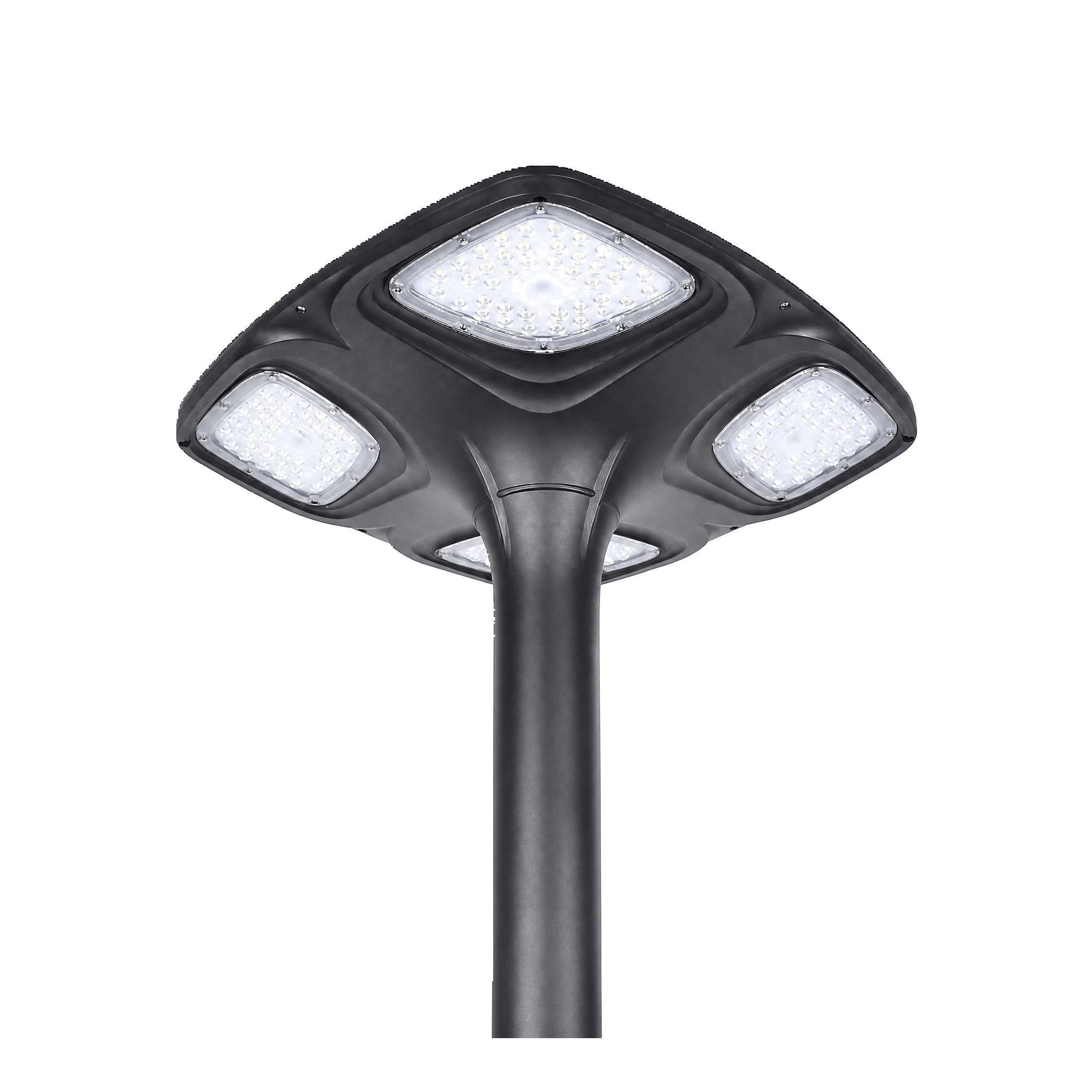

Solar Garden Light – Four-Disc Cluster – ZC-GGD0805
5V/36 W solar panel · 3.2V/45000 mAh · 160 LED chips · Ø560 × H230 mm · IP65
- Model: ZC-GGD0805
- Product type: Multi-head cluster post light
- Material: Die-casting aluminum
- Solar panel: 5V/36 W
- Battery: 3.2V/45000 mAh
- LED chips: 160 PCS
- Colour temperature: 3000–6500 K
- Luminaire size: Ø560 × H230 mm

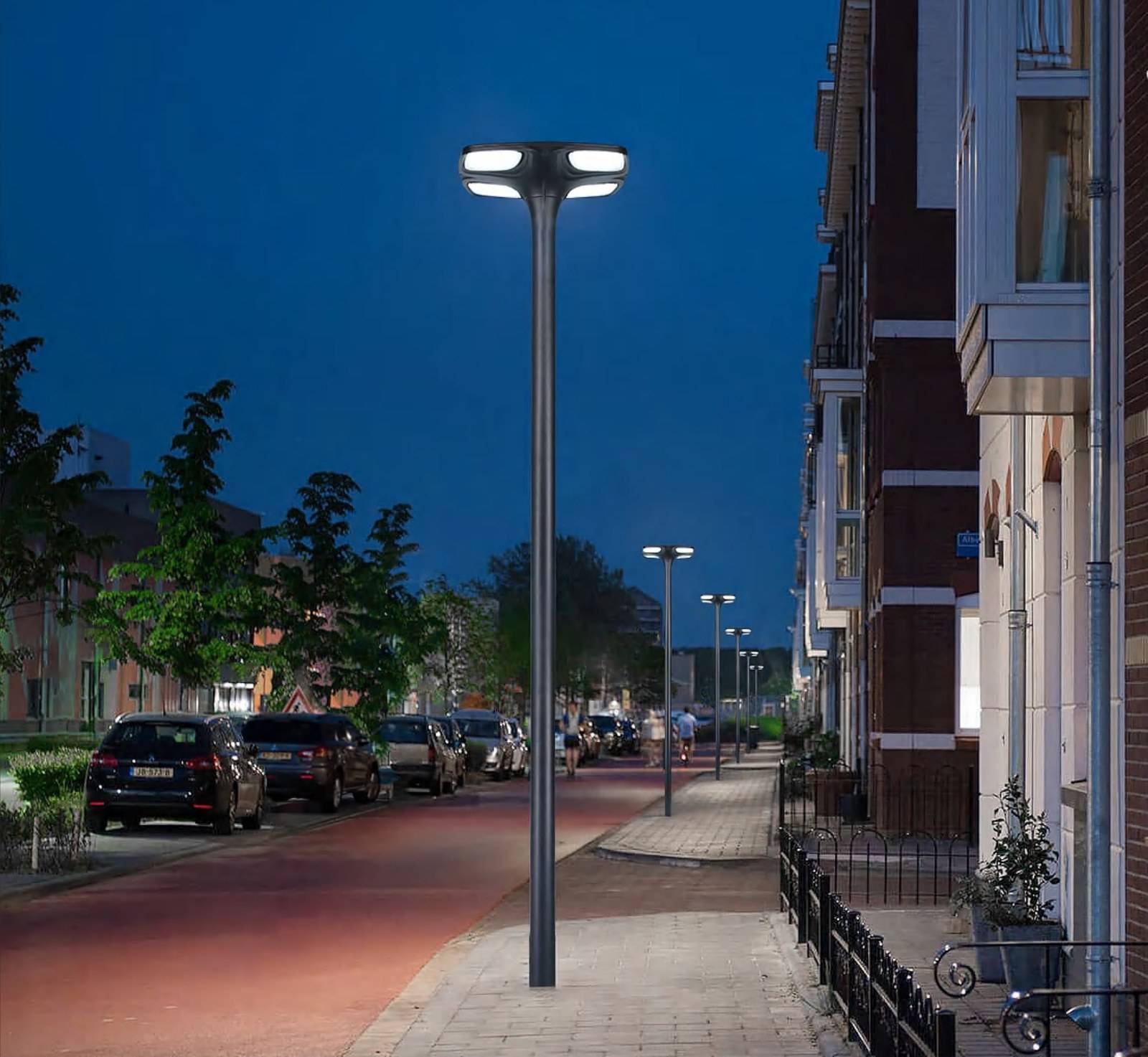

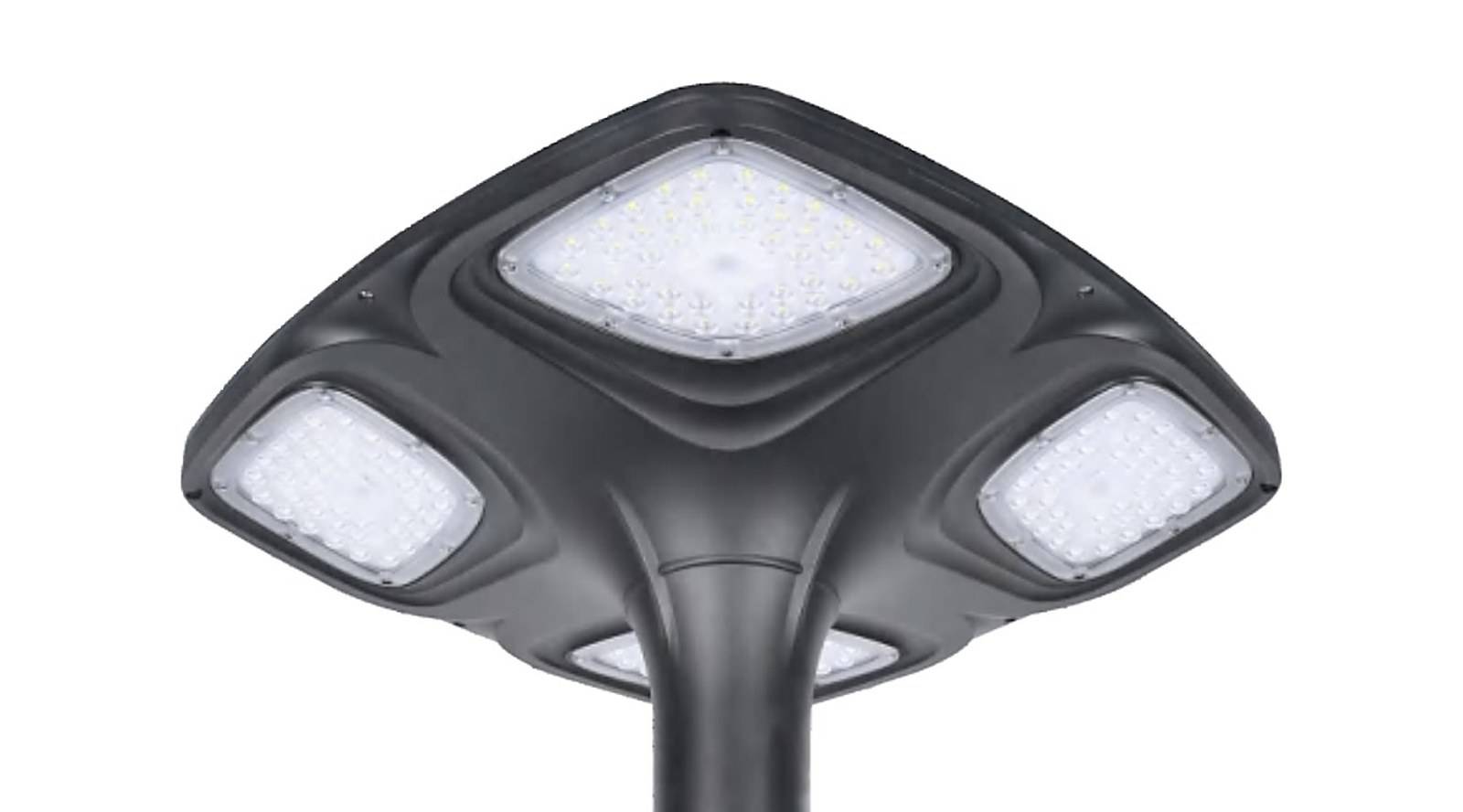

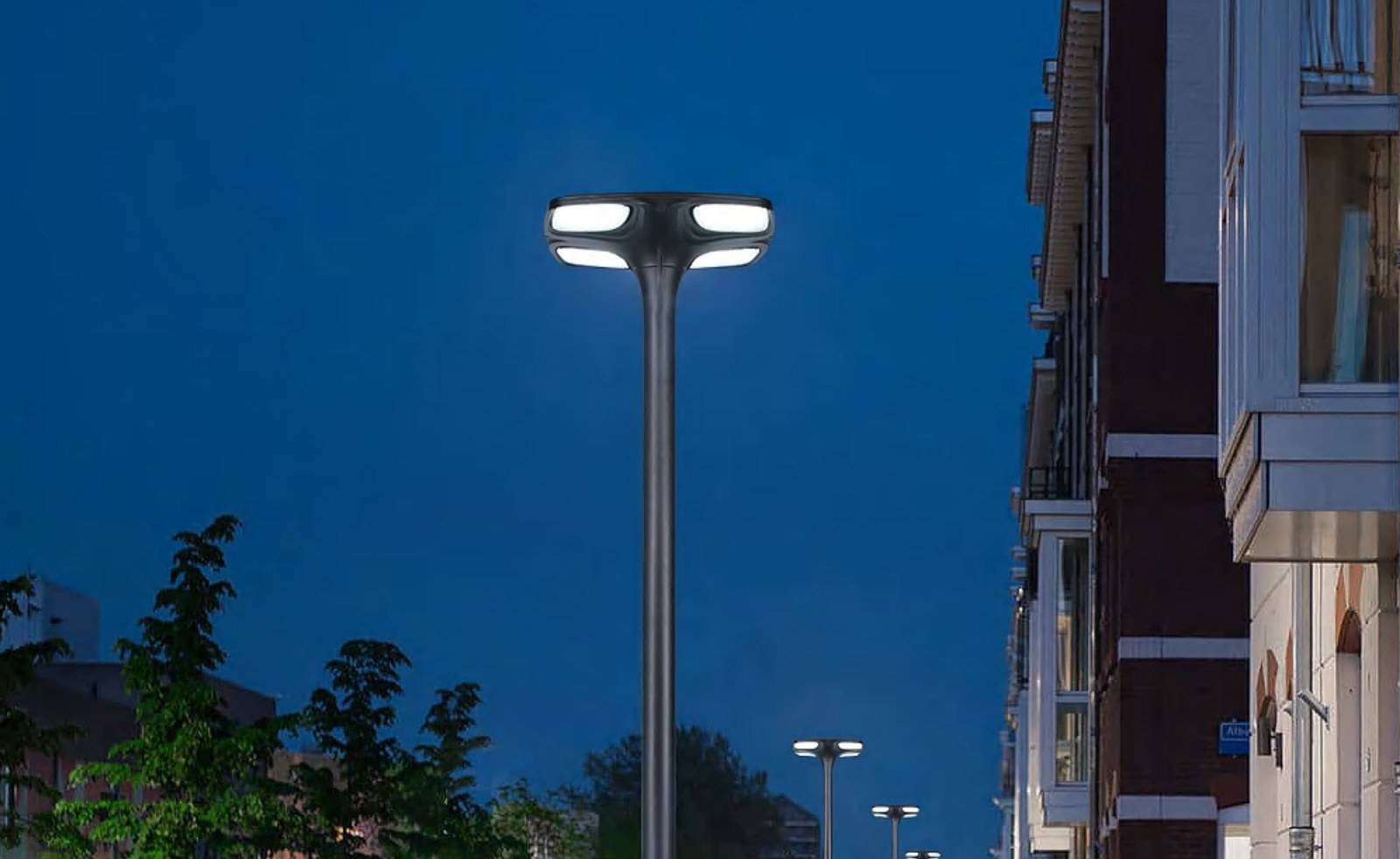

The ZC-GGD0805 is a post-top solar garden light built as a shallow four-disc cluster. Each of the four die-cast heads carries its own LED module, and together they spread the light outwards in four directions, which is what makes this shape useful where you need even illumination across a road, a parking bay or a wide courtyard rather than a bright circle under one lamp.
The solar panel is set into the top of the cluster and the 3.2V/45000 mAh lithium battery and controller are housed inside the central body. A 5V/36 W panel charges the battery in three to five hours of good sun, and the built-in optical sensor takes over at dusk. Light colour is selectable from 3000 K warm white to 6500 K daylight, so the same luminaire can be specified for a residential compound or for a municipal scheme.
Typical mounting is a Ø76 mm post between 2600 mm and 4000 mm high. If you tell us the width of the area to be lit and the mounting height you have in mind, we will work out how many of these four-head units the scheme needs and how far apart to space them.
At a glance
| Model | ZC-GGD0805 |
| Product type | Multi-head cluster post light |
| Material | Die-casting aluminum |
| Solar panel | 5V/36 W |
| Battery | 3.2V/45000 mAh |
| LED chips | 160 PCS |
| Charge time | 3–5 H |
| Colour temperature | 3000–6500 K |
| Luminaire size | Ø560 × H230 mm |
| Post | Ø76 mm, 2600–4000 mm |
| Ingress protection | IP65 |
| Typical application | Compound road, car park, courtyard, park |
Solar Garden Light – Four-Disc Cluster – ZC-GGD0805 — technical parameters
| Item | ZC-GGD0805 |
|---|---|
| Model | ZC-GGD0805 |
| Product type | Multi-head cluster post light |
| Material | Die-casting aluminum |
| Solar panel | 5V/36 W |
| Battery | 3.2V/45000 mAh |
| Quantity of LED chips | 160 PCS |
| Charge time | 3–5 H |
| Colour temperature | 3000–6500 K |
| Size | Ø560 × H230 mm |
| Recommended post | Ø76 mm, 2600–4000 mm |
| Ingress protection | IP65 |
Parameters are the supplier's published figures for the models listed. Tell us the area to be lit, the pole height and the lighting hours you require and we will confirm the exact configuration for your project.
