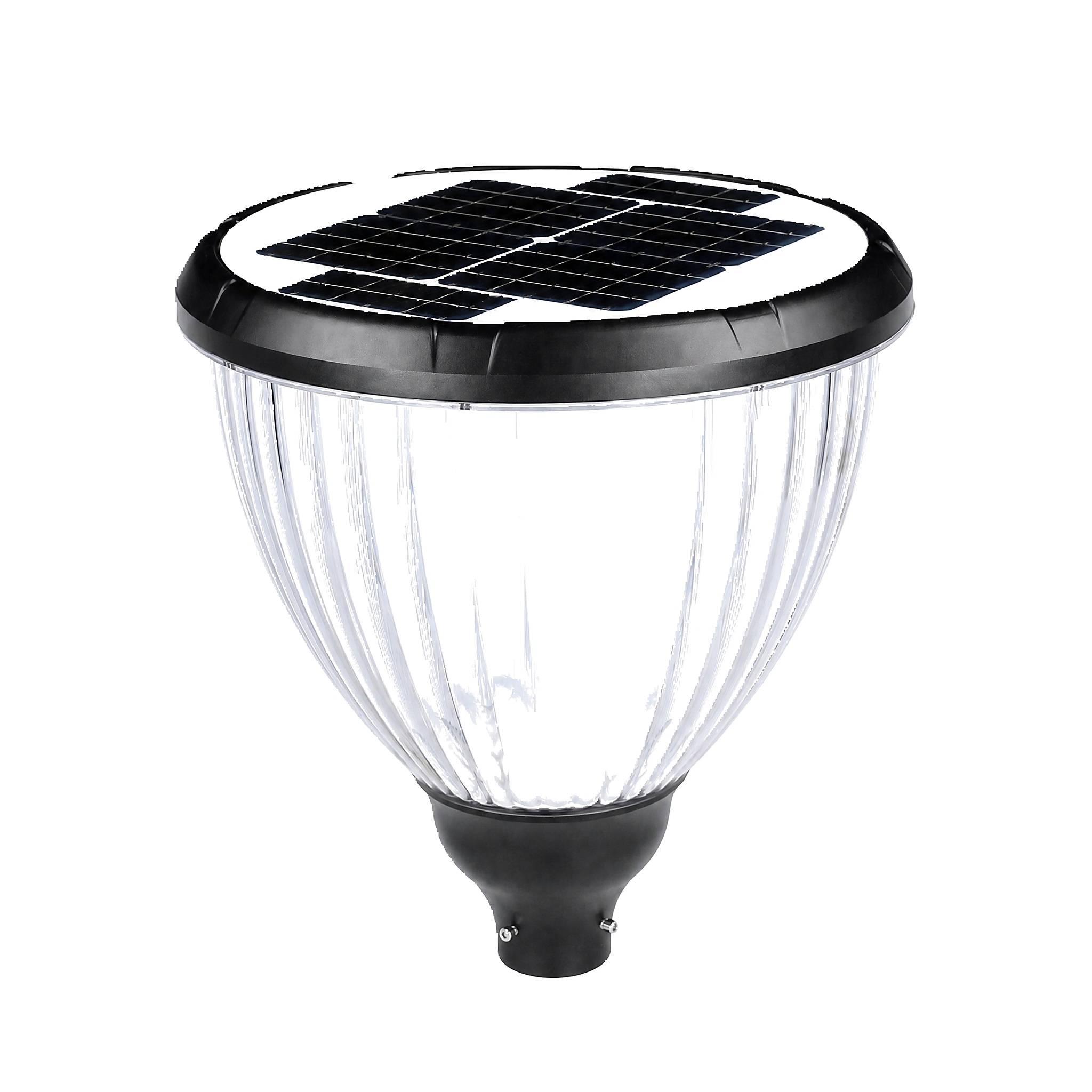

ZC-GGD1105 solar garden light, white background product photo
Solar Garden Light

Solar Garden Light – Pumpkin Post-Top – ZC-GGD1105

5V/28 W solar panel · 3.2V/36000 mAh · 160 LED chips · Ø530 × H580 mm · IP65

  • Model: ZC-GGD1105
  • Product type: Post-top solar garden light
  • Material: Die-cast aluminium + PC diffuser
  • Solar panel: 5V/28 W
  • Battery: 3.2V/36000 mAh
  • LED chips: 160 PCS
  • Light colour: Cool white and warm white
  • Size: Ø530 × H580 mm

The ZC-GGD1105 is a post-top solar garden light with the solar panel set into the crown of the luminaire and the battery and controller housed inside the die-cast aluminium body. The ribbed PC diffuser spreads the light sideways rather than downwards, so the fitting lights a wide circle of planting, paving or lawn instead of one bright spot. Because the panel, battery and electronics are all inside the lamp head, there is no separate panel to mount, no cable to run and no trenching.

It is the shape most often chosen for residential compounds, villa gardens, hotel landscaping, park entrances and community green spaces \u2014 anywhere a decorative post-top luminaire is wanted and a mains supply is not. The 160 LED chips are available in cool white or warm white, and the light is switched on and off by the built-in optical sensor, with the option of a time profile to stretch the battery through the night.

The mounting collar takes a standard \u00d878 mm inside diameter post. Tell us the area to be lit, the post height and the number of hours of light you need after a cloudy day and we will confirm the panel and battery configuration and quote accordingly.

At a glance

ModelZC-GGD1105
Product typePost-top solar garden light
MaterialDie-cast aluminium + PC diffuser
Solar panel5V/28 W
Battery3.2V/36000 mAh
LED chips160 PCS
Light colourCool white / warm white
SizeØ530 × H580 mm
Mounting collarØ78 mm inside / Ø89 mm outside
Ingress protectionIP65
Typical applicationCourtyard, villa, park, residential compound

Solar Garden Light – Pumpkin Post-Top – ZC-GGD1105 — technical parameters

ItemZC-GGD1105
ModelZC-GGD1105
Product typePost-top solar garden light
MaterialDie-cast aluminium + PC diffuser
Solar panel5V/28 W
Battery3.2V/36000 mAh
Quantity of LED chips160 PCS
Light colourCool white / warm white
Housing colourSand black
SizeØ530 × H580 mm
Mounting collarØ78 mm inside / Ø89 mm outside
Ingress protectionIP65

Parameters are the supplier's published figures for the models listed. Tell us the area to be lit, the pole height and the lighting hours you require and we will confirm the exact configuration for your project.
