Solar Garden Light – Bollard and Two-Arm – ZC-GGD2806
5V/5 W, 5V/10 W or 5V/15 W solar panel · 30, 60 or 90 LED chips · bollard and post versions · IP65
- Model: ZC-GGD2806-1 / -2 / -3
- Product type: Solar bollard and post light
- Material: Die-cast aluminium + PC
- Solar panel: 5V/5 W · 5V/10 W · 5V/15 W
- Battery: 8000 · 16000 · 24000 mAh
- LED chips: 30 · 60 · 90 PCS
- Colour temperature: 3000–6500 K
- Head span: 235 × 235 · Ø795 · Ø750 mm

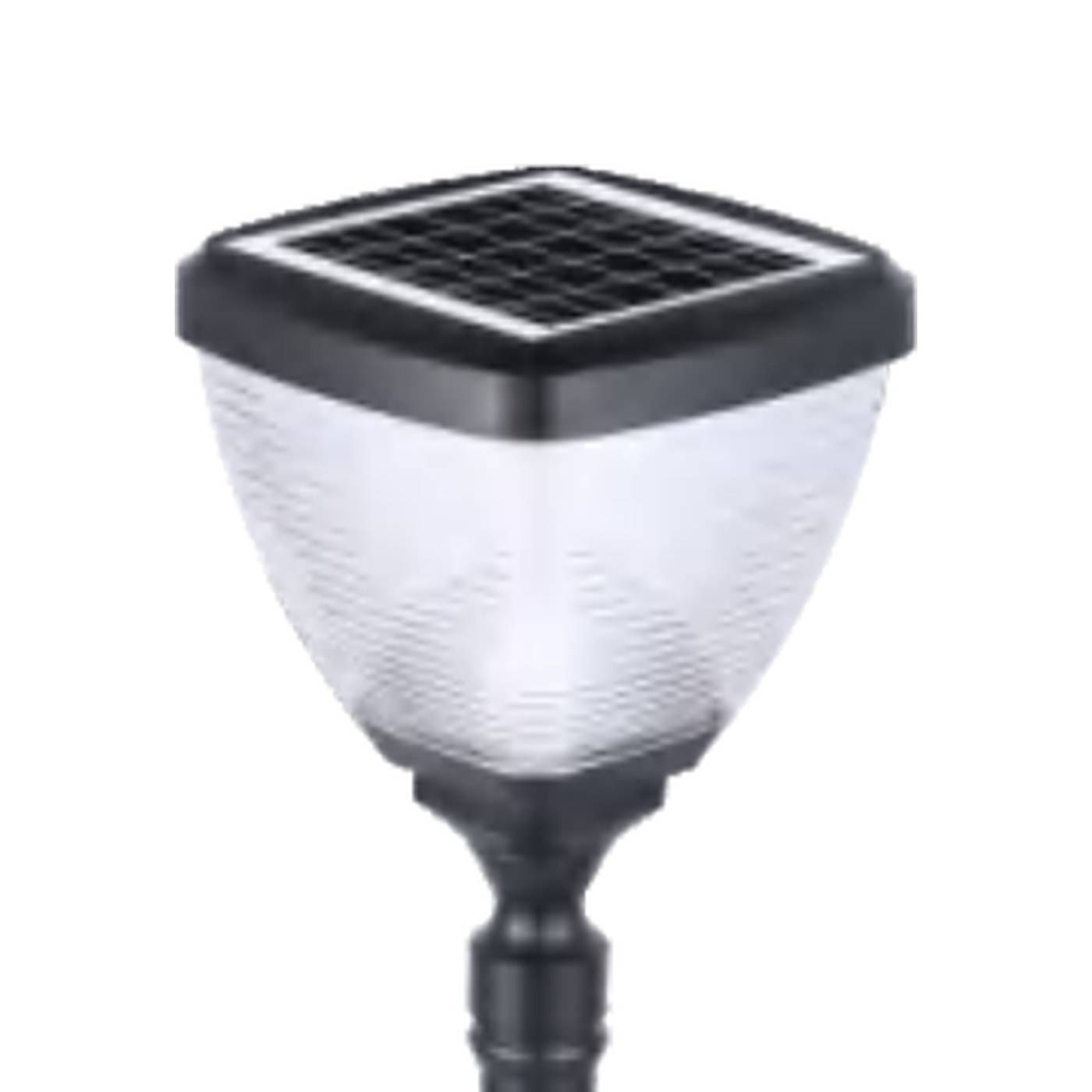

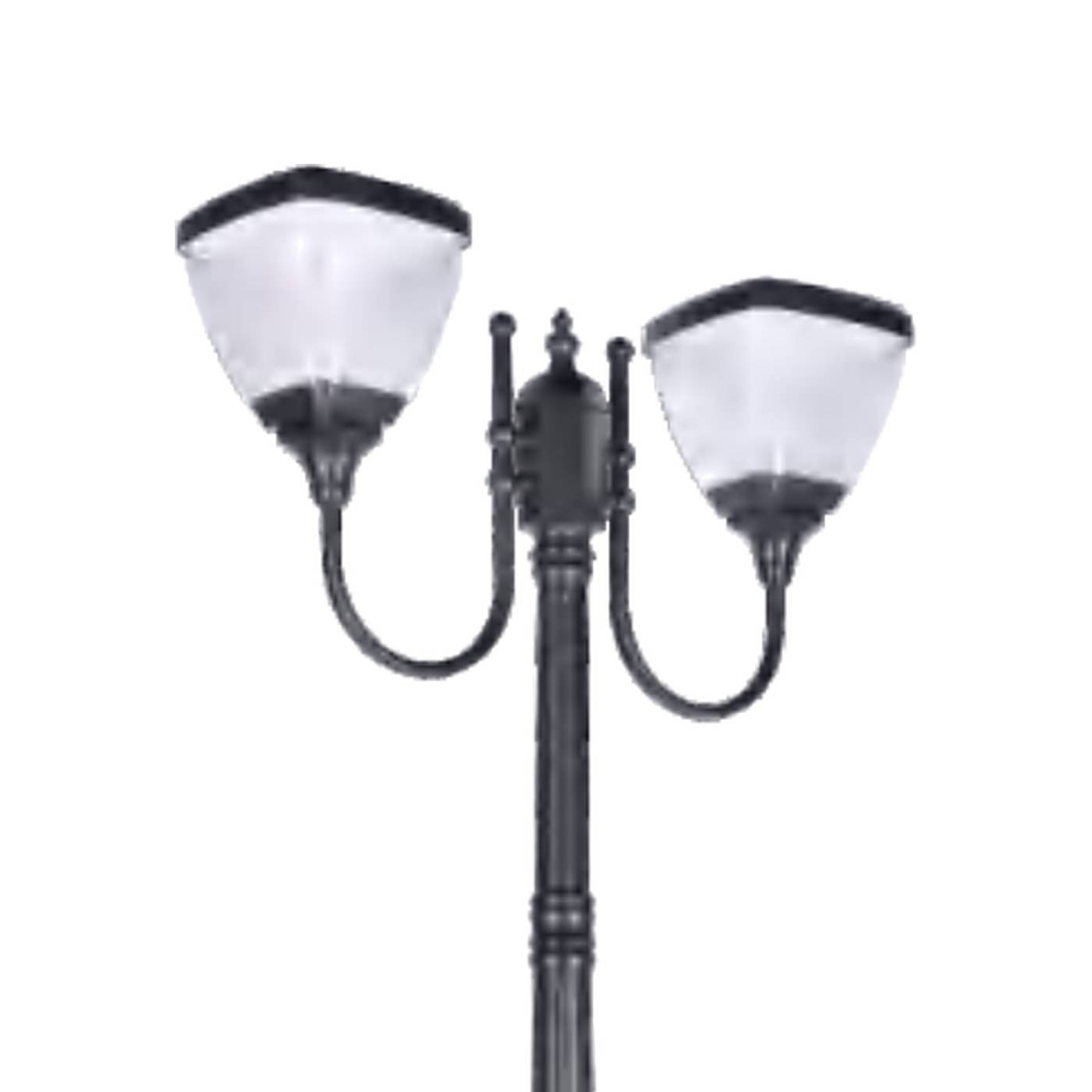

The ZC-GGD2806 works the same way as the rest of this range but in a squarer, faceted style. ZC-GGD2806-1 is a single-head bollard on a 1000 to 2500 mm pole with a 235 × 235 mm head; ZC-GGD2806-2 and ZC-GGD2806-3 are two-arm post-top luminaires with two faceted heads on a cross-arm at 2600 mm. Each head carries its own solar panel in the crown and its own battery and controller inside the die-cast aluminium body, so there is no external panel and no cable anywhere on the installation.
The output steps with the model: 30 LED chips on a 5V/5 W panel with a 3.2V/8000 mAh battery for ZC-GGD2806-1, 60 LED chips on a 5V/10 W panel with a 3.2V/16000 mAh battery for ZC-GGD2806-2, and 90 LED chips on a 5V/15 W panel with a 3.2V/24000 mAh battery for ZC-GGD2806-3. The faceted diffusers spread the light sideways, which keeps glare down at eye level and makes the family suitable for garden paths and planting schemes as well as for plazas and compound roads. All three charge in three to five hours of good sun, switch on at dusk, and offer a 3000–6500 K colour temperature.
Tell us the site and we will confirm the mix of bollards and two-arm posts and how many of each the layout needs.
At a glance
| Model | ZC-GGD2806-1 |
| Model | ZC-GGD2806-2 |
| Model | ZC-GGD2806-3 |
| Product type | Solar bollard / post light |
| Material | Die-cast aluminium + PC |
| Solar panel | 5V/5 W |
| Solar panel | 5V/10 W |
| Solar panel | 5V/15 W |
| Battery | 3.2V/8000 mAh |
| Battery | 3.2V/16000 mAh |
| Battery | 3.2V/24000 mAh |
| LED chips | 30 PCS |
| LED chips | 60 PCS |
| LED chips | 90 PCS |
| Charge time | 3–5 H |
| Colour temperature | 3000–6500 K |
| Ingress protection | IP65 |
Solar Garden Light – Bollard and Two-Arm – ZC-GGD2806 — technical parameters
| Item | ZC-GGD2806-1 | ZC-GGD2806-2 | ZC-GGD2806-3 |
|---|---|---|---|
| Model | ZC-GGD2806-1 | ZC-GGD2806-2 | ZC-GGD2806-3 |
| Product type | Solar bollard / post light | Two-arm solar post light | Two-arm solar post light |
| Material | Die-cast aluminium + PC | Die-cast aluminium + PC | Die-cast aluminium + PC |
| Solar panel | 5V/5 W | 5V/10 W | 5V/15 W |
| Battery | 3.2V/8000 mAh | 3.2V/16000 mAh | 3.2V/24000 mAh |
| Quantity of LED chips | 30 PCS | 60 PCS | 90 PCS |
| Charge time | 3–5 H | 3–5 H | 3–5 H |
| Colour temperature | 3000–6500 K | 3000–6500 K | 3000–6500 K |
| Size | 235 × 235 × H1000–2500 mm | Ø795 × H2600 mm | Ø750 × H2600 mm |
| Ingress protection | IP65 | IP65 | IP65 |
Parameters are the supplier's published figures for the models listed. Tell us the area to be lit, the pole height and the lighting hours you require and we will confirm the exact configuration for your project.
