Solar Garden Light – Bollard and Two-Arm – ZC-GGD4105
5V/4.5 W, 5V/9 W or 5V/13.5 W solar panel · 30, 60 or 90 LED chips · bollard and post versions · IP65
- Model: ZC-GGD4105-1 / -2 / -3
- Product type: Solar bollard and post light
- Material: Die-cast aluminium + PC
- Solar panel: 5V/4.5 W · 5V/9 W · 5V/13.5 W
- Battery: 8000 · 16000 · 24000 mAh
- LED chips: 30 · 60 · 90 PCS
- Colour temperature: 3000–6500 K
- Head span: Ø260 · Ø800 · Ø750 mm

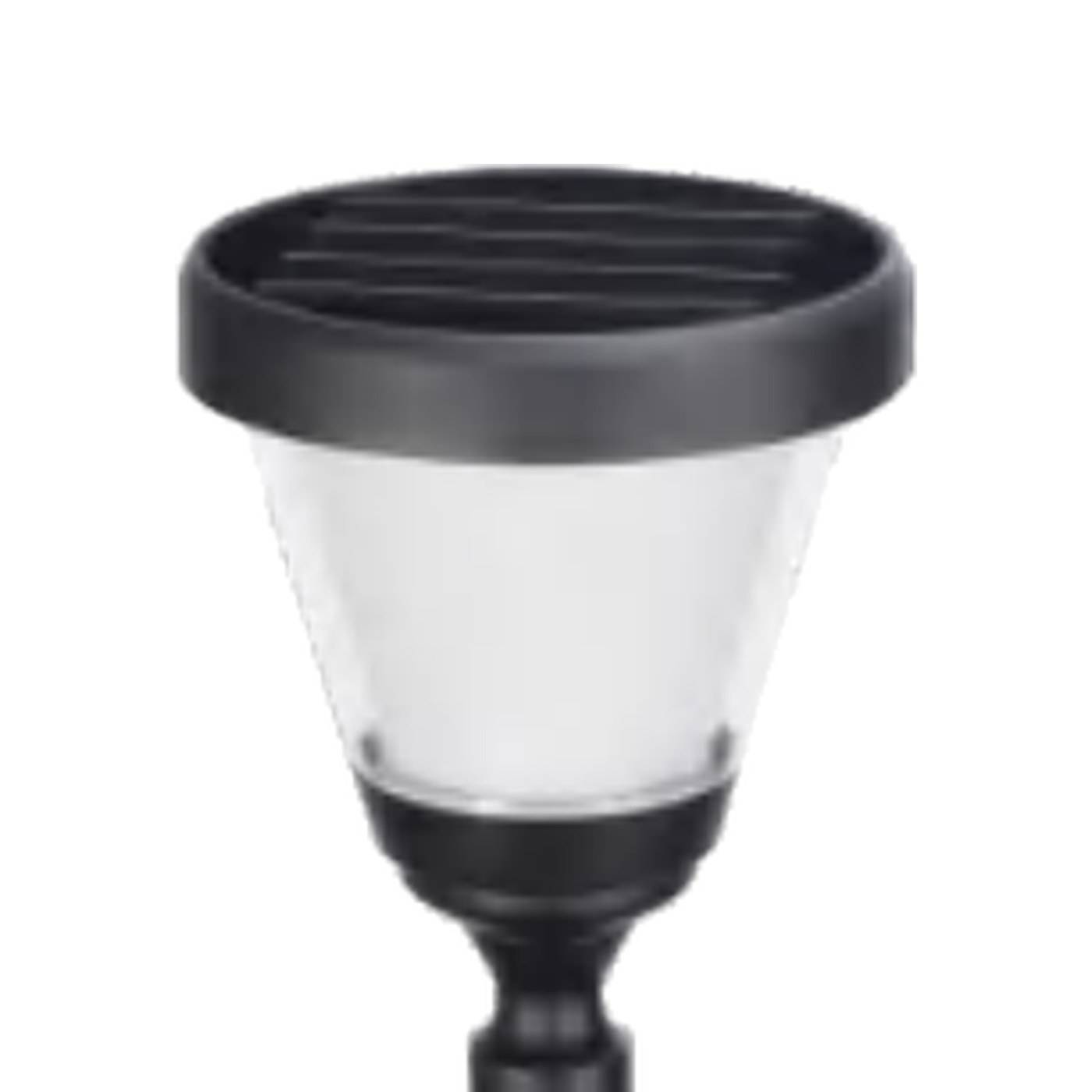

The ZC-GGD4105 covers a complete low-level lighting scheme in one model family: ZC-GGD4105-1 is a single-head bollard on a 1000 to 2500 mm pole, while ZC-GGD4105-2 and ZC-GGD4105-3 are two-arm post-top luminaires on a 2600 mm post. Every head carries its own solar panel in the crown with the battery and controller inside the die-cast aluminium body, so each luminaire stands on its own post with no cable and no trenching.

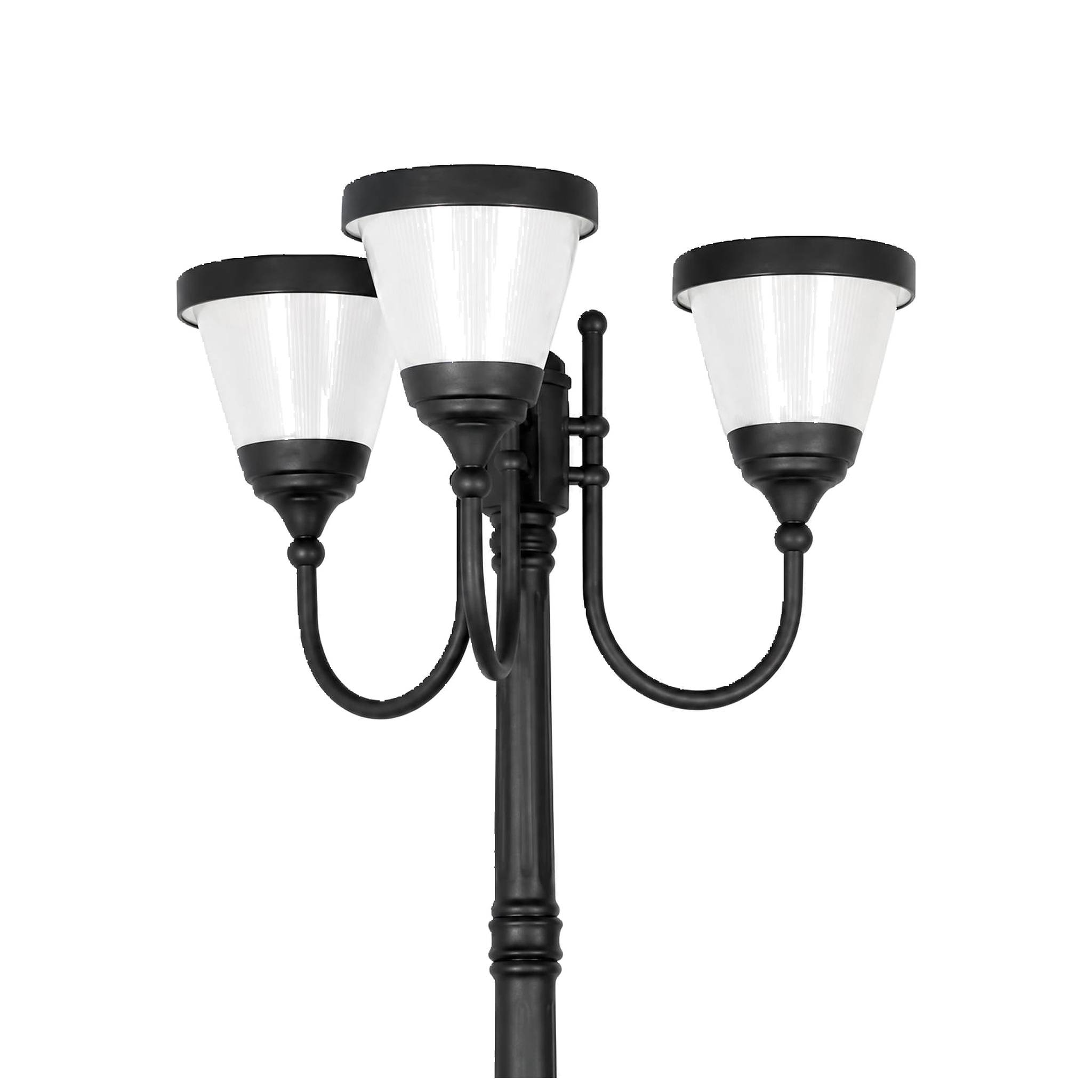

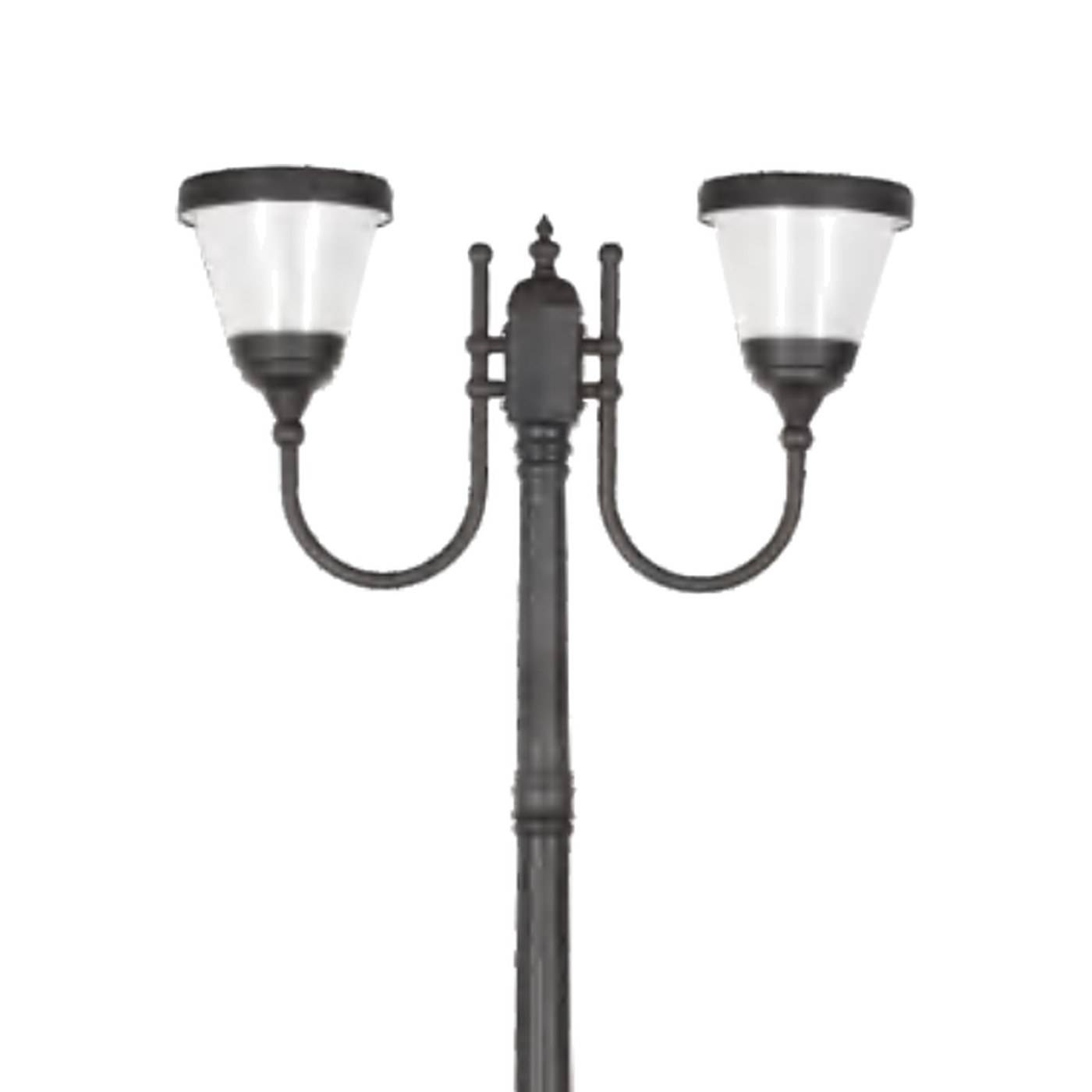

Using one family across a site keeps the styling consistent while letting the light level change with the job. The ZC-GGD4105-1 puts 30 LED chips on a 5V/4.5 W panel with a 3.2V/8000 mAh battery for paths, lawn edges and planting borders. The ZC-GGD4105-2 raises that to 60 LED chips on a 5V/9 W panel with a 3.2V/16000 mAh battery, and the ZC-GGD4105-3 to 90 LED chips on a 5V/13.5 W panel with a 3.2V/24000 mAh battery, for plazas, forecourts and compound roads where fewer, taller lighting points are wanted. All three charge in three to five hours of good sun, switch on at dusk through the optical sensor, and offer 3000–6500 K colour temperature.
Send us the site layout and we will propose the mix of bollards and two-arm posts, their positions and the spacing.
At a glance
| Model | ZC-GGD4105-1 |
| Model | ZC-GGD4105-2 |
| Model | ZC-GGD4105-3 |
| Product type | Solar bollard / post light |
| Material | Die-cast aluminium + PC |
| Solar panel | 5V/4.5 W |
| Solar panel | 5V/9 W |
| Solar panel | 5V/13.5 W |
| Battery | 3.2V/8000 mAh |
| Battery | 3.2V/16000 mAh |
| Battery | 3.2V/24000 mAh |
| LED chips | 30 PCS |
| LED chips | 60 PCS |
| LED chips | 90 PCS |
| Charge time | 3–5 H |
| Colour temperature | 3000–6500 K |
| Ingress protection | IP65 |
Solar Garden Light – Bollard and Two-Arm – ZC-GGD4105 — technical parameters
| Item | ZC-GGD4105-1 | ZC-GGD4105-2 | ZC-GGD4105-3 |
|---|---|---|---|
| Model | ZC-GGD4105-1 | ZC-GGD4105-2 | ZC-GGD4105-3 |
| Product type | Solar bollard / post light | Two-arm solar post light | Two-arm solar post light |
| Material | Die-cast aluminium + PC | Die-cast aluminium + PC | Die-cast aluminium + PC |
| Solar panel | 5V/4.5 W | 5V/9 W | 5V/13.5 W |
| Battery | 3.2V/8000 mAh | 3.2V/16000 mAh | 3.2V/24000 mAh |
| Quantity of LED chips | 30 PCS | 60 PCS | 90 PCS |
| Charge time | 3–5 H | 3–5 H | 3–5 H |
| Colour temperature | 3000–6500 K | 3000–6500 K | 3000–6500 K |
| Size | Ø260 × H1000–2500 mm | Ø800 × H2600 mm | Ø750 × H2600 mm |
| Ingress protection | IP65 | IP65 | IP65 |
Parameters are the supplier's published figures for the models listed. Tell us the area to be lit, the pole height and the lighting hours you require and we will confirm the exact configuration for your project.
