ZC-LD8060 Solar Street Light – All-in-One Solar Path & Estate Road Light
18V/60 W · 3.2V/60000 mAh · 90 LED chips · 823 × 416 × 200 mm · IP65
- Model: ZC-LD8060 / ZC-LD8090 / ZC-LD8120
- Product type: All-in-one solar path and estate road light
- Material: Die-casting aluminum + PC lens
- Solar panel: 18V/60 W · 18V/90 W · 18V/120 W
- Battery: 3.2V/60000 mAh · 3.2V/120000 mAh · 3.2V/160000 mAh
- LED chips: 90 / 120 / 150 PCS (5054)
- Light colour: Cool white
- Recommended pole: 5–6 m · 6–8 m · 8–12 m

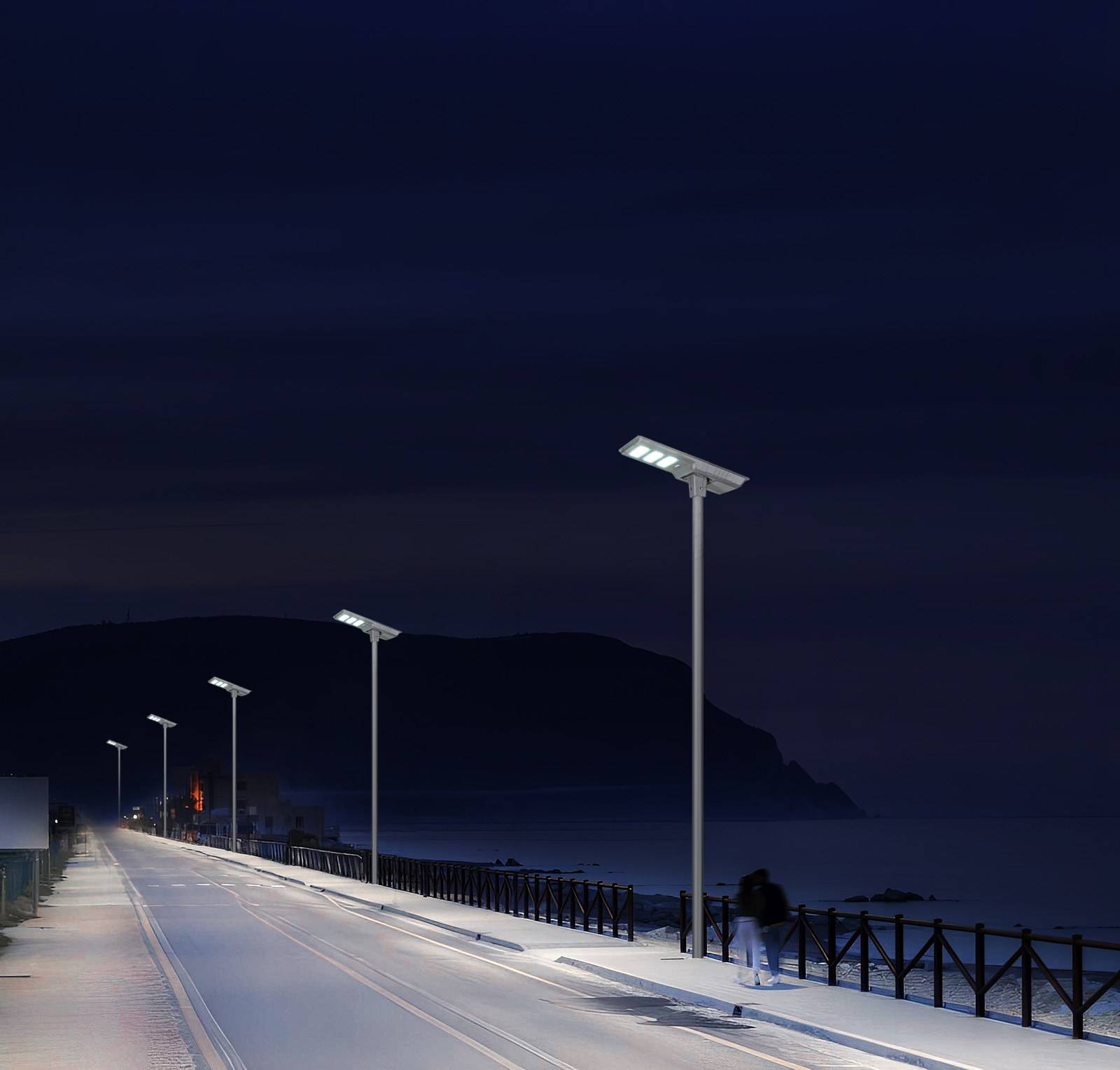

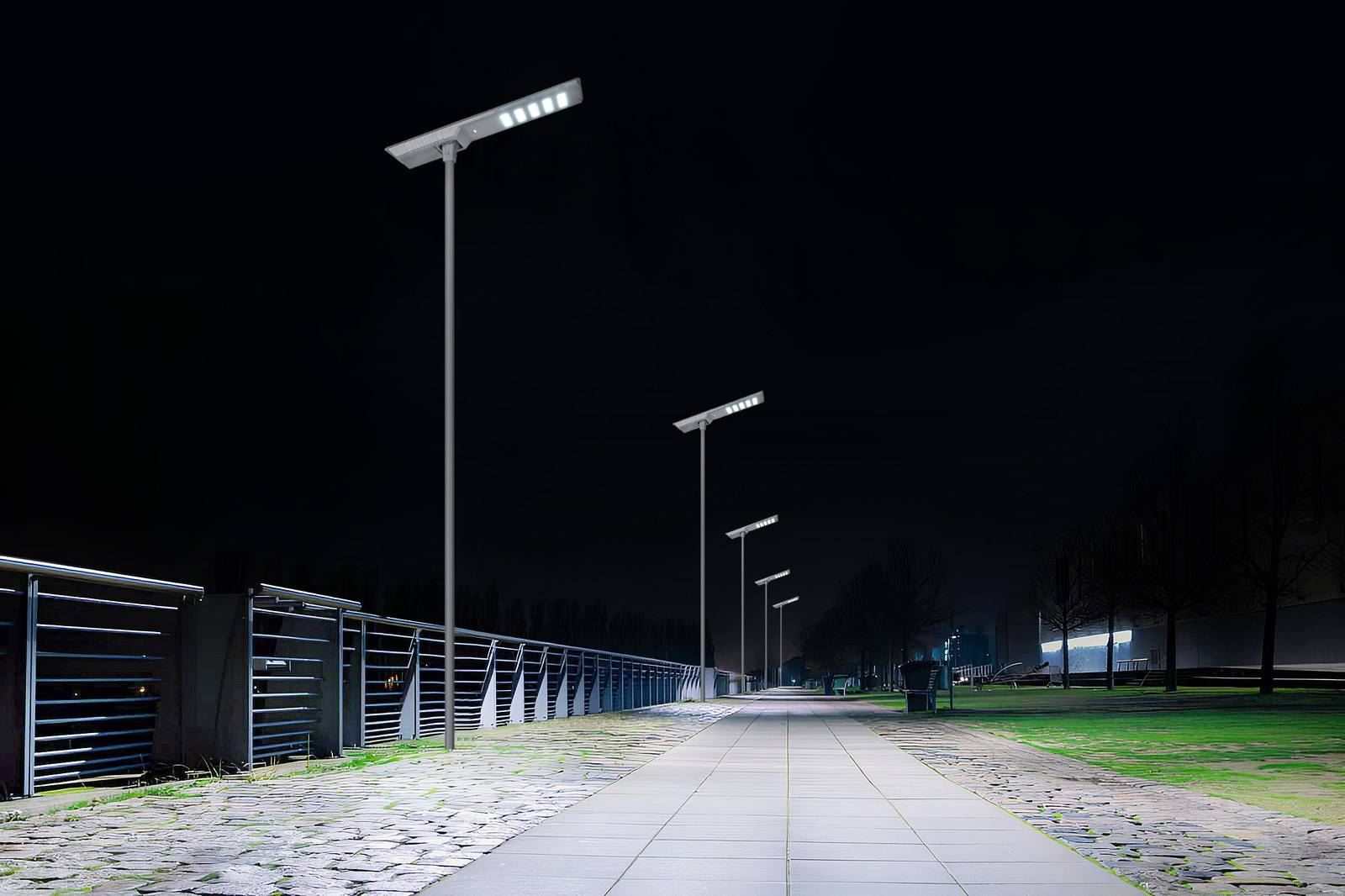

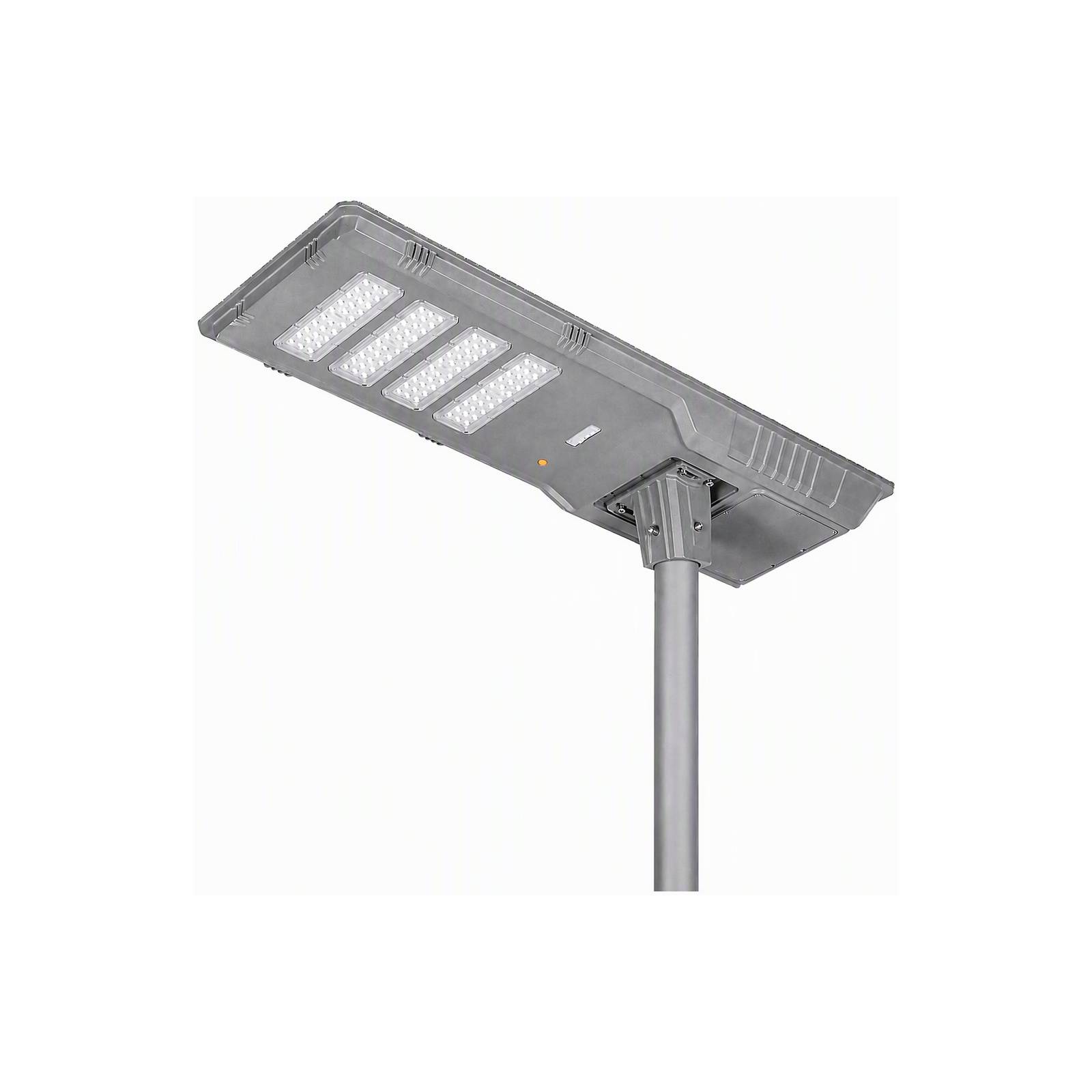

The ZC-LD8060 is an all-in-one solar light in which the monocrystalline panel forms the top face of the luminaire and the lithium battery sits behind it in the same die-cast aluminium housing. There is nothing to mount separately and nothing to cable: the lamp is slipped over the top of a post and switched on. It is the flat, low-profile shape that suits estate roads, long driveways, service lanes, industrial yards and the internal roads of a residential development.
Three sizes share the same 416 mm wide body, so the same mounting detail and the same look can be used at different points of one scheme: the 823 mm ZC-LD8060 on 5 m to 6 m posts for paths and driveways, the 1180 mm ZC-LD8090 on 6 m to 8 m posts for internal roads, and the 1500 mm ZC-LD8120 on 8 m to 12 m posts for the main access road. Panel, battery and LED count scale with the size.

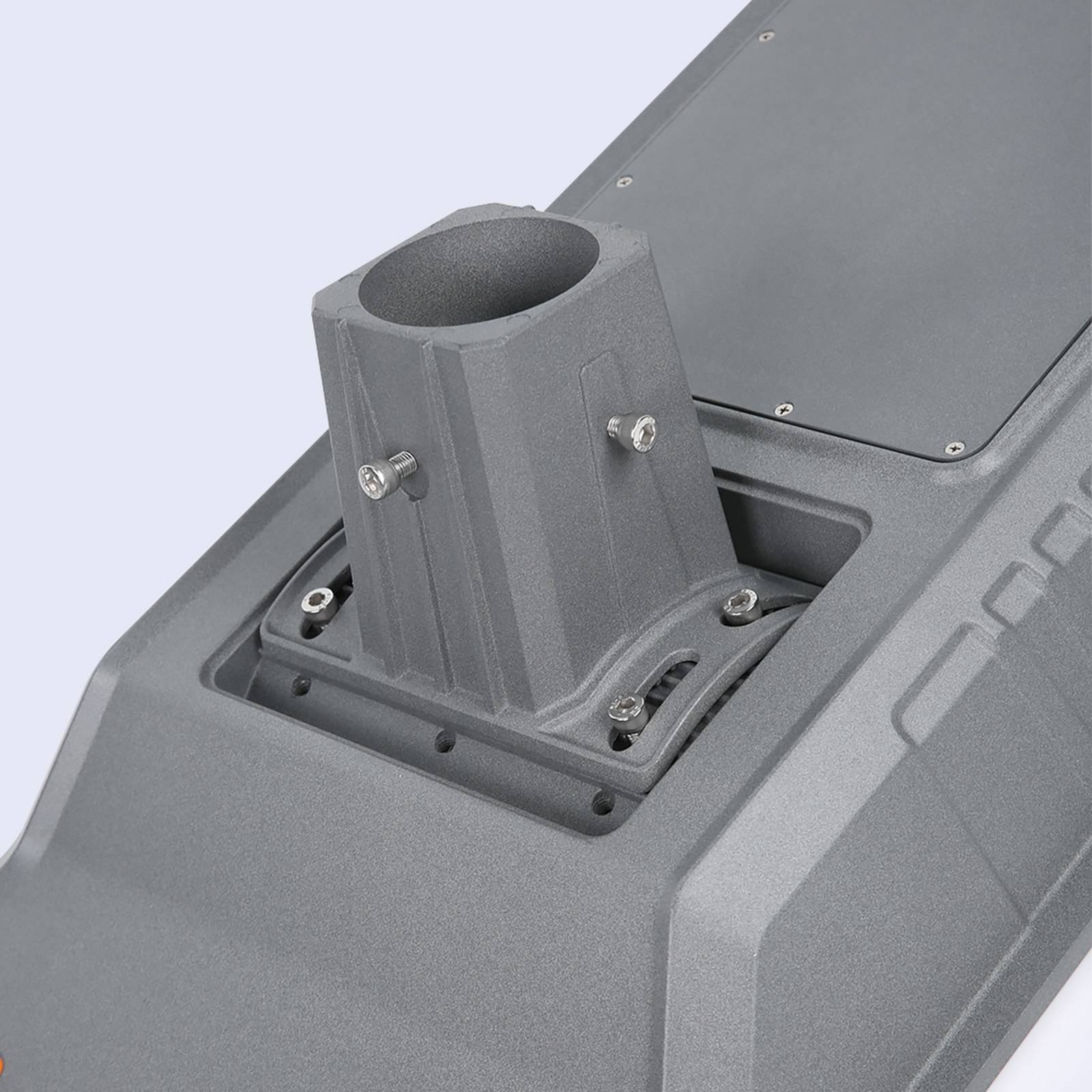

Being self-powered, they are normally chosen where a mains supply would mean trenching across finished ground. The fixing takes a pole of 76 mm inside diameter. Tell us the road width, the mounting height and the lighting hours you need and we will confirm which of the three sizes and what spacing will give the lighting class you are working to.
At a glance
| Model | ZC-LD8060 (small) / ZC-LD8090 (medium) / ZC-LD8120 (large) |
| Product type | All-in-one solar path and estate road light |
| Material | Die-casting aluminum + PC lens |
| Solar panel | 18V/60 W · 18V/90 W · 18V/120 W |
| Battery | 3.2V/60000 mAh · 3.2V/120000 mAh · 3.2V/160000 mAh |
| LED chips | 90 PCS · 120 PCS · 150 PCS (5054) |
| Light colour | Cool white |
| Size | 823 × 416 × 200 mm · 1180 × 416 × 200 mm · 1500 × 416 × 200 mm |
| Recommended pole | 5–6 m · 6–8 m · 8–12 m |
| Mounting | Ø76 mm inside diameter pole |
| Ingress protection | IP65 |
ZC-LD8060 Solar Street Light – All-in-One Solar Path & Estate Road Light — technical parameters
| Item | ZC-LD8060 (small) | ZC-LD8090 (medium) | ZC-LD8120 (large) |
|---|---|---|---|
| Product type | All-in-one solar light | All-in-one solar light | All-in-one solar light |
| Material | Die-casting aluminum + PC lens | Die-casting aluminum + PC lens | Die-casting aluminum + PC lens |
| Solar panel | 18V/60 W | 18V/90 W | 18V/120 W |
| Battery | 3.2V/60000 mAh | 3.2V/120000 mAh | 3.2V/160000 mAh |
| Quantity of LED chips | 90 PCS (5054) | 120 PCS (5054) | 150 PCS (5054) |
| Light colour | Cool white | Cool white | Cool white |
| Housing colour | Grey | Grey | Grey |
| Size | 823 × 416 × 200 mm | 1180 × 416 × 200 mm | 1500 × 416 × 200 mm |
| Recommended pole | 5–6 m | 6–8 m | 8–12 m |
| Mounting | Ø76 mm inside diameter pole | Ø76 mm inside diameter pole | Ø76 mm inside diameter pole |
| Ingress protection | IP65 | IP65 | IP65 |
Parameters are the supplier's published figures for the models listed. Tell us the area to be lit, the pole height and the lighting hours you require and we will confirm the exact configuration for your project.
