ZC-TYD2808 Solar Garden Light – Moonlight Cup Post & Tree Light
5V/38 W · 3.2V/60000 mAh · 150 LED chips · 700 × 520 × 665 mm · 3000–6500 K · IP65
- Model: ZC-TYD2808
- Product type: Post-top / tree-mounted garden light
- Material: Die-cast aluminium + PC lens
- Solar panel: 5V/38 W
- Battery: 3.2V/60000 mAh
- LED chips: 150 PCS
- Colour temperature: 3000–6500 K
- Size: 700 × 520 × 665 mm

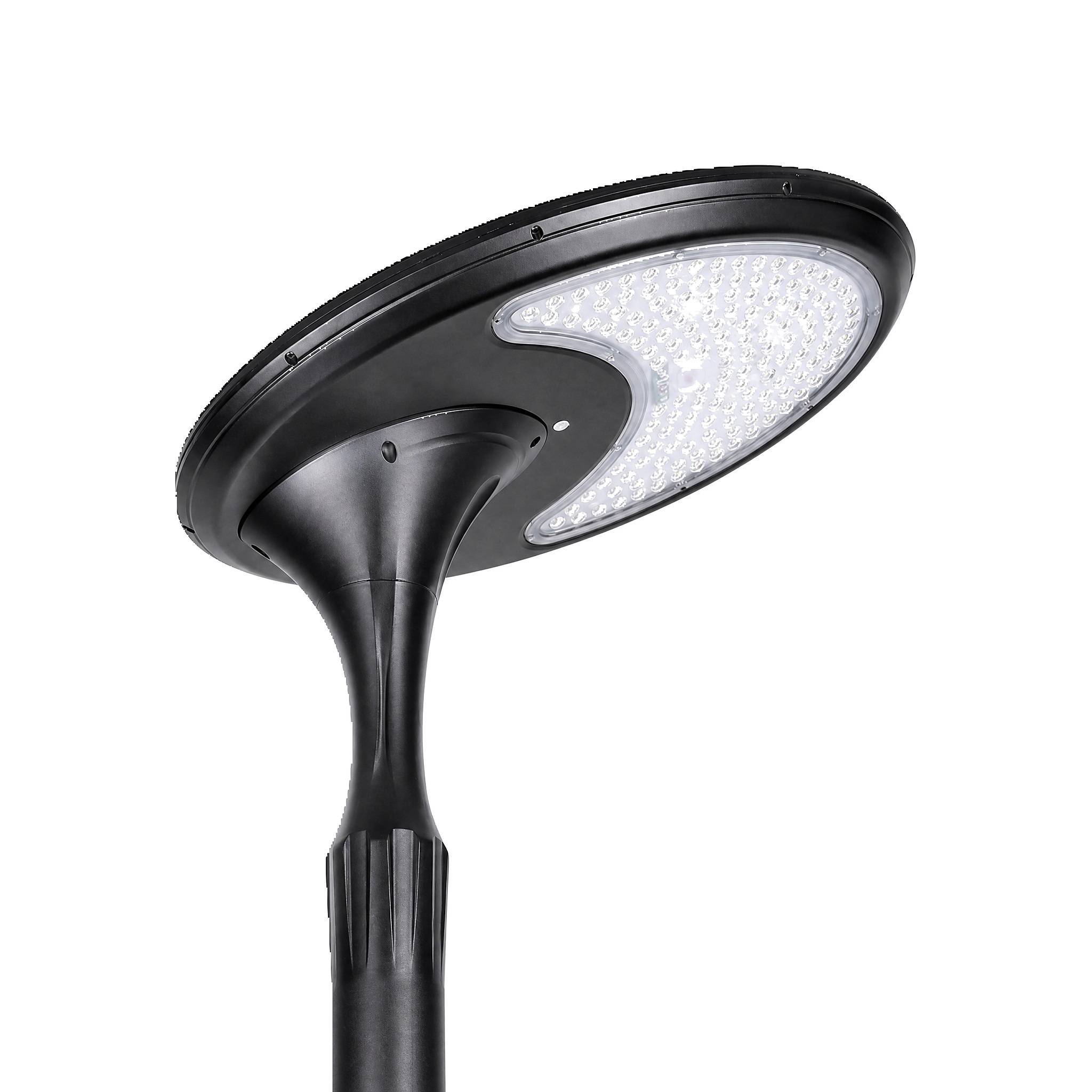

The ZC-TYD2808 is a shallow, saucer-shaped garden luminaire \u2014 a crescent of LED lens on one side of the disc, a solar panel across the other. The shape lets it work in two ways: mounted on top of a 3 m to 5 m post as a decorative post-top garden light, or fixed to a tree, pergola or wall bracket where a conventional head would be too bulky. The die-cast aluminium body and PC lens keep it weather-tight at IP65.
With a 5V/38 W panel and a 3.2V/60000 mAh lithium battery it is the larger member of the family, which is why it is usually specified for hotel gardens, resort walkways, clubhouse squares and residential compounds rather than for small private plots. 150 LED chips give a broad, soft wash of light and the colour temperature is selectable from 3000 K to 6500 K.
The same luminaire is available in three build options: the solar post-top shown here, a 220 V mains version rated 80 W for sites that already have power on the post, and a pole-integrated version supplied as a complete unit with a 3 m, 4 m or 5 m post. Nothing is wired together on site \u2014 the standard fixing takes a 78 mm inside diameter spigot.
At a glance
| Model | ZC-TYD2808 |
| Product type | Post-top / tree-mounted garden light |
| Material | Die-cast aluminium + PC lens |
| Solar panel | 5V/38 W |
| Battery | 3.2V/60000 mAh |
| LED chips | 150 PCS |
| Charge time | 3–5 H |
| Colour temperature | 3000–6500 K |
| Size | 700 × 520 × 665 mm |
| Mounting | Ø78 mm inside diameter spigot |
| Ingress protection | IP65 |
ZC-TYD2808 Solar Garden Light – Moonlight Cup Post & Tree Light — technical parameters
| Item | ZC-TYD2808 (solar) | ZC-TYD2808 (mains) |
|---|---|---|
| Product type | Post-top / tree-mounted garden light | Post-top / tree-mounted garden light |
| Material | Die-cast aluminium + PC lens | Die-cast aluminium + PC lens |
| Power supply | 5V/38 W solar panel + 3.2V/60000 mAh battery | 220 V mains, 80 W rated |
| Quantity of LED chips | 150 PCS | 150 PCS |
| Charge time | 3–5 H | — |
| Colour temperature | 3000–6500 K | 3000–6500 K |
| Size | 700 × 520 × 665 mm | 700 × 520 × 665 mm |
| Mounting | Ø78 mm inside diameter spigot | Ø78 mm inside diameter spigot |
| Housing colour | Sand black | Sand grey |
| Ingress protection | IP65 | IP65 |
Parameters are the supplier's published figures for the models listed. Tell us the area to be lit, the pole height and the lighting hours you require and we will confirm the exact configuration for your project.
