Solar Garden Light – Six-Disc Plaza – ZC-TYD5106
5V/66 W solar panel · 3.2V/80000 mAh · 360 LED chips · Ø1260 × H390 mm · IP65
- Model: ZC-TYD5106-6 / ZC-TYD5106-3
- Product type: Six-head solar garden light
- Material: Die-casting aluminum
- Solar panel: 5V/66 W (6-head) · 5V/33 W (3-head)
- Battery: 3.2V/80000 mAh (6-head) · 3.2V/45000 mAh (3-head)
- LED chips: 360 PCS (6-head) · 180 PCS (3-head)
- Colour temperature: 3000–6500 K
- Size: Ø1260 × H390 mm

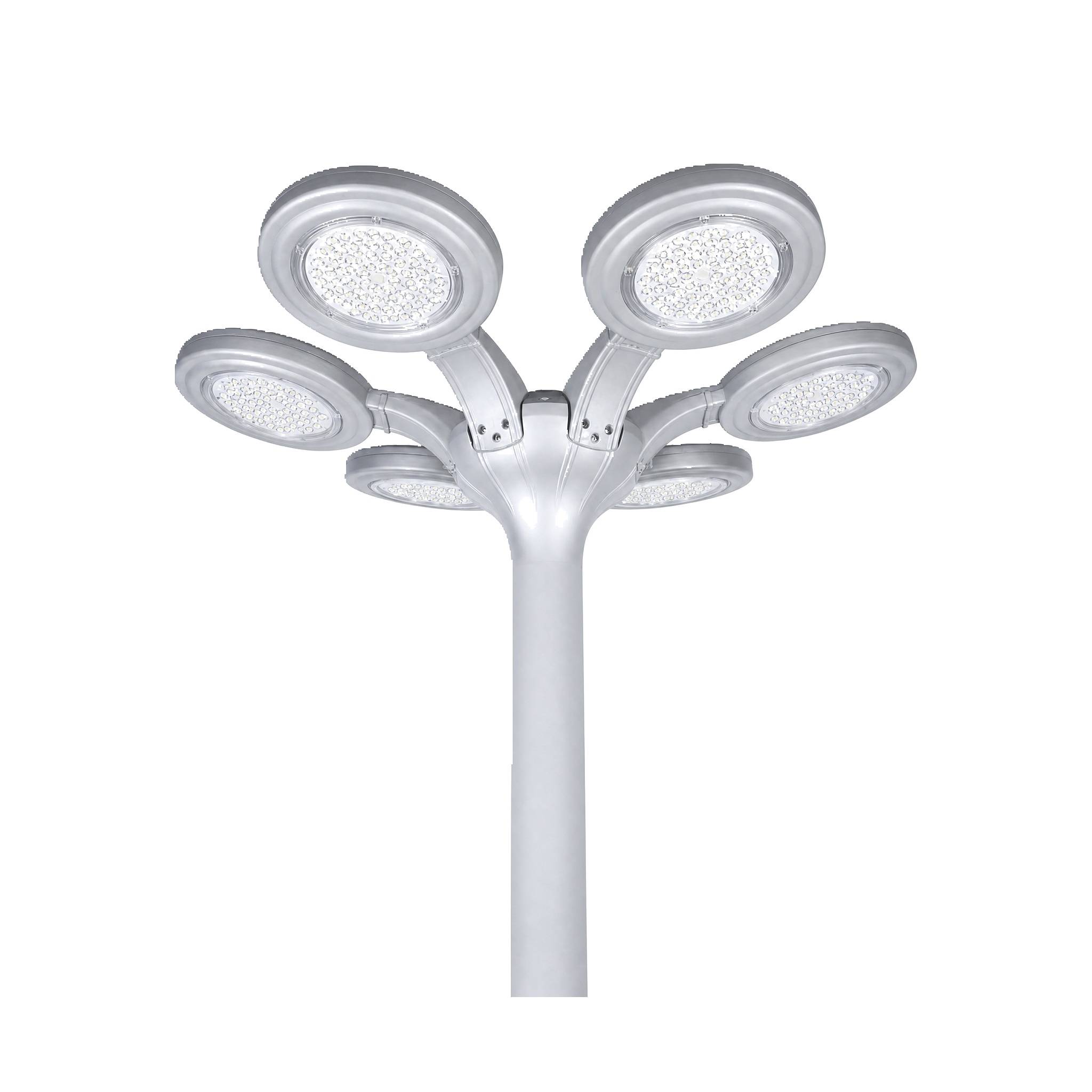

The ZC-TYD5106 is a six-head solar garden light with round disc heads. Each disc is a die-cast aluminium housing holding its own LED board and lens, and the solar cells sit in the upper face of every disc, so the six heads together collect the charge. The battery and controller are built into the luminaire and the light switches itself on at dusk.

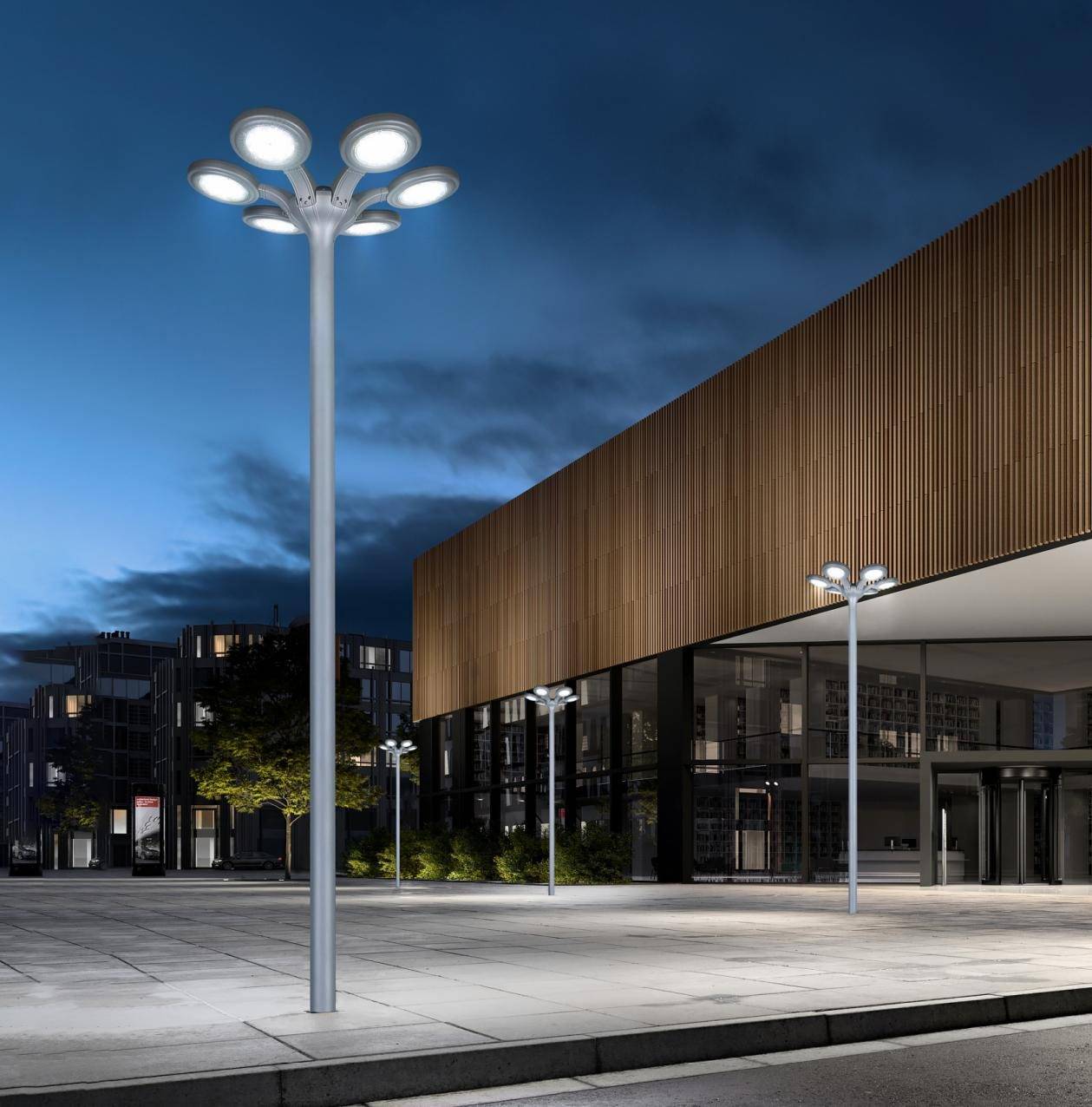

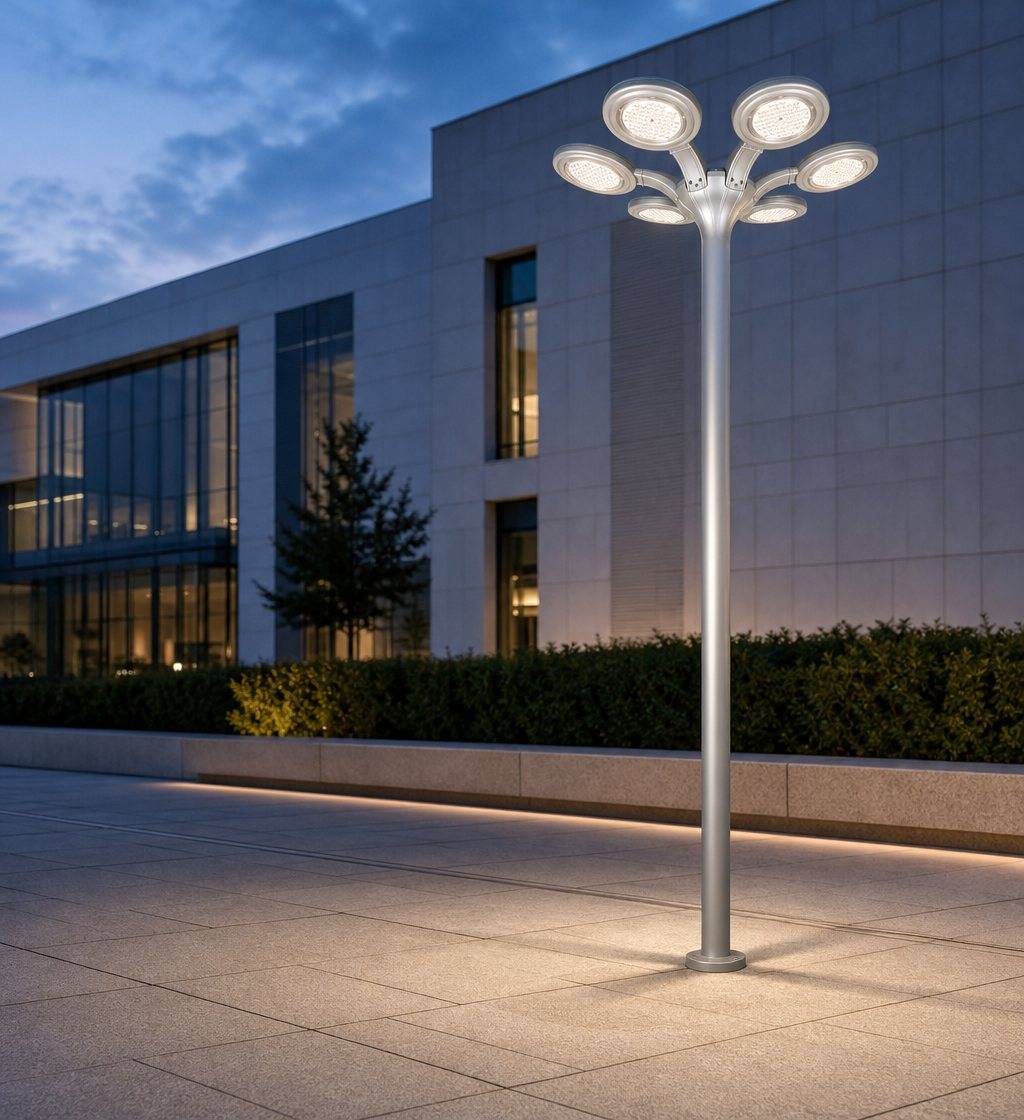

It is sized for garden borders, small plazas, hotel gardens, community parks and residential landscaping where a decorative solar garden light is preferred to a cable-fed one. Because there is no mains connection, the only civil work is the pole foundation. A three-head version with the same disc design serves narrower paths and smaller planting beds.
Tell us the pole height, the area to be lit and how many hours of light you need after a cloudy day and we will confirm whether the six-head or three-head version fits, then quote for your project.
At a glance
| Model | ZC-TYD5106-6 / ZC-TYD5106-3 |
| Product type | Six-head solar garden light |
| Material | Die-casting aluminum |
| Solar panel | 5V/66 W · 5V/33 W |
| Battery | 3.2V/80000 mAh · 3.2V/45000 mAh |
| LED chips | 360PCS · 180PCS |
| Charge time | 3–5 H |
| Colour temperature | 3000–6500 K |
| Size | Ø1260 × H390 mm |
| Ingress protection | IP65 |
Solar Garden Light – Six-Disc Plaza – ZC-TYD5106 — technical parameters
| Model | Material | Solar panel | Battery | LED chips | Charge time | Colour temp. | Size |
|---|---|---|---|---|---|---|---|
| ZC-TYD5106-6 | Die-casting aluminum | 5V/66W | 3.2V/80000mAh | 360PCS | 3-5H | 3000-6500K | Ø1260×H390mm |
| ZC-TYD5106-3 | Die-casting aluminum | 5V/33W | 3.2V/45000mAh | 180PCS | 3-5H | 3000-6500K | Ø1260×H390mm |
Parameters are the supplier's published figures for the models listed. Tell us the area to be lit, the pole height and the lighting hours you require and we will confirm the exact configuration for your project.
