Home / Products / Solar Garden Light
Solar Garden Light – Six-Petal Plaza – ZC-TYD5109
18V/150 W solar panel · 3.2V/180000 mAh · 600 LED chips · Ø2050 × H450 mm · IP65
- Model: ZC-TYD5109-6 / ZC-TYD5109-3
- Product type: Multi-head solar garden light / plaza light
- Material: Die-casting aluminum
- Solar panel: 18V/150 W (6-head) · 18V/75 W (3-head)
- Battery: 3.2V/180000 mAh (6-head) · 3.2V/90000 mAh (3-head)
- LED chips: 600 PCS (6-head) · 300 PCS (3-head)
- Colour temperature: 3000–6500 K
- Size: Ø2050 × H450 mm

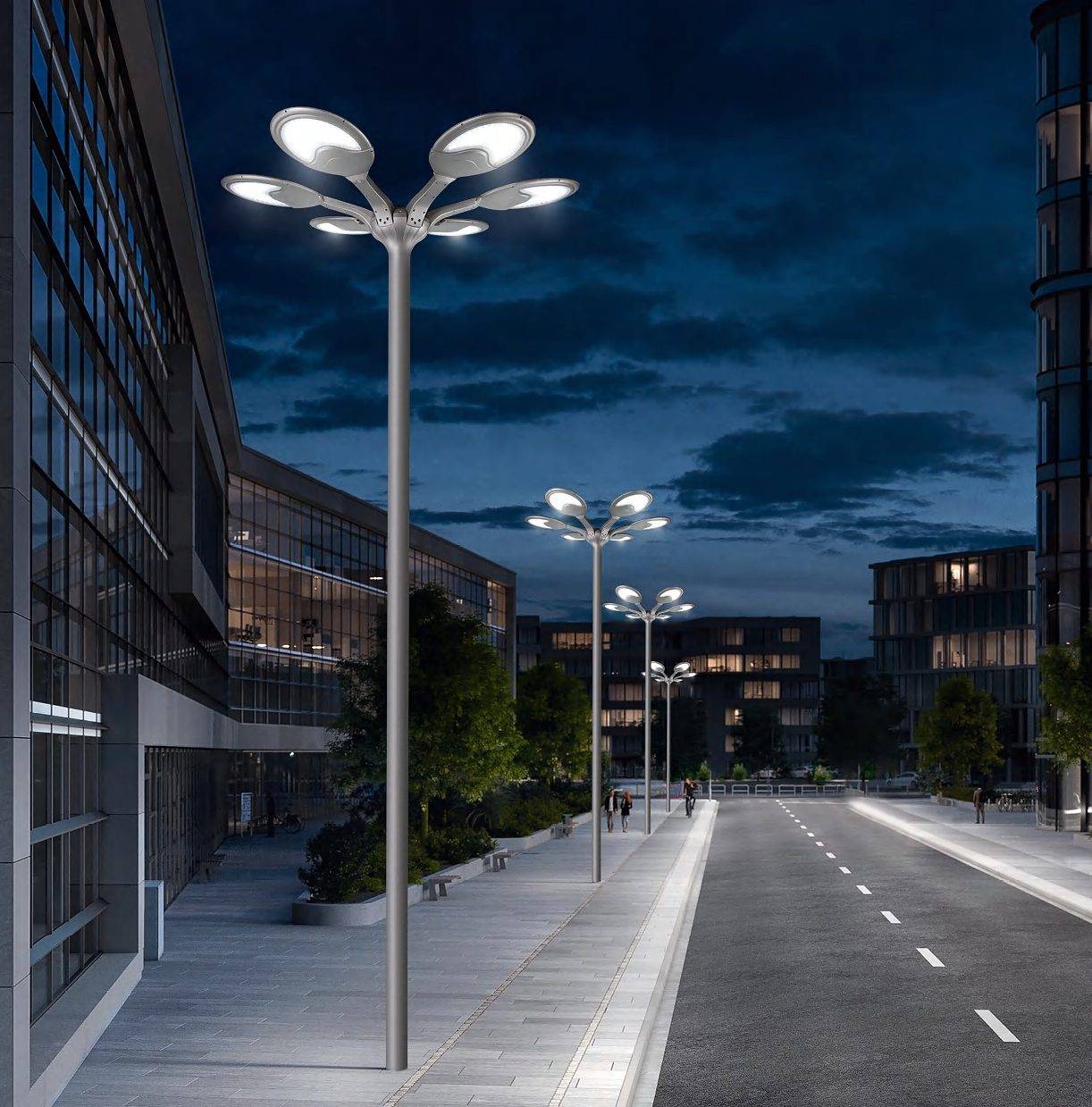

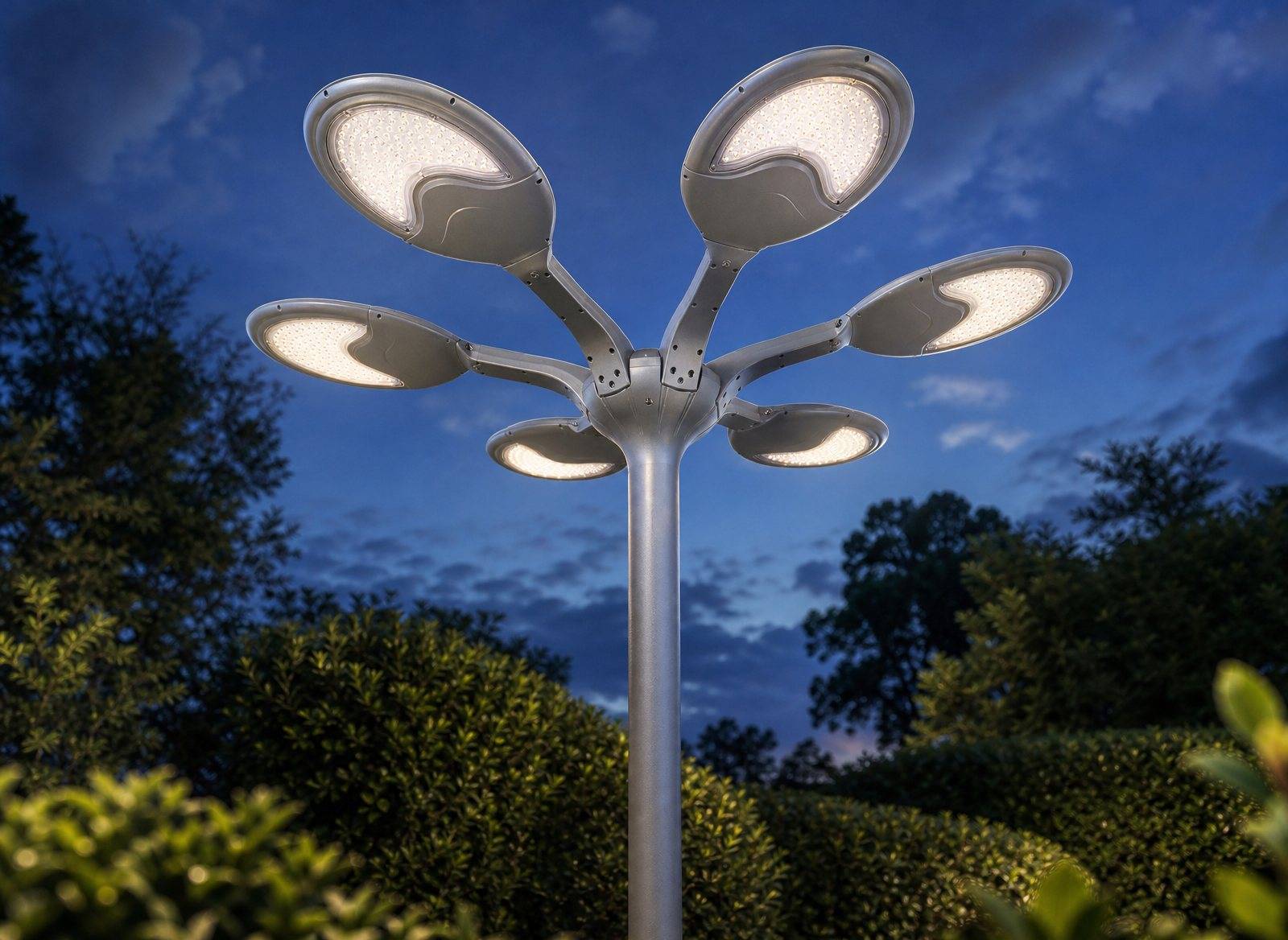

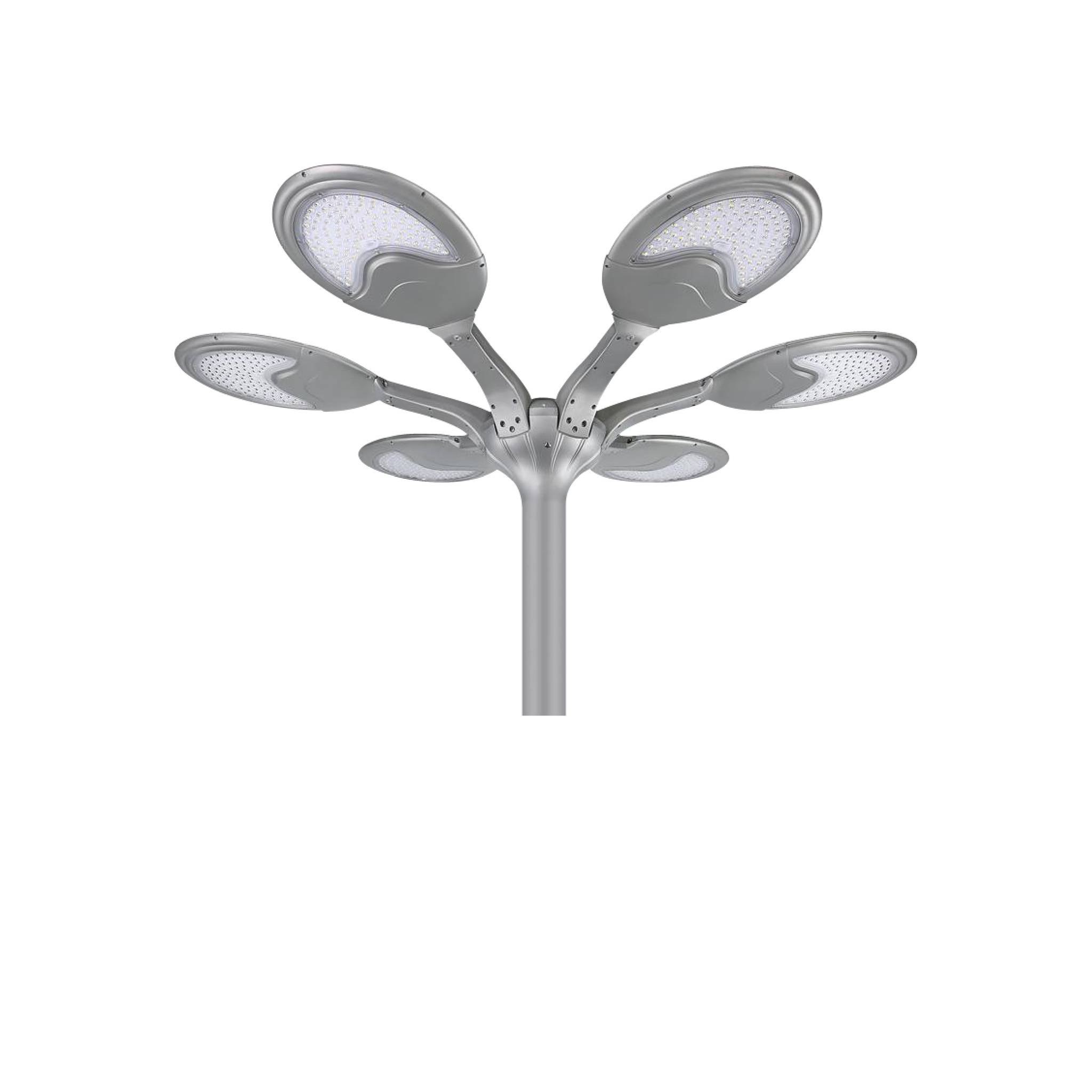

The ZC-TYD5109 is a multi-head solar garden light built for plazas, park entrances and wide landscaped walkways. Six die-cast aluminium petals radiate from a central hub, each carrying its own LED module, so a single pole lights a broad circle rather than one narrow pool. The solar panel, the lithium battery and the controller all sit inside the luminaire — no mains cable, no trenching and no separate panel to mount on a bracket.

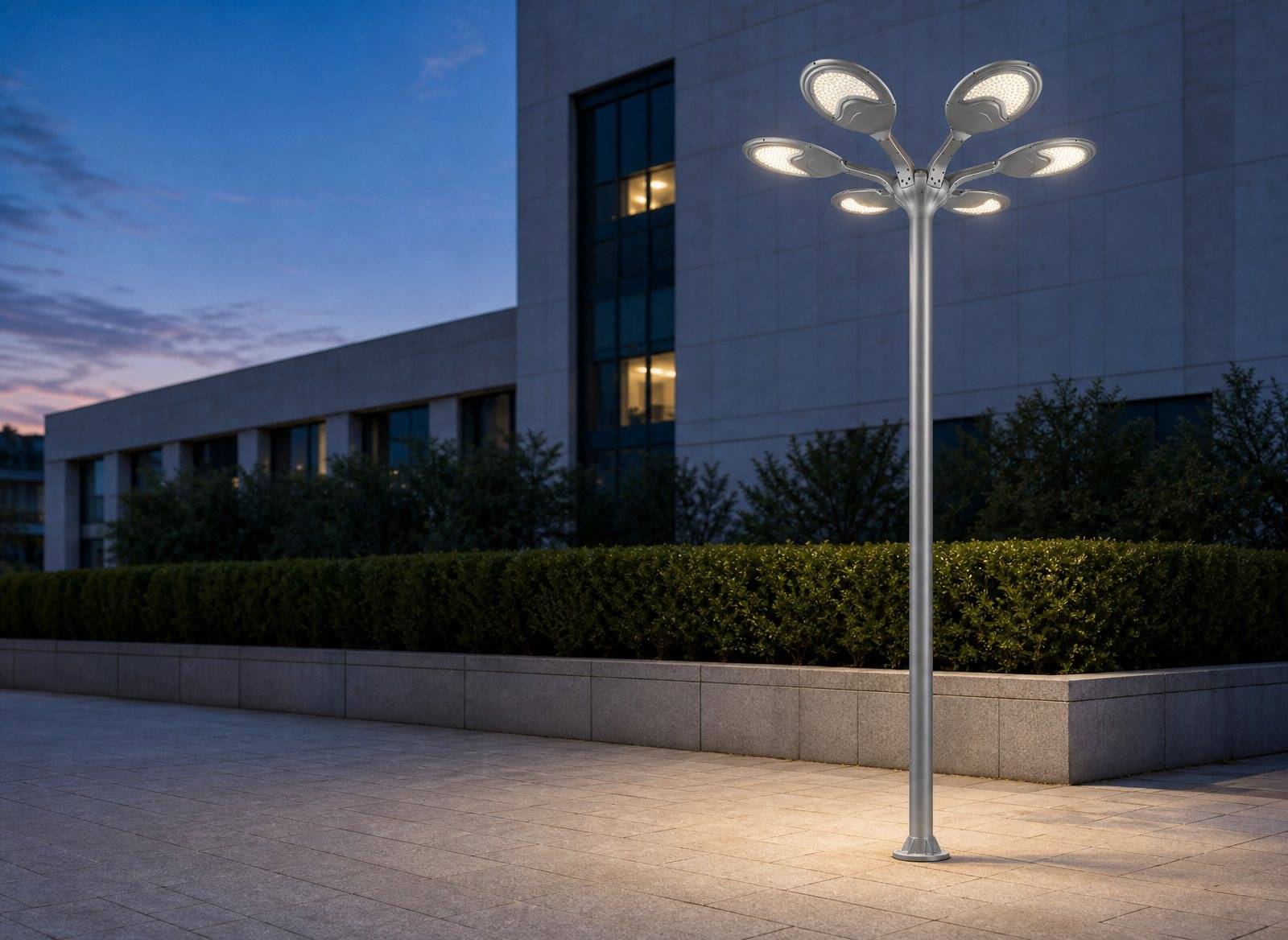

Because the ZC-TYD5109 works entirely off grid, it is normally chosen where running a power cable is impossible or expensive: municipal parks, residential compound entrances, hotel and resort gardens, campus walkways and roadside verges. A six-head version covers large plazas and a three-head version suits narrower paths, both sharing the same die-cast aluminium body and IP65 construction, with a switchable 3000 K to 6500 K colour temperature.
When you are comparing solar garden lights for a project, tell us the area to be lit, the pole height and the hours of light you need after a cloudy day. We will recommend the head count and battery configuration and quote against your bill of quantities.
At a glance
| Model | ZC-TYD5109-6 / ZC-TYD5109-3 |
| Product type | Multi-head solar garden light |
| Material | Die-casting aluminum |
| Solar panel | 18V/150 W · 18V/75 W |
| Battery | 3.2V/180000 mAh · 3.2V/90000 mAh |
| LED chips | 600PCS · 300PCS |
| Charge time | 3–5 H |
| Colour temperature | 3000–6500 K |
| Size | Ø2050 × H450 mm |
| Ingress protection | IP65 |
Solar Garden Light – Six-Petal Plaza – ZC-TYD5109 — technical parameters
| Model | Material | Solar panel | Battery | LED chips | Charge time | Colour temp. | Size |
|---|---|---|---|---|---|---|---|
| ZC-TYD5109-6 | Die-casting aluminum | 18V/150W | 3.2V/180000mAh | 600PCS | 3-5H | 3000-6500K | Ø2050×H450mm |
| ZC-TYD5109-3 | Die-casting aluminum | 18V/75W | 3.2V/90000mAh | 300PCS | 3-5H | 3000-6500K | Ø2050×H450mm |
Parameters are the supplier's published figures for the models listed. Tell us the area to be lit, the pole height and the lighting hours you require and we will confirm the exact configuration for your project.
