ZC-XYD436 Solar Post Light – Slim Panel-Above Post Light
5V/50 W solar panel · 3.2V/40000 mAh · 48 LED chips · 610 × 200 × 390 mm · 3000–6500 K · IP65
- Model: ZC-XYD424 / ZC-XYD436 / ZC-XYD448
- Product type: Panel-above solar post light
- Material: Die-casting aluminum
- Solar panel: 5V/40 W · 5V/50 W · 5V/60 W
- Battery: 3.2V/20000 mAh · 3.2V/40000 mAh · 3.2V/60000 mAh
- LED chips: 24 PCS · 48 PCS · 76 PCS
- Colour temperature: 3000–6500 K
- Size: 610 × 200 × 390 mm

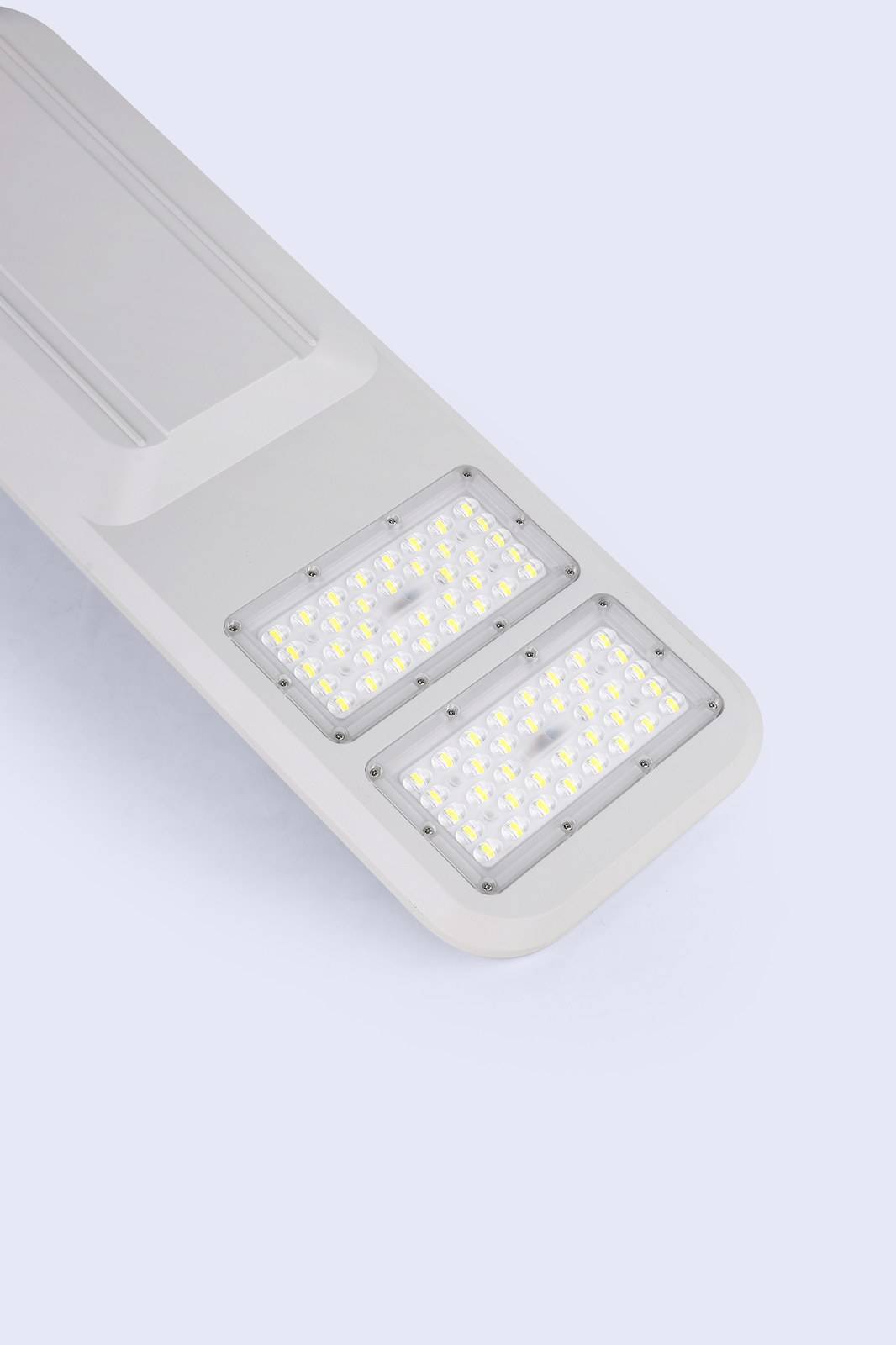

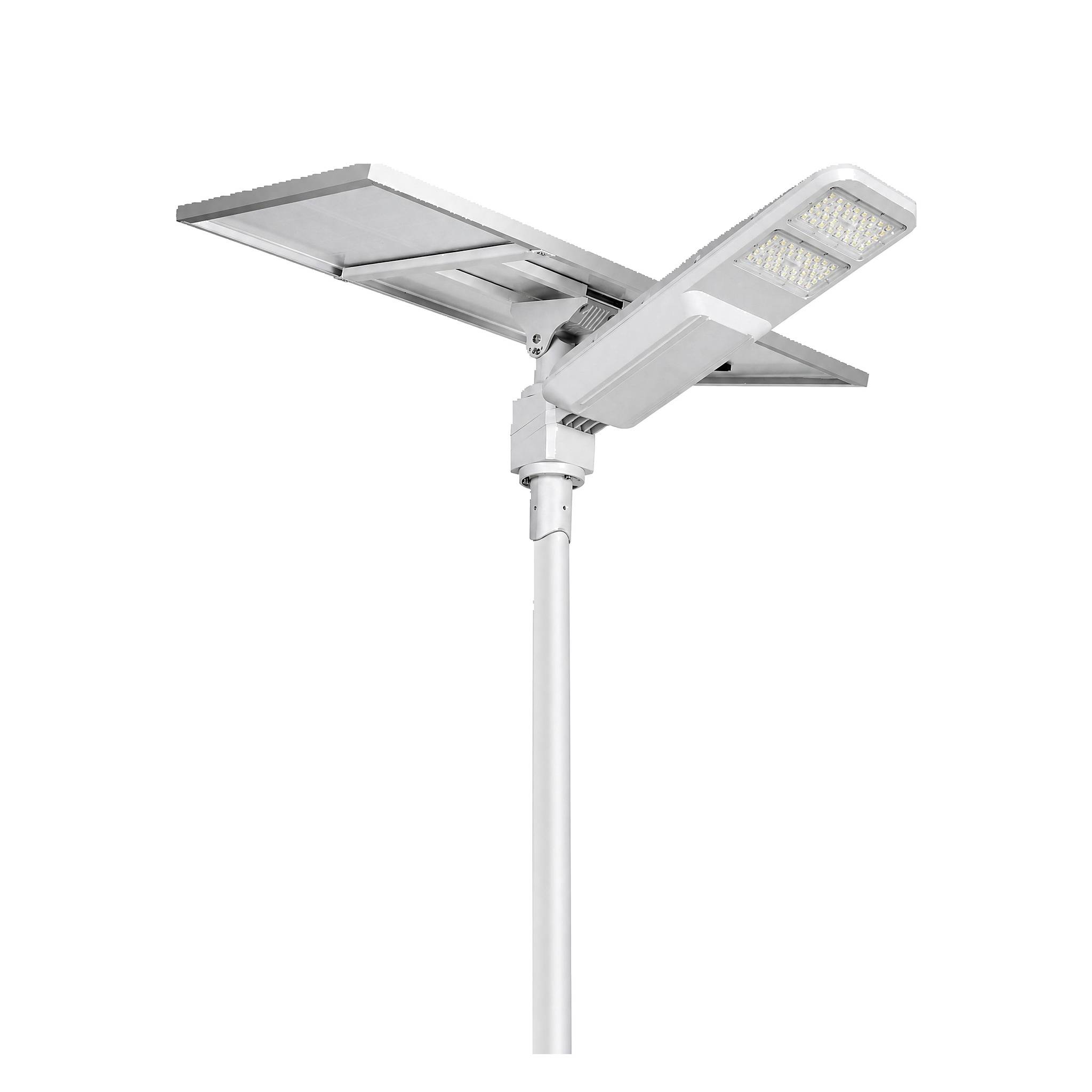

The ZC-XYD range is a slim solar post light in which a tilted panel sits above a narrow LED head. Hanging the panel clear of the head keeps the glass out of the shade and lets rain wash the panel clean, while the shallow head \u2014 only 200 mm across and 390 mm deep \u2014 keeps the fitting visually light on top of a post. The die-cast aluminium housing is finished in grey or white so it can be matched to poles, railings and gates.

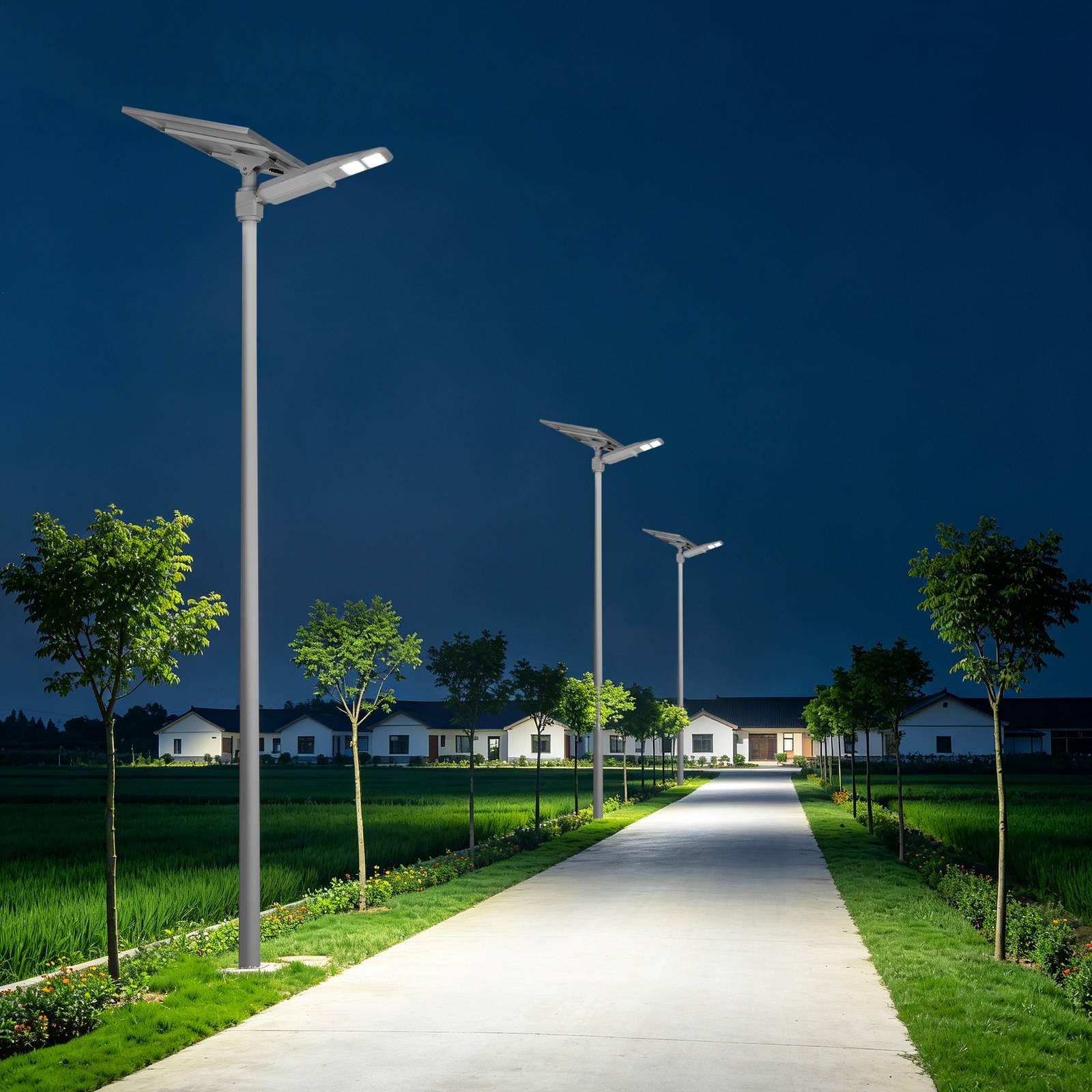

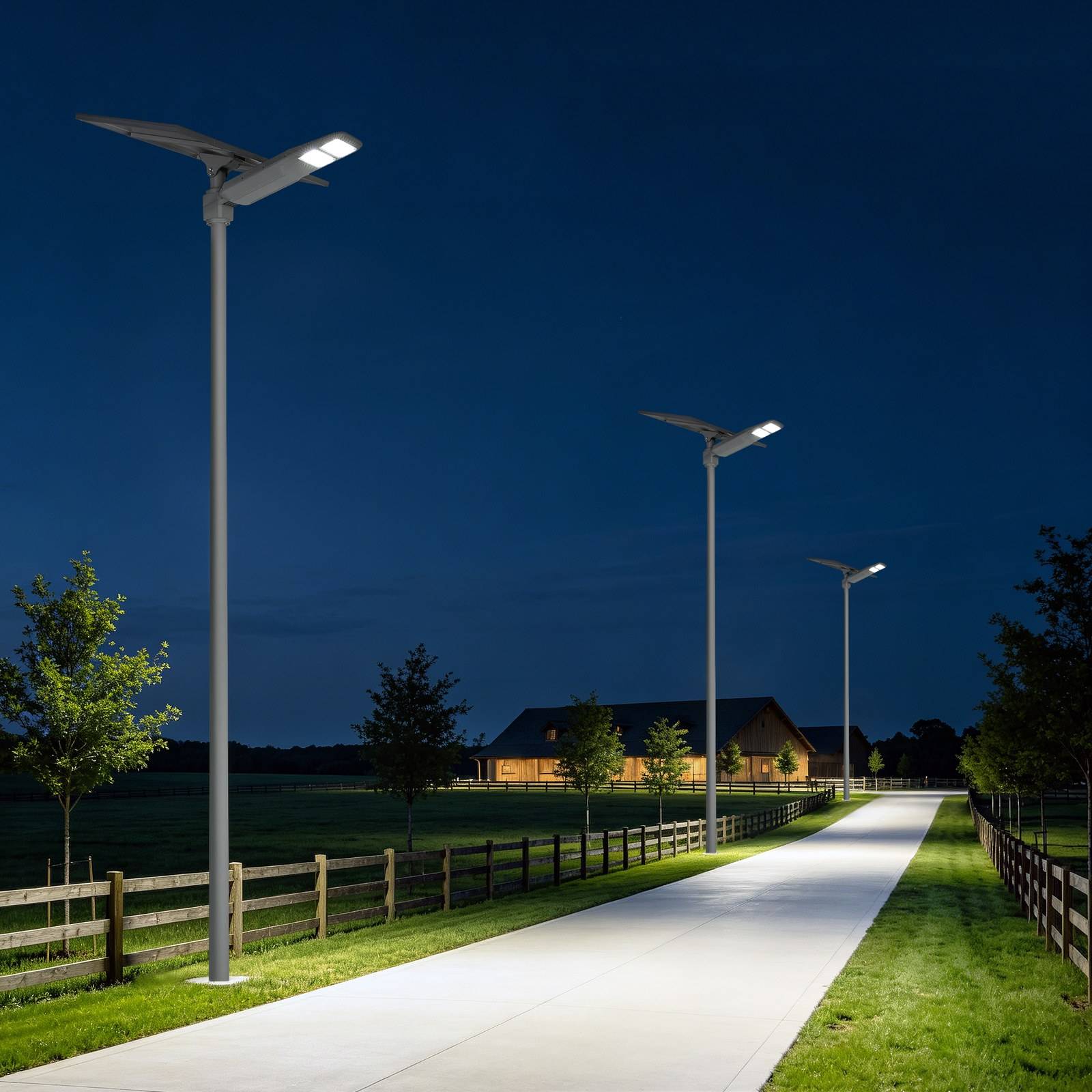

It is the shape that suits garden and estate signage, park boundary paths, car park edges, courtyard entrances and internal residential lanes: places where a full street-light head would be out of scale but a low post-top lamp would not throw far enough. Three sizes share the same body, so a scheme can use the smaller unit on paths and the larger unit at the entrance without changing the look.
Colour temperature is selectable from 3000 K to 6500 K, and the built-in optical sensor brings the light on at dusk with a time profile to see the battery through the night. The range is supplied with its own post or as a head only to suit an existing Ø76 mm pole.
At a glance
| Model | ZC-XYD424 / ZC-XYD436 / ZC-XYD448 |
| Product type | Panel-above solar post light |
| Material | Die-casting aluminum |
| Solar panel | 5V/40 W · 5V/50 W · 5V/60 W |
| Battery | 3.2V/20000 mAh · 3.2V/40000 mAh · 3.2V/60000 mAh |
| LED chips | 24 PCS · 48 PCS · 76 PCS |
| Charge time | 3–5 H |
| Colour temperature | 3000–6500 K |
| Size | 610 × 200 × 390 mm |
| Ingress protection | IP65 |
ZC-XYD436 Solar Post Light – Slim Panel-Above Post Light — technical parameters
| Item | ZC-XYD424 | ZC-XYD436 | ZC-XYD448 |
|---|---|---|---|
| Product type | Panel-above solar post light | Panel-above solar post light | Panel-above solar post light |
| Material | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum |
| Solar panel | 5V/40 W | 5V/50 W | 5V/60 W |
| Battery | 3.2V/20000 mAh | 3.2V/40000 mAh | 3.2V/60000 mAh |
| Quantity of LED chips | 24 PCS | 48 PCS | 76 PCS |
| Charge time | 3–5 H | 3–5 H | 3–5 H |
| Colour temperature | 3000–6500 K | 3000–6500 K | 3000–6500 K |
| Size | 610 × 200 × 390 mm | 610 × 200 × 390 mm | 610 × 200 × 390 mm |
| Ingress protection | IP65 | IP65 | IP65 |
Parameters are the supplier's published figures for the models listed. Tell us the area to be lit, the pole height and the lighting hours you require and we will confirm the exact configuration for your project.
