Mid-hinged Street Light Pole
A hinge above the base lets the pole be lowered for maintenance without a crane or a platform
- Section: Mid-hinged, hot-dip galvanised
- Material: Steel Q235, Q235B or Q345
- Finish: Hot-dip galvanised as standard; galvanised + powder coating to a RAL colour on request
- Standard heights: 6 m to 12 m; other heights from 3 m upwards produced to the project drawing
- Supplied with: Base plate, door, cable entry, lamp arm, anchor bolts and foundation drawing
A mid-hinged pole carries a hinge above the base so the upper section can be lowered to the ground for maintenance, lamp replacement or service. That removes the need for a crane, a platform or a lane closure on every service visit, which matters where access is difficult or where the road cannot be closed.

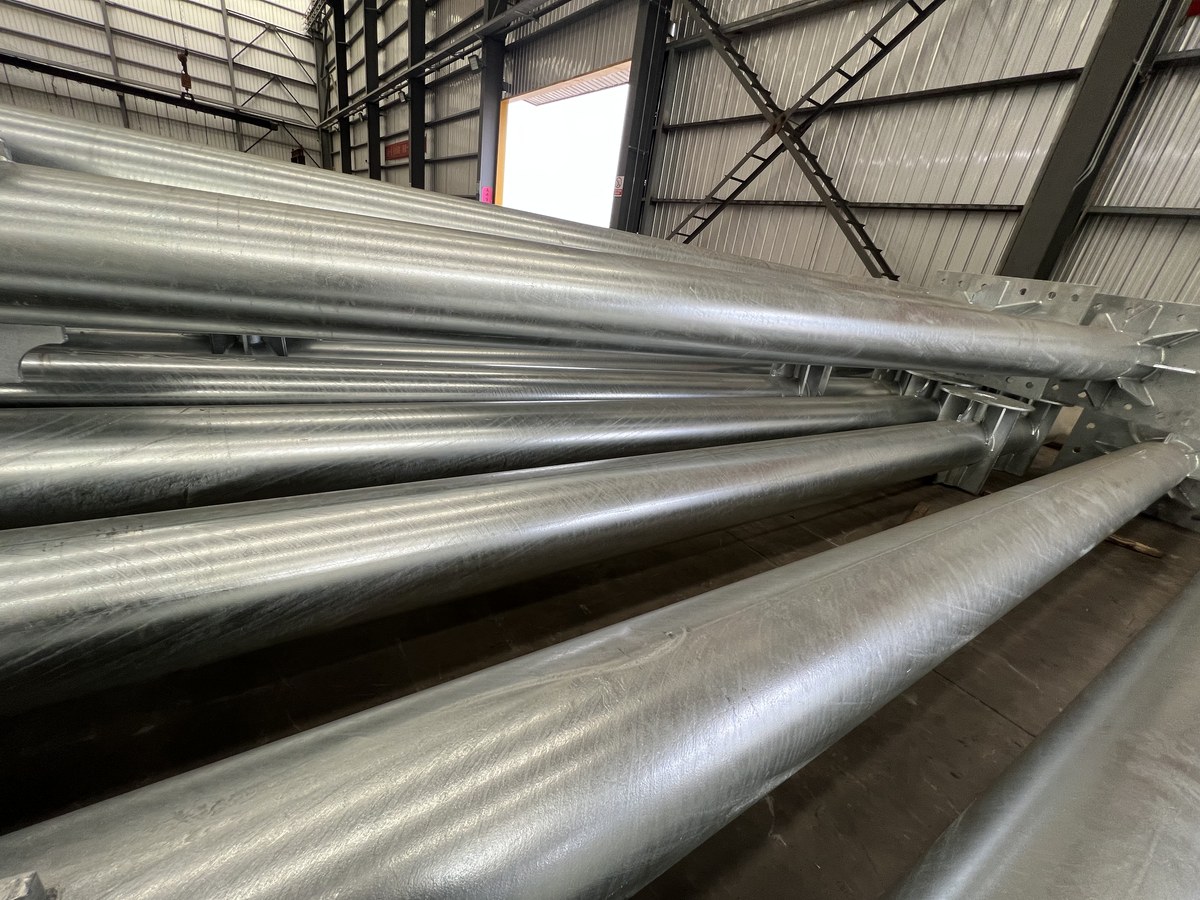

The pole is hot-dip galvanised as standard, and the hinge assembly is welded and dressed as part of the same single-unit fabrication as the rest of the pole.
At a glance
| Section | Mid-hinged, hot-dip galvanised |
| Material | Steel Q235, Q235B or Q345 |
| Finish | Hot-dip galvanised as standard; galvanised + powder coating to a RAL colour on request |
| Standard heights | 6 m to 12 m; other heights from 3 m upwards produced to the project drawing |
| Supplied with | Base plate, door, cable entry, lamp arm, anchor bolts and foundation drawing |
| Mounting | Single or double arms, welded at the required height and drilled ready for the luminaire |
Mid-hinged Street Light Pole — technical parameters
| Height H | Wall thickness S (mm) | Top Ø D1 (mm) | Bottom Ø D2 (mm) | Base plate F1 (mm) | Weight F2 (kg) |
|---|---|---|---|---|---|
| 6 m | 2.5 / 3 | 60–76 | 135 / 140 | 280×280×12 | 55 |
| 7 m | 2.75 / 3 | 60–76 | 150 | 280×280×12 | 81 |
| 8 m | 3 | 60–76 | 150 / 160 | 280×280×12 | 100 |
| 9 m | 3.25 / 3.50 | 60–76 | 175 / 180 | 300×300×12 · 340×340×14 | 118 |
| 10 m | 3.5 / 3.75 | 60–75 | 180 / 190 | 350×350×12 · 360×360×14/16 | 146 |
| 11 m | 3.5 / 3.75 / 4 | 60–70 / 80 | 180 / 200 / 210 | 350×350×16 · 360×360×16/18 | 165 |
| 12 m | 3.75 / 4 | 60–70 / 80 | 200 / 210 | 350×350×16 · 380×380×16/18/20 | 190 |
Parameters are the supplier's published figures for the models listed. Tell us your road width, pole height and required lighting hours and we will confirm the exact configuration for your project.
