HC All-in-One Solar Street Light 30 W to 80 W
All-in-One Solar Street Light

HC All-in-One Solar Street Light — 30 W to 80 W

Integrated panel, LiFePO4 battery, LED and controller · 12.8 V battery · IP65

  • Range: HC-30W/40W-L to HC-70W/80W
  • Battery: 12.8 V 24–45 Ah
  • Ingress protection: IP65
  • Mounting: Tripod + support bar
  • Mounting height: 5–10 m
Request a QuoteChat on WhatsApp

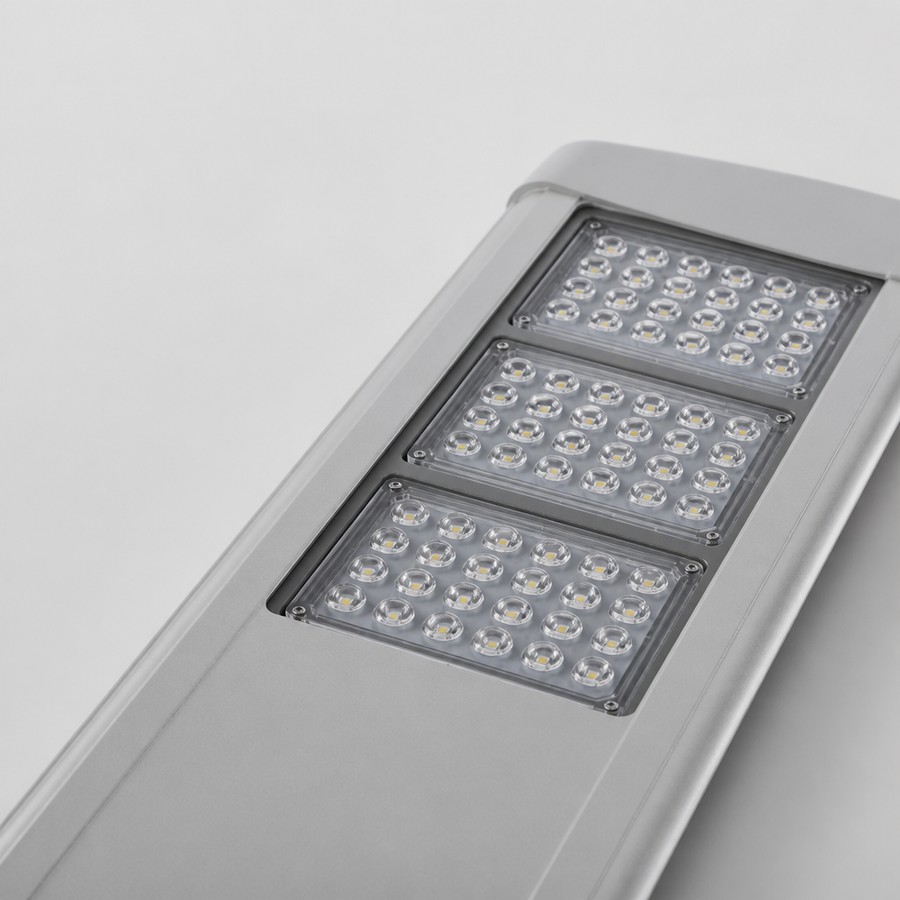

The 30 W to 80 W models use a 12.8 V lithium battery and are supplied as a single integrated unit with the panel, controller and LED in the same aluminium housing. The LED array and the monocrystalline panel sit on opposite faces, so the LED is protected from above while the panel stays clear of shadow.

Typical use is residential roads, community roads and secondary roads at mounting heights from 5 m to 10 m.

At a glance

RangeHC-30W/40W-L to HC-70W/80W
Battery12.8 V 24–45 Ah
Ingress protectionIP65
MountingTripod + support bar
Mounting height5–10 m

HC All-in-One Solar Street Light 30 W to 80 W — technical parameters

ModelHC-30W/40W-LHC-40W/50WHC-50W/60WHC-60WHC-70W/80W
Power30W / 40W40W / 50W50W / 60W60W70W / 80W
Solar Panel50W70W80W90W100W
Battery12.8V 24Ah12.8V 30Ah12.8V 36Ah12.8V 45Ah12.8V 45Ah
Luminous Flux 3030/5050/70704200–5600 / 5100–6800 / 5700–7600 lm5600–7000 / 6800–8500 / 7600–9500 lm7000–8400 / 8500–10200 / 9500–11400 lm8400 / 10200 / 11400 lm9800–11200 / 11900–13600 / 13300–15200 lm
PV Panel Size1070×272 mm1070×340 mm1070×398 mm1070×398 mm1298×398 mm
Light Size1130×300 mm1130×370 mm1130×425 mm1130×425 mm1350×425 mm
MountingTripod + support barTripod + support barTripod + support barTripod + support barTripod + support bar
Mounting Height5–8 m6–8 m7–9 m7–10 m7–10 m

Parameters are the supplier's published figures for the models listed. Tell us your road width, pole height and required lighting hours and we will confirm the exact configuration for your project.
