Round & Conical Street Light Pole
Tapered round section, 6 m to 12 m — the most economical option for street and area lighting
- Section: Tapered round / conical
- Material: Steel Q235, Q235B or Q345
- Finish: Hot-dip galvanised as standard; galvanised + powder coating to a RAL colour on request
- Standard heights: 6 m to 12 m; other heights from 3 m upwards produced to the project drawing
- Supplied with: Base plate, door, cable entry, lamp arm, anchor bolts and foundation drawing
A street light is only as good as the pole it hangs on. Conical poles are cut, bent, welded and galvanised as a single unit, with the base plate, door, cable entry and lamp arm already fitted. Each pole is dimensioned to the luminaire it carries, so the arm height, the top diameter and the base plate all match the light you have chosen.

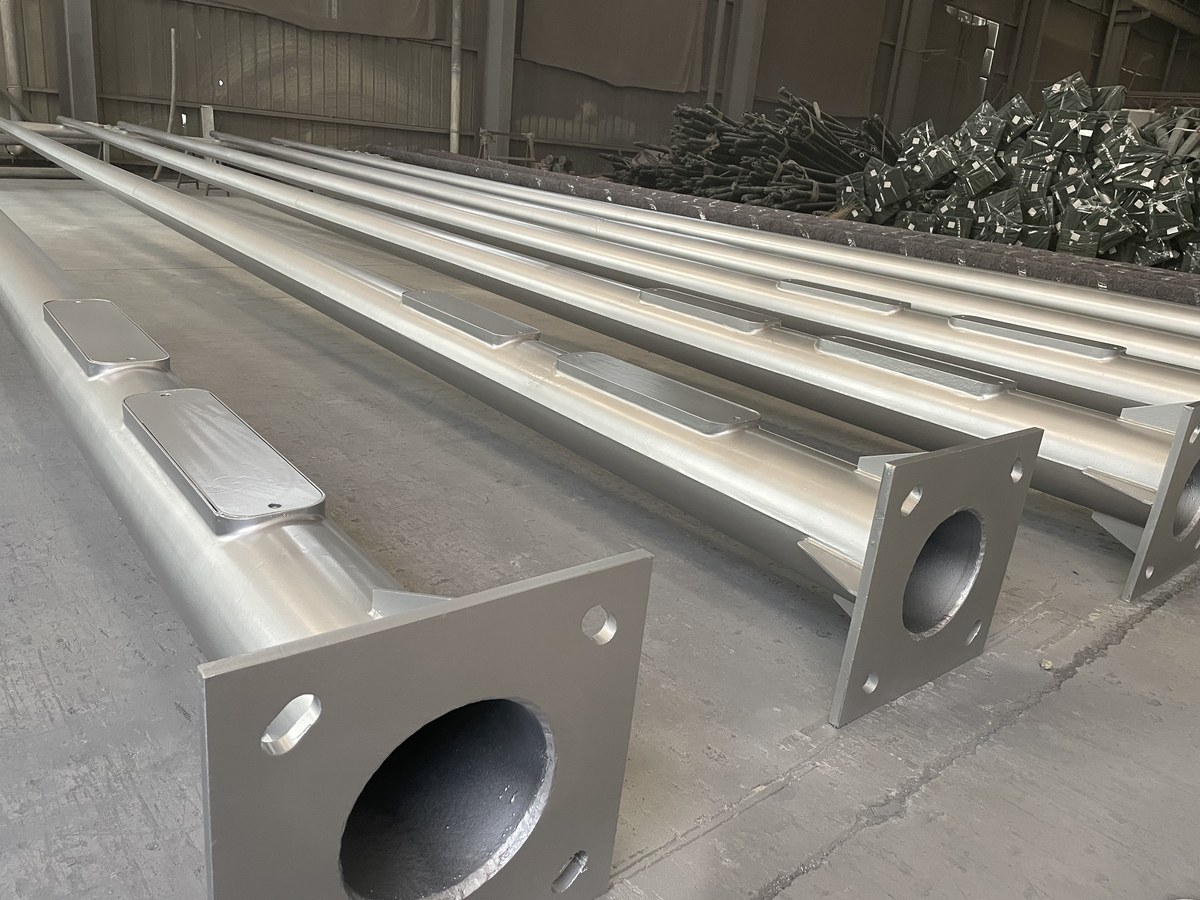

Standard poles run from 6 m to 12 m; other heights are produced to the project drawing. A square base plate is welded to the pole root and drilled for the anchor bolts, with the weld dressed and the whole assembly galvanised.
At a glance
| Section | Tapered round / conical |
| Material | Steel Q235, Q235B or Q345 |
| Finish | Hot-dip galvanised as standard; galvanised + powder coating to a RAL colour on request |
| Standard heights | 6 m to 12 m; other heights from 3 m upwards produced to the project drawing |
| Supplied with | Base plate, door, cable entry, lamp arm, anchor bolts and foundation drawing |

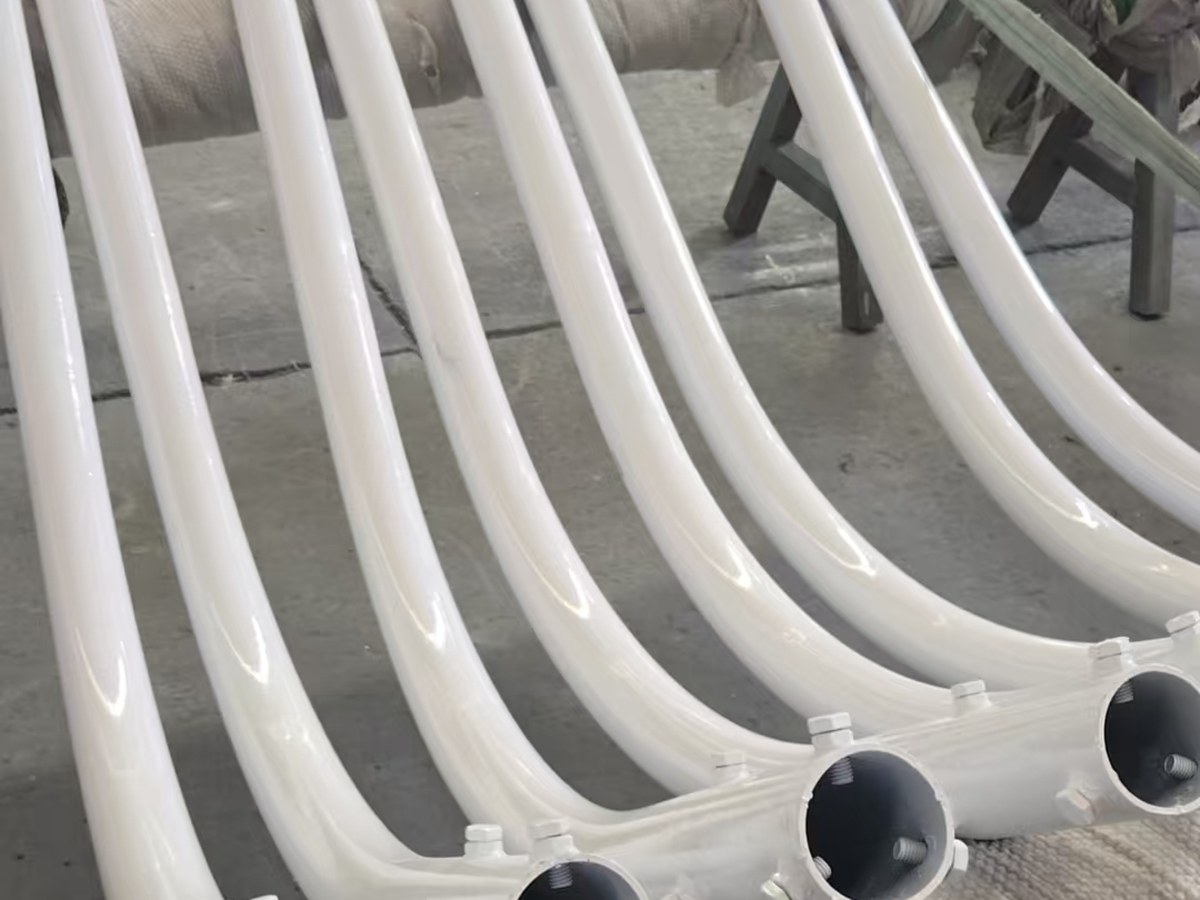

| Mounting | Single or double arms, welded at the required height and drilled ready for the luminaire |
Round Conical Street Light Pole — technical parameters
| Height H | Wall thickness S (mm) | Top Ø D1 (mm) | Bottom Ø D2 (mm) | Base plate F1 (mm) | Weight F2 (kg) |
|---|---|---|---|---|---|
| 6 m | 2.5 / 3 | 60–76 | 135 / 140 | 280×280×12 | 55 |
| 7 m | 2.75 / 3 | 60–76 | 150 | 280×280×12 | 81 |
| 8 m | 3 | 60–76 | 150 / 160 | 280×280×12 | 100 |
| 9 m | 3.25 / 3.50 | 60–76 | 175 / 180 | 300×300×12 · 340×340×14 | 118 |
| 10 m | 3.5 / 3.75 | 60–75 | 180 / 190 | 350×350×12 · 360×360×14/16 | 146 |
| 11 m | 3.5 / 3.75 / 4 | 60–70 / 80 | 180 / 200 / 210 | 350×350×16 · 360×360×16/18 | 165 |
| 12 m | 3.75 / 4 | 60–70 / 80 | 200 / 210 | 350×350×16 · 380×380×16/18/20 | 190 |
Parameters are the supplier's published figures for the models listed. Tell us your road width, pole height and required lighting hours and we will confirm the exact configuration for your project.
