Solar Street Light

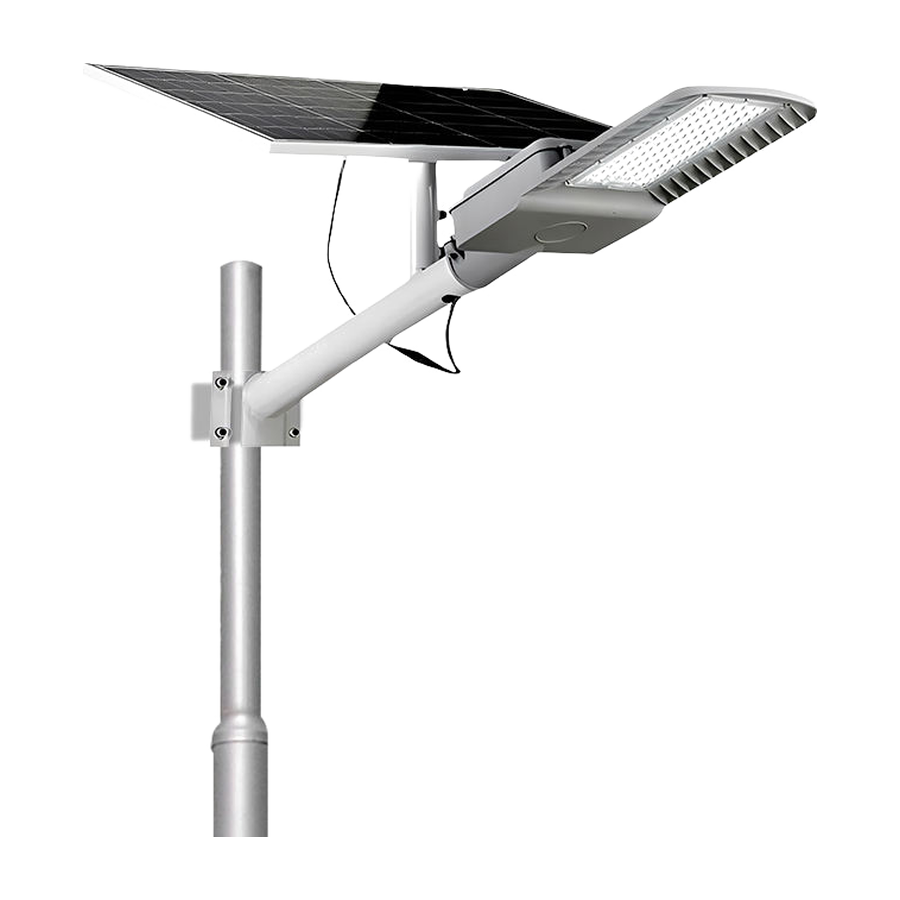

HC-DT-4 Split Solar Street Light
100 W – 200 W · 120 LM/W · IP65 · Mounting height 8–20 m
- Series: HC-DT-4
- Rated power: 100 W – 200 W
- Efficacy: 120 LM/W
- Ingress protection: IP65
- Colour temperature: 3000 K / 4000 K / 5700 K
The HC-DT-4 is the highest-output lamp head in the split range, from 100 W to 200 W at 120 LM/W, for main roads, industrial areas and large interchanges where the mounting height runs from 8 m to 20 m.
It is supplied as a separate lamp head so the panel area and battery capacity can be sized for the road and for the number of autonomy days the project requires.
At a glance
| Series | HC-DT-4 |
| Rated power | 100 W – 200 W |
| Efficacy | 120 LM/W |
| Ingress protection | IP65 |
| Colour temperature | 3000 K / 4000 K / 5700 K |
| Mounting height | 8–20 m |
HC-DT-4 Split Solar Street Light — technical parameters
| Model | Wattage | Light Size (mm) | Packing Size (mm) | Mounting Height |
|---|---|---|---|---|
| HC-DT-4-100W | 100 W | 572×328×76 | 610×370×135 | 8–10 m |
| HC-DT-4-150W | 150 W | 572×328×76 | 610×370×135 | 10–12 m |
| HC-DT-4-180W | 180 W | 671×328×76 | 710×370×140 | 12–15 m |
| HC-DT-4-200W | 200 W | 671×328×76 | 710×370×140 | 15–20 m |
Parameters are the supplier's published figures for the models listed. Tell us your road width, pole height and required lighting hours and we will confirm the exact configuration for your project.
