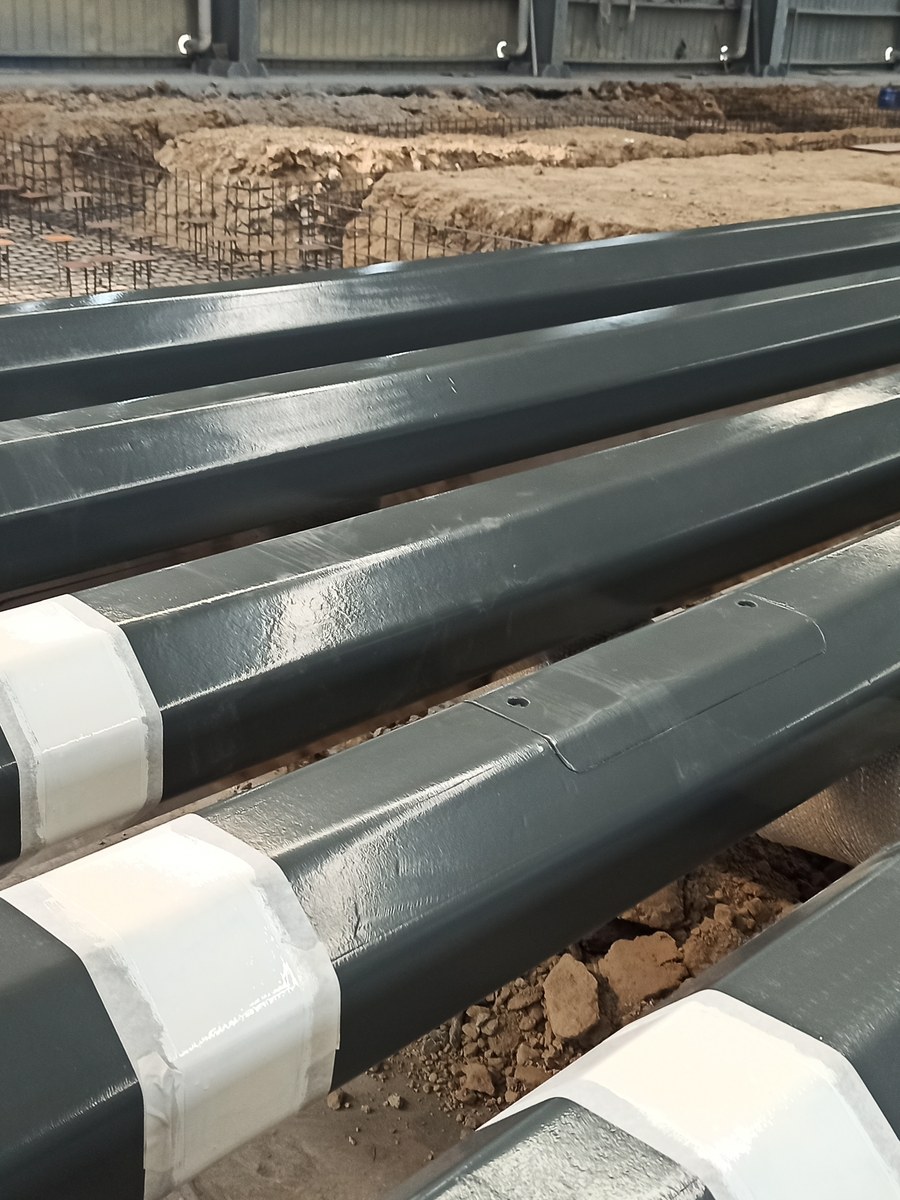

Octagonal Street Light Pole
Eight-sided section on the same dimensional table, with a flatter face for welded arms and signage
- Section: Octagonal (8-sided)
- Material: Steel Q235, Q235B or Q345
- Finish: Hot-dip galvanised as standard; galvanised + powder coating to a RAL colour on request
- Standard heights: 6 m to 12 m; other heights from 3 m upwards produced to the project drawing
- Supplied with: Base plate, door, cable entry, lamp arm, anchor bolts and foundation drawing
Octagonal poles use the same dimensional table as the conical range, so the two can be mixed within one project. The eight-sided section gives a flatter face for welded arms and signage, which is why it is often specified for main roads and where traffic signs are mounted on the lighting pole.
Supplied with base plate, door, cable entry and lamp arm, hot-dip galvanised as standard, or galvanised and powder coated to a RAL colour when the specification calls for it.
At a glance
| Section | Octagonal (8-sided) |
| Material | Steel Q235, Q235B or Q345 |
| Finish | Hot-dip galvanised as standard; galvanised + powder coating to a RAL colour on request |
| Standard heights | 6 m to 12 m; other heights from 3 m upwards produced to the project drawing |
| Supplied with | Base plate, door, cable entry, lamp arm, anchor bolts and foundation drawing |
| Mounting | Single or double arms, welded at the required height and drilled ready for the luminaire |
Octagonal Street Light Pole — technical parameters
| Height H | Wall thickness S (mm) | Top Ø D1 (mm) | Bottom Ø D2 (mm) | Base plate F1 (mm) | Weight F2 (kg) |
|---|---|---|---|---|---|
| 6 m | 2.5 / 3 | 60–76 | 135 / 140 | 280×280×12 | 55 |
| 7 m | 2.75 / 3 | 60–76 | 150 | 280×280×12 | 81 |
| 8 m | 3 | 60–76 | 150 / 160 | 280×280×12 | 100 |
| 9 m | 3.25 / 3.50 | 60–76 | 175 / 180 | 300×300×12 · 340×340×14 | 118 |
| 10 m | 3.5 / 3.75 | 60–75 | 180 / 190 | 350×350×12 · 360×360×14/16 | 146 |
| 11 m | 3.5 / 3.75 / 4 | 60–70 / 80 | 180 / 200 / 210 | 350×350×16 · 360×360×16/18 | 165 |
| 12 m | 3.75 / 4 | 60–70 / 80 | 200 / 210 | 350×350×16 · 380×380×16/18/20 | 190 |
Parameters are the supplier's published figures for the models listed. Tell us your road width, pole height and required lighting hours and we will confirm the exact configuration for your project.
