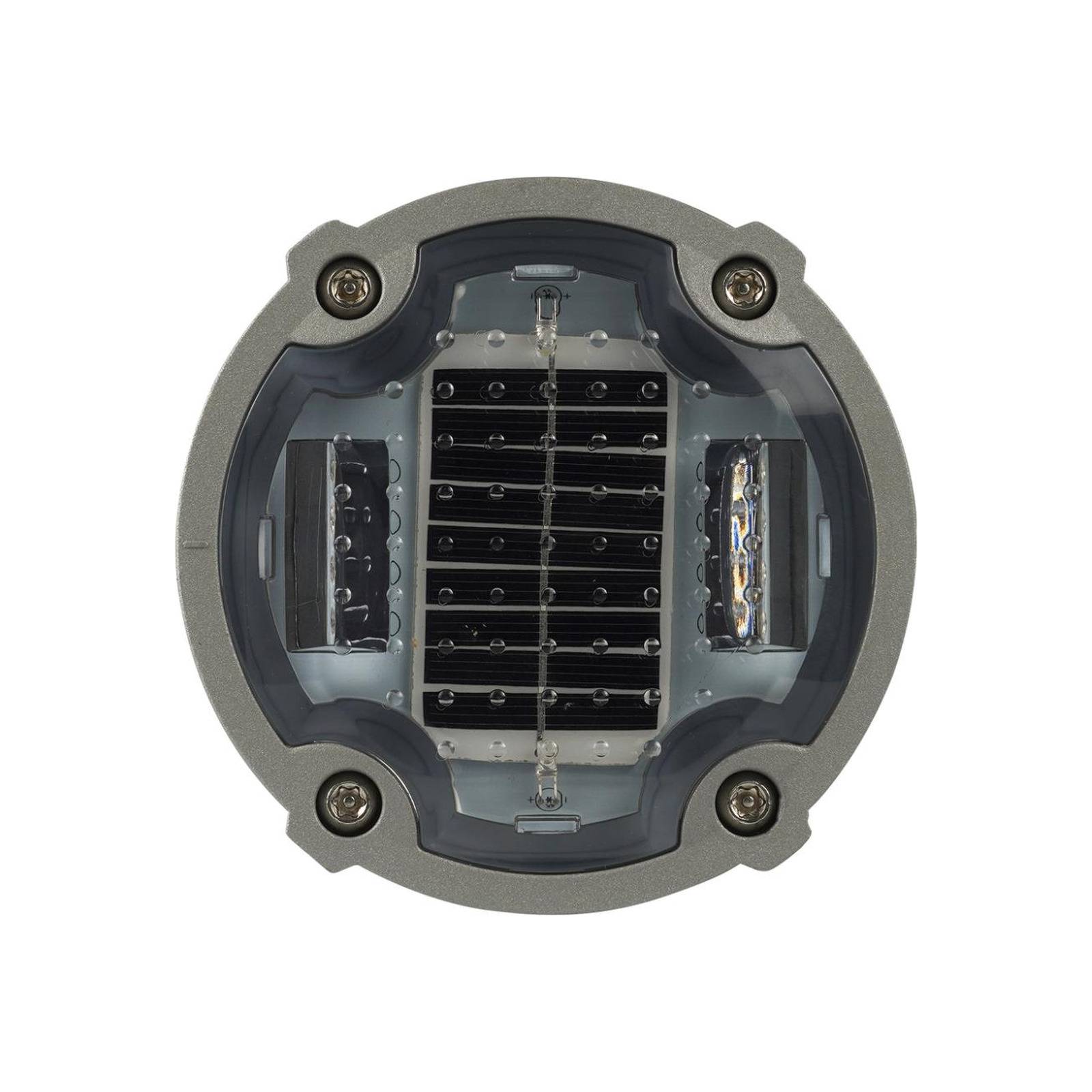

Ultra-Bright Solar Road Stud, 10-LED – HC-RS-02
2.5V/200 mA or 4.5V/120 mA mono panel · 10 ultra-bright LEDs · IP67 · ≈ 55 t static load · 775 g
- Model: HC-RS-02
- Product type: Embedded solar road stud
- LED quantity: 10 PCS ultra-bright
- Size: W123 × L123 × H48 mm / D123 × H48 mm
- Battery: 1.2V/1200 mAh Ni-MH or 3.2V/1200 mAh LiFePO4
- Working time: ≈ 200 h flashing · ≈ 100 h steady
- Ingress protection: IP67
- Static compression: ≈ 55 t
- Material: Die-cast aluminium + polycarbonate
- Weight: 775 g
HC-RS-02 is the higher-output marker in this family. Ten ultra-bright LEDs sit in the body instead of six, and the published compression figure rises to about 55 t while the unit stays at 775 g. It is available in a square W123 × L123 × H48 mm body or a D123 × H48 mm round body, both 48 mm high.
A full charge gives about 200 hours of flashing at 120 flashes per minute, or about 100 hours of steady light — longer than the six-LED version because the battery is paired to the larger LED count. The panel is a monocrystalline 2.5V/200 mA or 4.5V/120 mA unit and charges a 1.2V/1200 mAh Ni-MH or 3.2V/1200 mAh LiFePO4 battery. The housing is die-cast aluminium with a polycarbonate window, secured with four screws and four installation clips, and is rated IP67.
Use it where the marker has to be read at a distance or from a low angle — lane lines, crosswalks, fog-prone sections and the edges of unlit carriageways. Tell us the application, the quantity and the target market and we will confirm the configuration and a quotation.
At a glance
| Model | HC-RS-02 |
| Product type | Embedded solar road stud |
| Solar panel | Mono 2.5V/200 mA · 4.5V/120 mA |
| Battery | 1.2V/1200 mAh Ni-MH / 3.2V/1200 mAh LiFePO4 |
| LED colour | Yellow / white / red / blue / green |
| LED quantity | 10 PCS ultra-bright |
| Work mode | 120 flashes per minute or steady |
| Working time | Flashing ≈ 200 h · steady ≈ 100 h |
| Life span | Ni-MH 3–5 years / LiFePO4 5–7 years |
| Visual range | ≈ 500 m |
| Operating temperature | −20 °C to 80 °C |
| Ingress protection | IP67 |
| Compression test | Static ≈ 55 t |
| Material | Die-cast aluminium + PC, four screws, four installation clips |
| Size | W123 × L123 × H48 mm / D123 × H48 mm |
| Weight | 775 g |
| Carton | 44.5 × 29.5 × 25 cm, 24 pcs/ctn |
Ultra-Bright Solar Road Stud, 10-LED – HC-RS-02 — technical parameters
| Item | HC-RS-02 |
|---|---|
| Model | HC-RS-02 |
| Product type | Embedded solar road stud |
| Solar panel | Mono 2.5V/200 mA · 4.5V/120 mA |
| Power storage | 1.2V/1200 mAh Ni-MH · 3.2V/1200 mAh LiFePO4 |
| LED colour | Yellow / white / red / blue / green |
| LED quantity | 10 PCS ultra-bright |
| Work mode | 120 flashes per minute or steady |
| Working time | Flashing ≈ 200 h · steady ≈ 100 h |
| Life span | Ni-MH 3–5 years / LiFePO4 5–7 years |
| Visual range | ≈ 500 m |
| Operating temperature | −20 °C to 80 °C |
| Water resistance | IP67 |
| Compression test | Static ≈ 55 t |
| Material | Die-cast aluminium + polycarbonate PC, four screws for tightening, four installation clips |
| Size | W123 × L123 × H48 mm / D123 × H48 mm |
| Weight | 775 g |
| Carton size | 44.5 × 29.5 × 25 cm, 24 pcs/ctn |
Parameters are the supplier's published figures for the model listed. Tell us the application (lane marking, hazard warning, unlit road edge), the quantity and the target market and we will confirm the exact configuration and a quotation.
