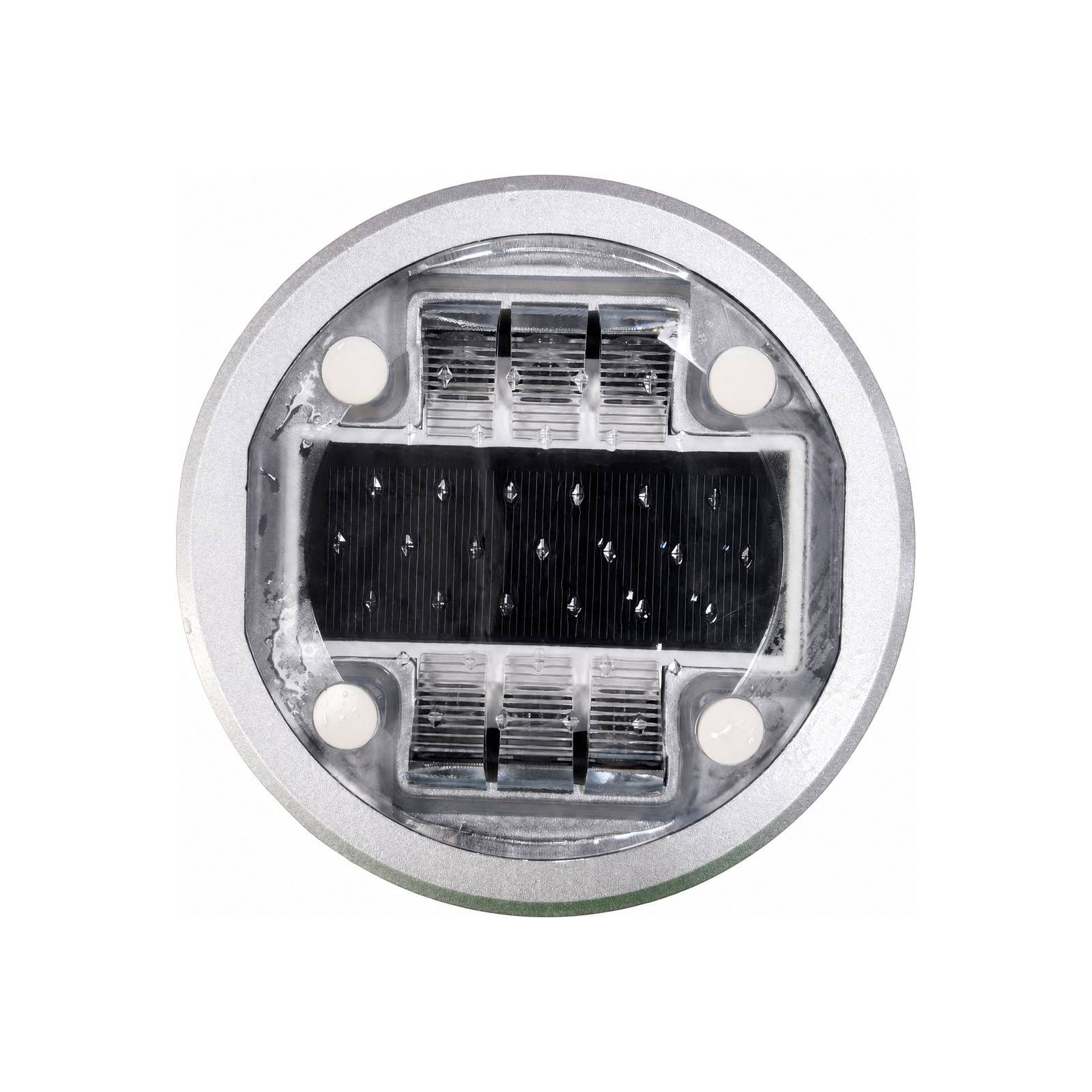

Double-Sided Solar Road Stud, 6-LED – HC-RS-03
2.5V/200 mA or 4.5V/120 mA mono panel · 6 ultra-bright LEDs, double-sided · IP68 · ≈ 35 t
- Model: HC-RS-03
- Product type: Embedded solar road stud
- LED quantity: 6 PCS ultra-bright, double-sided
- Size: D129 × H50 mm / D134 × H51.5 mm
- Battery: 1.2V/1200 mAh Ni-MH or 3.2V/1200 mAh LiFePO4
- Working time: ≈ 200 h flashing · ≈ 100 h steady
- Ingress protection: IP68
- Static compression: ≈ 35 t
- Material: Anti-UV PC + die-cast aluminium alloy
- Weight: 785 g / 810 g
HC-RS-03 is a double-sided marker: six ultra-bright LEDs are set in opposite faces so the stud is read from both directions of travel rather than from one. It is supplied in a D129 × H50 mm body or a slightly larger D134 × H51.5 mm body.
A full charge gives about 200 hours of flashing at 120 flashes per minute or about 100 hours of steady light, from a monocrystalline 2.5V/200 mA or 4.5V/120 mA panel and a 1.2V/1200 mAh Ni-MH or 3.2V/1200 mAh LiFePO4 battery. The housing combines an anti-UV polycarbonate window with a die-cast aluminium alloy body and is rated IP68, with a published static compression figure of about 35 t.
The two-sided arrangement suits centre lines, junction approaches and any layout where traffic passes the marker in both directions. Tell us the application, the quantity and the target market and we will confirm the configuration and a quotation.
At a glance
| Model | HC-RS-03 |
| Product type | Embedded solar road stud |
| Solar panel | Mono 2.5V/200 mA · 4.5V/120 mA |
| Battery | 1.2V/1200 mAh Ni-MH / 3.2V/1200 mAh LiFePO4 |
| LED colour | Yellow / white / red / blue / green |
| LED quantity | 6 PCS ultra-bright, double-sided |
| Work mode | 120 flashes per minute or steady |
| Working time | Flashing ≈ 200 h · steady ≈ 100 h |
| Life span | Ni-MH 3–5 years / LiFePO4 5–7 years |
| Visual range | Over 500 m |
| Operating temperature | −20 °C to 80 °C |
| Ingress protection | IP68 |
| Compression test | Static ≈ 35 t |
| Material | Anti-UV PC + die-cast aluminium alloy |
| Size | D129 × H50 mm / D134 × H51.5 mm |
| Weight | 785 g / 810 g |
| Carton | 44.5 × 29.5 × 25 cm, 24 pcs/ctn |
Double-Sided Solar Road Stud, 6-LED – HC-RS-03 — technical parameters
| Item | HC-RS-03 |
|---|---|
| Model | HC-RS-03 |
| Product type | Embedded solar road stud |
| Solar panel | Mono 2.5V/200 mA · 4.5V/120 mA |
| Power storage | 1.2V/1200 mAh Ni-MH · 3.2V/1200 mAh LiFePO4 |
| LED colour | Yellow / white / red / blue / green |
| LED quantity | 6 PCS ultra-bright, double-sided |
| Work mode | 120 flashes per minute or steady |
| Working time | Flashing ≈ 200 h · steady ≈ 100 h |
| Life span | Ni-MH 3–5 years / LiFePO4 5–7 years |
| Visual range | Over 500 m |
| Operating temperature | −20 °C to 80 °C |
| Water resistance | IP68 |
| Compression test | Static ≈ 35 t |
| Material | Anti-UV PC + die-cast aluminium alloy |
| Size | D129 × H50 mm / D134 × H51.5 mm |
| Weight | 785 g / 810 g |
| Carton size | 44.5 × 29.5 × 25 cm, 24 pcs/ctn |
Parameters are the supplier's published figures for the model listed. Tell us the application (lane marking, hazard warning, unlit road edge), the quantity and the target market and we will confirm the exact configuration and a quotation.
