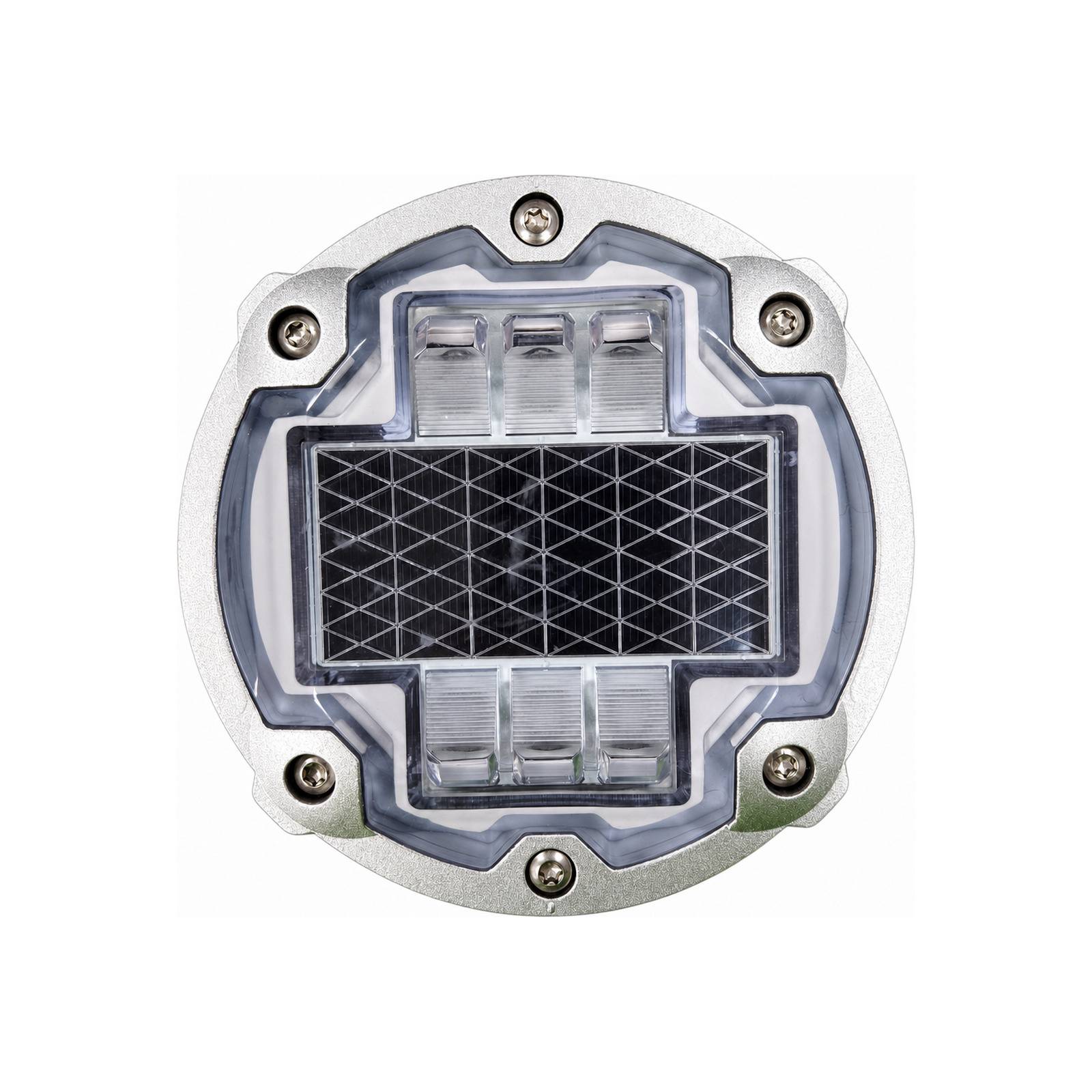

Large Solar Road Stud, 6-LED – HC-RS-05
2.5V/250 mA or 4.5V/250 mA mono panel · 6 ultra-bright LEDs · core IP68 · ≈ 60 t · 1015 g
- Model: HC-RS-05
- Product type: Embedded solar road stud
- LED quantity: 6 PCS ultra-bright
- Size: D143 × H47 mm
- Battery: 1.2V/1500 mAh Ni-MH or 3.2V/1500 mAh LiFePO4
- Working time: ≈ 200 h flashing · ≈ 100 h steady
- Ingress protection: Core IP68
- Static compression: ≈ 60 t
- Weight: 1015 g
- Security lock: Six stainless steel screws
HC-RS-05 is the largest marker in the range: a D143 mm body, 47 mm high and 1015 g, with a monocrystalline panel rated 2.5V/250 mA or 4.5V/250 mA feeding a 1.2V/1500 mAh Ni-MH or 3.2V/1500 mAh LiFePO4 battery. Six ultra-bright LEDs are set into the body.
The larger cell and battery give about 200 hours of flashing at 120 flashes per minute or about 100 hours of steady light per full charge, and the published static compression figure is about 60 t — the highest in the family. The core is rated IP68 and is held by six stainless steel screws, so it can be lifted out and replaced without removing the body from the road.
It suits heavy-traffic carriageways, junctions and crossings where the marker has to survive repeated axle loads and still be clearly visible. Tell us the application, the quantity and the target market and we will confirm the configuration and a quotation.
At a glance
| Model | HC-RS-05 |
| Product type | Embedded solar road stud |
| Solar panel | Mono 2.5V/250 mA · 4.5V/250 mA |
| Battery | 1.2V/1500 mAh Ni-MH / 3.2V/1500 mAh LiFePO4 |
| LED colour | Yellow / white / red / blue / green |
| LED quantity | 6 PCS ultra-bright |
| Work mode | 120 flashes per minute or steady |
| Working time | Steady ≈ 100 h · flashing ≈ 200 h |
| Life span | Ni-MH 3–5 years / LiFePO4 5–7 years |
| Security lock | Secured with six stainless steel screws |
| Operating temperature | −20 °C to 80 °C |
| Ingress protection | Core IP68 |
| Compression test | Static ≈ 60 t |
| Material | Die-cast aluminium + polycarbonate PC |
| Size | D143 × H47 mm |
| Weight | 1015 g |
| Carton | 46 × 31 × 19 cm, 18 pcs/ctn |
Large Solar Road Stud, 6-LED – HC-RS-05 — technical parameters
| Item | HC-RS-05 |
|---|---|
| Model | HC-RS-05 |
| Product type | Embedded solar road stud |
| Solar panel | Mono 2.5V/250 mA · 4.5V/250 mA |
| Power storage | 1.2V/1500 mAh Ni-MH · 3.2V/1500 mAh LiFePO4 |
| LED colour | Yellow / white / red / blue / green |
| LED quantity | 6 PCS ultra-bright |
| Work mode | 120 flashes per minute or steady |
| Working time | Steady ≈ 100 h · flashing ≈ 200 h |
| Life span | Ni-MH 3–5 years / LiFePO4 5–7 years |
| Security lock | Secured with six stainless steel screws |
| Operating temperature | −20 °C to 80 °C |
| Water resistance | Core IP68 |
| Compression test | Static ≈ 60 t |
| Material | Die-cast aluminium + polycarbonate PC |
| Size | D143 × H47 mm |
| Weight | 1015 g |
| Carton size | 46 × 31 × 19 cm, 18 pcs/ctn |
Parameters are the supplier's published figures for the model listed. Tell us the application (lane marking, hazard warning, unlit road edge), the quantity and the target market and we will confirm the exact configuration and a quotation.
