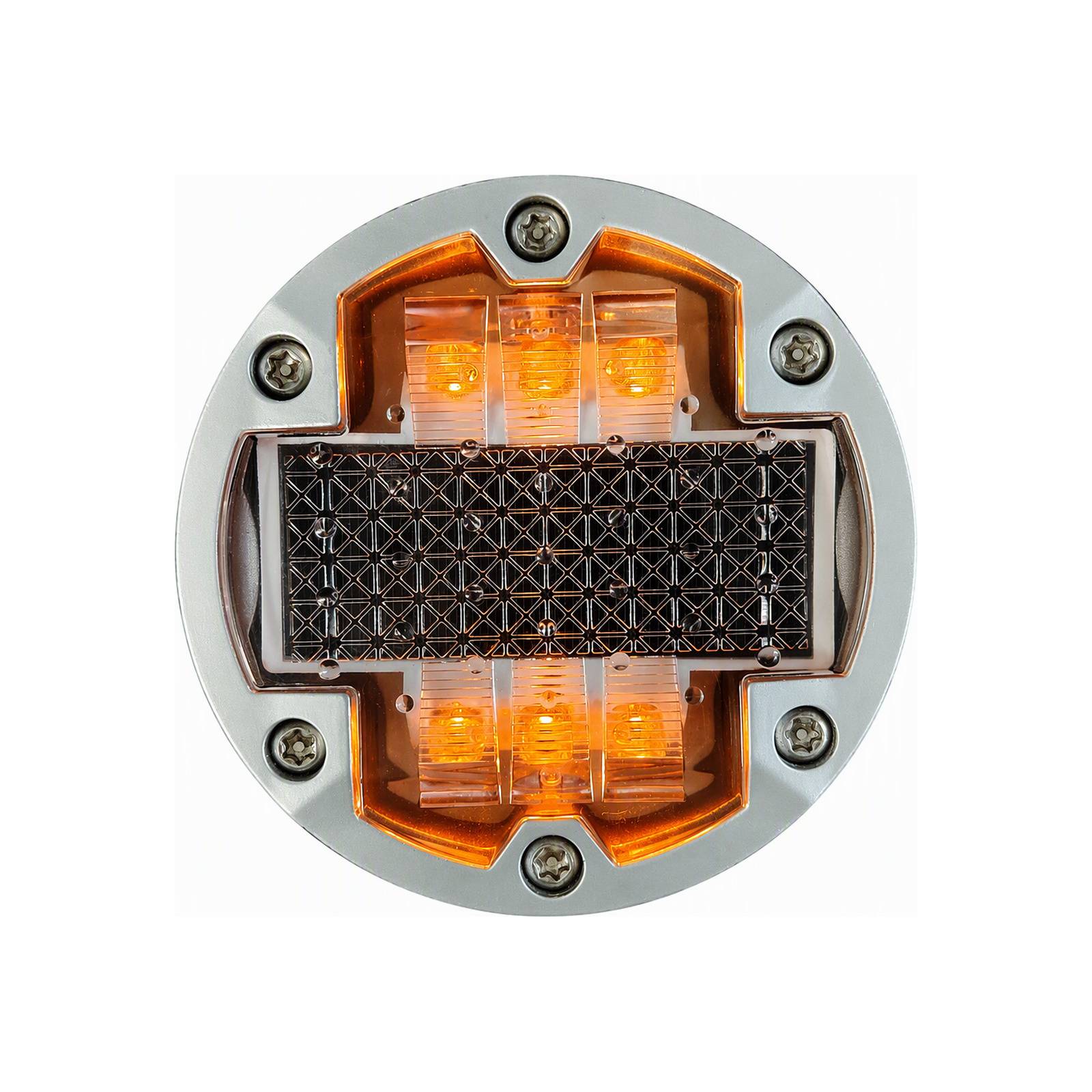

Embedded Solar Road Stud, 6-LED – HC-RS-01
2.5V/200 mA or 4.5V/120 mA mono panel · 6 LEDs on four sides · IP68 · ≈ 50 t static load · 710 g
- Model: HC-RS-01
- Product type: Embedded solar road stud
- LED quantity: 6 PCS, four sides
- Size: D123 × H48 mm
- Battery: 1.2V/1300 mAh Ni-MH or 3.2V/1300 mAh LiFePO4
- Working time: ≈ 150 h flashing · ≈ 90 h steady
- Ingress protection: IP68
- Static compression: ≈ 50 t
- Material: Die-cast aluminium + polycarbonate
- Weight: 710 g
HC-RS-01 is an embedded solar road stud: a marker that sits flush with the road surface and charges from its own monocrystalline panel during daylight. The panel is rated 2.5V/200 mA or 4.5V/120 mA depending on the cell option, and it charges either a 1.2V/1300 mAh high-temperature Ni-MH battery or a 3.2V/1300 mAh LiFePO4 battery.
Six LEDs are arranged on four sides of the D123 × H48 mm body, so the marker reads from more than one approach angle. A full charge gives about 150 hours of flashing at 120 flashes per minute, or about 90 hours of steady light. The housing is die-cast aluminium with a polycarbonate window and is rated IP68, with a published static compression figure of about 50 t.
Because the unit is embedded rather than surface-mounted it stays clear of ploughs and sweepers and does not stand proud of the carriageway. The inner core can be replaced on site, so a depleted battery does not mean replacing the whole marker. Yellow, white, red, blue and green versions are available. Tell us the application, the quantity and the target market and we will confirm the configuration and a quotation.
At a glance
| Model | HC-RS-01 |
| Product type | Embedded solar road stud |
| Solar panel | Mono 2.5V/200 mA · 4.5V/120 mA |
| Battery | 1.2V/1300 mAh Ni-MH / 3.2V/1300 mAh LiFePO4 |
| LED colour | Yellow / white / red / blue / green |
| LED quantity | 6 PCS on four sides |
| Work mode | 120 flashes per minute or steady |
| Working time | Flashing ≈ 150 h · steady ≈ 90 h |
| Life span | Ni-MH 3–5 years / LiFePO4 5–7 years |
| Visual range | ≈ 500 m |
| Operating temperature | −20 °C to 80 °C |
| Ingress protection | IP68 |
| Compression test | Static ≈ 50 t |
| Material | Die-cast aluminium housing + PC |
| Size | D123 × H48 mm |
| Weight | 710 g |
| Carton | 44.5 × 29.5 × 25 cm, 24 pcs/ctn |
Embedded Solar Road Stud, 6-LED – HC-RS-01 — technical parameters
| Item | HC-RS-01 |
|---|---|
| Model | HC-RS-01 |
| Product type | Embedded solar road stud |
| Solar panel | Mono 2.5V/200 mA · 4.5V/120 mA |
| Power storage | 1.2V/1300 mAh Ni-MH · 3.2V/1300 mAh LiFePO4 |
| LED colour | Yellow / white / red / blue / green |
| LED quantity | 6 PCS, four sides |
| Work mode | 120 flashes per minute or steady |
| Working time | Flashing ≈ 150 h · steady ≈ 90 h |
| Life span | Ni-MH 3–5 years / LiFePO4 5–7 years |
| Visual range | ≈ 500 m |
| Operating temperature | −20 °C to 80 °C |
| Water resistance | IP68 |
| Compression test | Static ≈ 50 t |
| Material | Die-cast aluminium housing + PC |
| Size | D123 × H48 mm |
| Weight | 710 g |
| Carton size | 44.5 × 29.5 × 25 cm, 24 pcs/ctn |
Parameters are the supplier's published figures for the model listed. Tell us the application (lane marking, hazard warning, unlit road edge), the quantity and the target market and we will confirm the exact configuration and a quotation.
